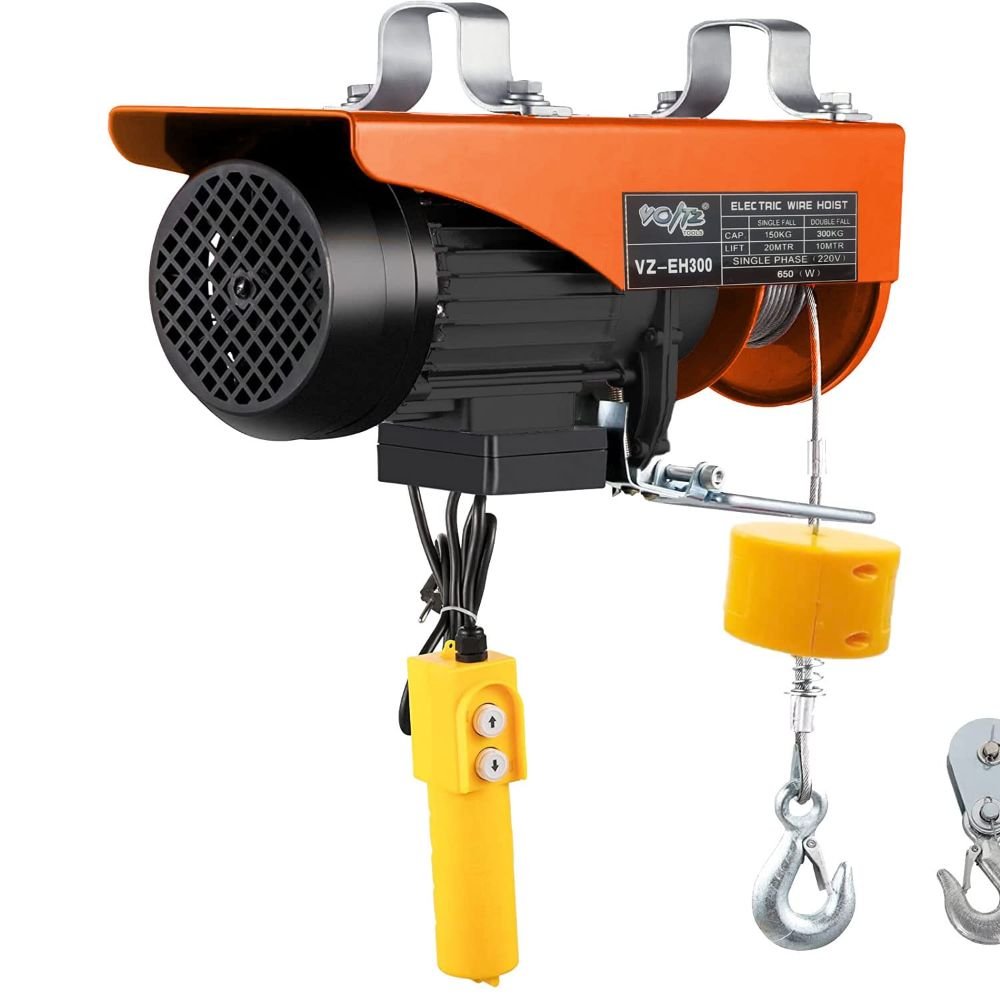

VOLTZ VZ-EH300 Mini Electric Hoist with 12 Meter Wire Rope (300 Kg Capacity)

The VOLTZ VZ-EH300 Mini Electric Hoist is a compact, efficient, and reliable lifting solution designed for light-duty applications. Built for convenience, safety, and durability, this electric hoist is perfect for small workshops, garages, repair facilities, and domestic projects where moderate lifting strength is required.With a maximum load capacity of 300 kg, a high-efficiency 650W copper motor, and a 12-meter zinc-plated steel wire rope, the VOLTZ VZ-EH300 provides dependable performance for a wide range of material handling operations. Engineered with attention to detail, this hoist combines functionality, safety, and durability in one user-friendly package.

---

Product Overview

The VOLTZ VZ-EH300 Mini Electric Hoist is designed for users who need a lightweight, powerful, and easy-to-operate lifting device for smaller-scale applications. Ideal for lifting engines, equipment, tools, building materials, and various other items, it allows smooth and effortless operation without manual strain.This hoist operates on single-phase 220/230V power, making it suitable for use in homes, small workshops, and commercial settings. The limit switch mechanism and anti-rotate wire rope ensure maximum safety and reliability during use, while the wired remote control allows operation from a safe distance.

---

Performance and Lifting Capacity

The VOLTZ VZ-EH300 provides two operational configurations for flexible use — single-line and double-line lifting:

• In single-line mode, the hoist can lift up to 150 kg at a lifting speed of approximately 10 meters per minute (32.8 ft/min) with a maximum height of 12 meters (39.4 ft).

• In double-line mode, it offers a 300 kg lifting capacity with a speed of 5 meters per minute (16.4 ft/min) and a maximum height of 6 meters (19.6 ft).

This dual functionality ensures the user can adapt the hoist to different tasks — from fast, lighter lifting to slower, heavier operations — depending on the requirement.

---

Durable Zinc-Plated Anti-Rotate Steel Wire Rope

The hoist is equipped with a 12-meter-long braided steel wire rope featuring a 3 mm diameter. This wire rope is zinc-plated for corrosion resistance and built with anti-rotation properties, providing greater stability and control during lifting operations.The high-carbon steel construction of the wire ensures durability, while the manganese steel hooks offer superior strength and hardness, ensuring the safe and secure handling of loads. Two lifting lugs are provided for easy installation and balanced operationhigh-carbon steel construction of the wire ensures durability, while the manganese steel hooks offer superior strength and hardness, ensuring the safe and secure handling of loads. Two lifting lugs are provided for easy installation and balanced operation

---

High-Efficiency Copper Motor

The VOLTZ VZ-EH300 is powered by a 650W full copper motor, encased in a durable cast iron and aluminum housing. This motor delivers strong torque, stable operation, and long service life, even with repeated use.The copper winding ensures high electrical efficiency with minimal power loss, while the built-in radiator fan enhances cooling and reduces the risk of overheating during prolonged operation. The result is a quiet, smooth, and energy-efficient lifting experience that you can rely on for years..

Limit Switch for Safety

Safety is a key feature of the VOLTZ VZ-EH300. The built-in limit switch automatically stops the motor once the maximum lifting or lowering point is reached, preventing overextension and potential equipment damage. This function not only enhances the safety of the operator but also ensures a longer lifespan for the motor and wire rope.

Remote-Controlled Operation

For convenient and safe operation, the hoist includes a wired remote control with a 1.45-meter (4.8 ft) control cord. The remote features a simple handle-switch mechanism that allows precise control — pressing upward raises the load, while pressing downward lowers it smoothly.The design allows the user to control the hoist from a secure distance, minimizing physical strain and maximizing safety during operation.

Compact, Lightweight, and Easy to Install

Weighing approximately 12.11 kg, the VOLTZ VZ-EH300 is lightweight and easy to install. The design allows it to be mounted directly onto solid metal beams or reinforced wooden structures using the provided lugs. The compact size ensures that it can fit in tight spaces, making it ideal for small job works, repair setups, and garages.Installation is quick and straightforward — simply hang, connect the power, and start lifting. Its portability also makes it suitable for use across multiple locations when needed.

?Buiilt for safety

Every VOLTZ hoist is designed with safety in mind. The VZ-EH300 includes:

• Automatic braking system to hold loads securely in place during power interruption.

• Limit switch protection to prevent over-lifting or over-lowering.

• Anti-rotation steel cable for improved load balance and control.

• Durable hooks with safety latches for secure attachment and load handling.

Together, these safety elements ensure peace of mind for the operator and reduce the risk of accidents or mechanical failure.

Why Choose VOLTZ VZ-EH300 Mini Electric Hoist?

• Compact and portable design for ease of use

• Reliable 650W copper motor with efficient cooling

• Smooth and safe lifting performance

• Durable zinc-plated anti-rotate steel wire rope

• Dual-line lifting capability for flexibility

• Built-in safety mechanisms for peace of mind

• Ideal for small workshops, domestic projects, and light-duty lifting

The VOLTZ VZ-EH300 Mini Electric Hoist delivers exceptional value, performance, and safety for all your light-duty lifting needs. With its robust design, smooth operation, and trusted VOLTZ engineering, it’s the perfect solution for anyone looking for a compact yet powerful electric hoist for everyday applications.
