VOLTZ VZ-EH 300X20mtrs copper Winding Mini Electric Hoist for Small Job Works and Domestic Use

VOLTZ VZ-EH300 Mini Electric Hoist (Single Phase, 20 m Wire Rope)

The VOLTZ VZ-EH300 Mini Electric Hoist is a compact, light-duty lifting solution designed to provide efficient, safe, and reliable performance for day-to-day material handling tasks. Built with premium components and precision engineering, this hoist offers a perfect balance of power, durability, and convenience — ideal for workshops, garages, warehouses, and small industrial settings.

With a maximum load capacity of 300 kg, a full copper motor, and a 20-meter anti-rotate steel wire rope, the VZ-EH300 ensures smooth lifting for various applications such as tools, construction materials, machinery parts, and more.

Product Overview

The VOLTZ VZ-EH300 Mini Electric Hoist is engineered for users who require an easy-to-use, dependable hoisting device for light-duty lifting operations. Whether it’s lifting equipment, hardware, machine components, or small construction materials, this electric hoist provides steady and secure performance in compact work environments.

Its wired remote control operation allows you to manage lifting and lowering from a safe distance — eliminating the need to climb or handle heavy loads manually. Designed for quick installation and simple operation, the VZ-EH300 delivers industrial-grade efficiency in a small package.

High Load Capacity and Dual Operation Modes

The VOLTZ VZ-EH300 features dual-line operation, providing flexibility for different lifting requirements:

• Single-Line Mode:
  Capacity – 150 kg | Speed – 10 m/min (32.8 ft/min) | Lifting Height – 20 m (65.6 ft)

• Double-Line Mode:
  Capacity – 300 kg | Speed – 5 m/min (16.4 ft/min) | Lifting Height – 10 m (32.8 ft)

This dual configuration makes it versatile enough for both domestic workshops and light industrial environments, giving you the right balance between lifting height and load strength.

Efficient 650W Copper Motor

Powered by a high-performance 650W pure copper motor, the VZ-EH300 delivers consistent torque and efficient lifting power. The copper winding ensures low heat generation, superior conductivity, and long-lasting durability.

Its integrated cooling fan and ventilated design allow continuous operation without overheating, ensuring dependable performance during extended usage.

Strong and Durable Construction

Crafted with high-strength steel and aluminum alloy housing, the VOLTZ VZ-EH300 offers excellent resistance to corrosion, rust, and wear.

The 3 mm zinc-plated steel wire rope is braided and anti-rotate, ensuring stability and safety during lifting operations. Both hooks are made of high-grade Mn-steel, providing outstanding load-bearing strength and security.

The compact design makes it ideal for installation in workshops, warehouses, and garages with limited space, while maintaining a solid build for long-term reliability.

Easy Installation

Installation of the VOLTZ VZ-EH300 is simple and user-friendly. It can be easily mounted onto metal beams or sturdy wooden supports using the provided fixing rings.

Once installed, just plug it into a standard 220/230V outlet, attach the wired remote, and you’re ready to lift with confidence. The design prioritizes efficiency, safety, and convenience, making setup quick and effortless.

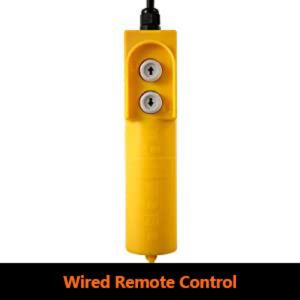

Remote-Controlled Operation

Equipped with a wired remote control featuring a 1.45-meter (4.8 ft) cable, this hoist allows safe and convenient operation from a distance.
The remote features intuitive up and down buttons for smooth control, minimizing the need for manual handling and reducing the risk of workplace injuries.

Safety and Reliability

The VOLTZ VZ-EH300 is built with multiple safety systems to ensure secure and reliable lifting:

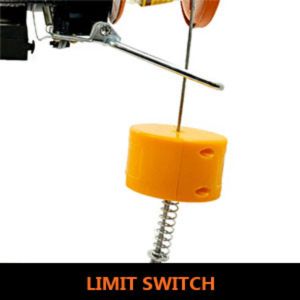

• Limit Switch: Automatically halts operation when maximum lifting height is reached, preventing cable overrun or damage.

• Load-Holding Brake System: Keeps the load securely in position even in the event of a power failure.

• Anti-Rotation Steel Wire Rope: Ensures stable lifting without twisting or swaying.

• Heavy-Duty Steel Hooks: Equipped with safety latches for secure attachment and load retention.

Together, these features ensure smooth, controlled, and safe operation for every lift.

Versatile Applications

The VOLTZ VZ-EH300 Mini Electric Hoist is perfect for a wide range of applications, including:

• Workshops and garages for engine or tool lifting

• Warehouses for material handling

• Construction sites for small equipment

• Farms and storage units for moving heavy objects

• Home repairs, DIY setups, and mechanical maintenance

This versatile hoist saves time, effort, and manpower, allowing you to lift with ease and precision.

Key Advantages

• High Load Capacity: 300 kg (double-line) or 150 kg (single-line) for flexible use

• Durable Design: Heavy-duty alloy housing and corrosion-resistant wire rope

• Efficient Motor: 650W copper motor for long-lasting, consistent power

• Quick Installation: Simple to mount and easy to operate

• Remote Control Operation: Safe and user-friendly design

• Built-in Safety Systems: Limit switch and automatic brake for enhanced protection

Why Choose VOLTZ VZ-EH300 Mini Electric Hoist?

• Compact, lightweight, and easy to install

• Reliable copper motor for long-term performance

• Dual-line operation for flexible lifting needs

• Enhanced safety with automatic brake and limit stop

• Ideal for domestic, garage, and light industrial applications
