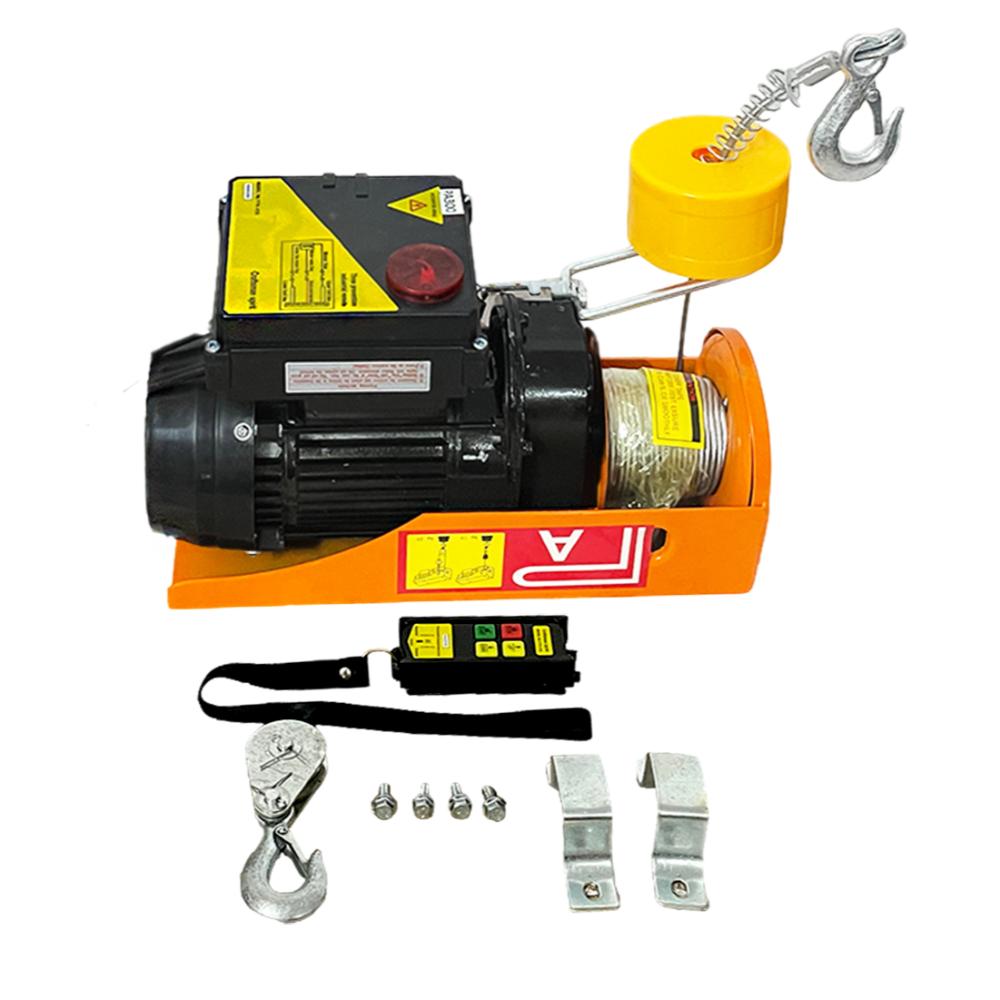

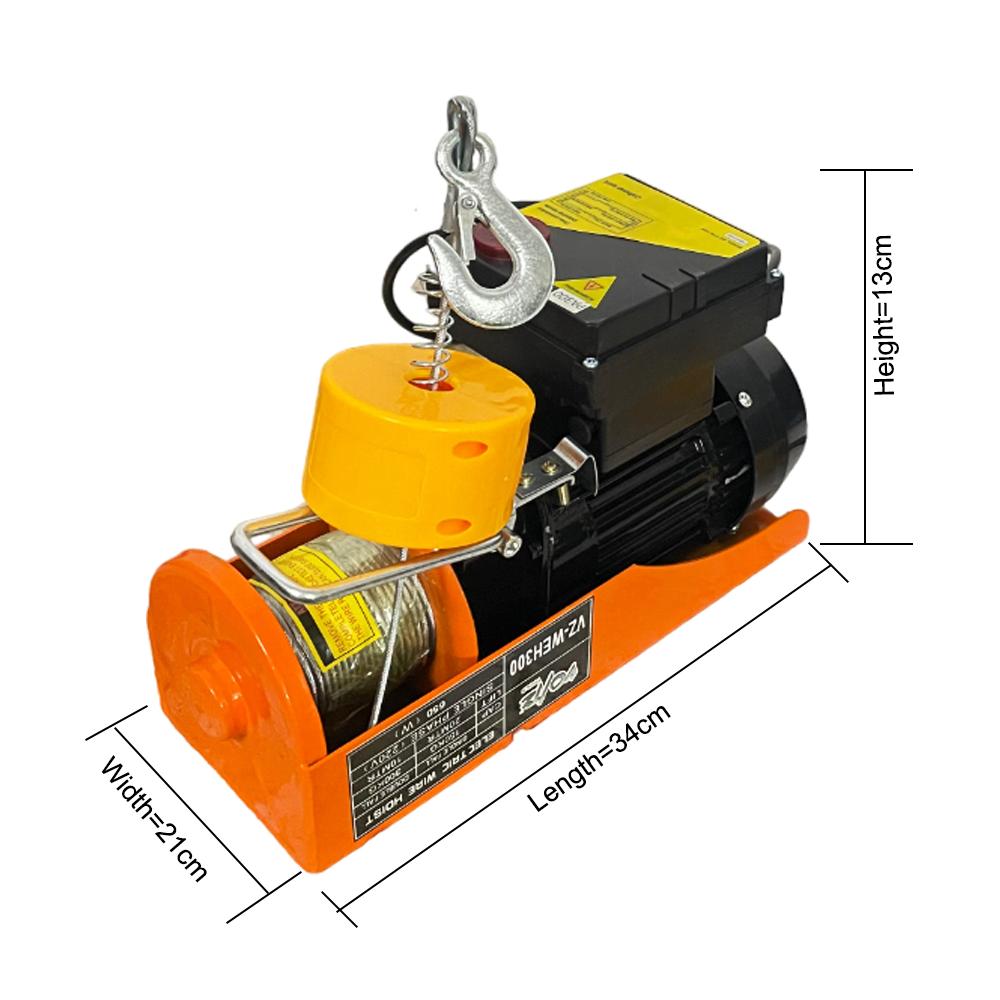

VOLTZ VZ-WEH 300X20mtrs copper Winding Wireless Mini Electric Hoist for Small Job Works and Domestic Use

VOLTZ VZ-WEH300 with 20mtr wire rope Wireless Mini electric hoist Single phase

SPECIFICATIONS :-

1. Electric hoist Capacity - 300kg

2. Wire rope length - 20mtr

3. Wire rope dia - 3mm

4. Lifting speed - 5mtr/min

5. Input power - 650W

6. Aprox weight - 10.5kg

7. Limit switch - Included

8. Wireless Remote - Included

9. Wireless remote range - 30mtr

10. Wire Remote - Included

11. Voltage - 220/230v

12. Light duty hoist . Strictly forbidden to carry people . Please Note : The product is to be used at the sole discretion of the buyer . Seller assumes no reponsibility or any liability arising out of using the product.

FEATURES :

1. Single Line & Double Line :- It features single line and double line systems. Single line capacity: 150 kg, single line speed: 10 m/min(32.8 ft/min); single line height: 20 m/65.6ft. Double line capacity: 300 kg, double line speed: 5 m/min(16.4 ft/min); double line height: 10 m/32.8ft.

2. Zinc-Plated Anti-Rotate :-The hoist is easy to install with two lifting lugs. Compared with normal steel wire ropes, our braided high carbon steel line is anti-rotate, ensuring safe operation. It is Zinc-plated and unbreakable. Steel line length: 20 m/65.6 ft. Steel line diameter: 3 mm. Hooks are made of Mn-steel for strength and hardness.

3. Highly Efficient Motor :- Power: 650W. Adopting full copper motors covered by cast iron and aluminum housing, the winch features high efficiency and low noise. Equipped with a radiator fan, the electric winch can continuously work for a long time.

4. Limit Switch :- The Limit switch is installed to keep regular running when the weights are lifted on and off, to make the motor stop automatically to prohibit the chains from exceeding for safety.

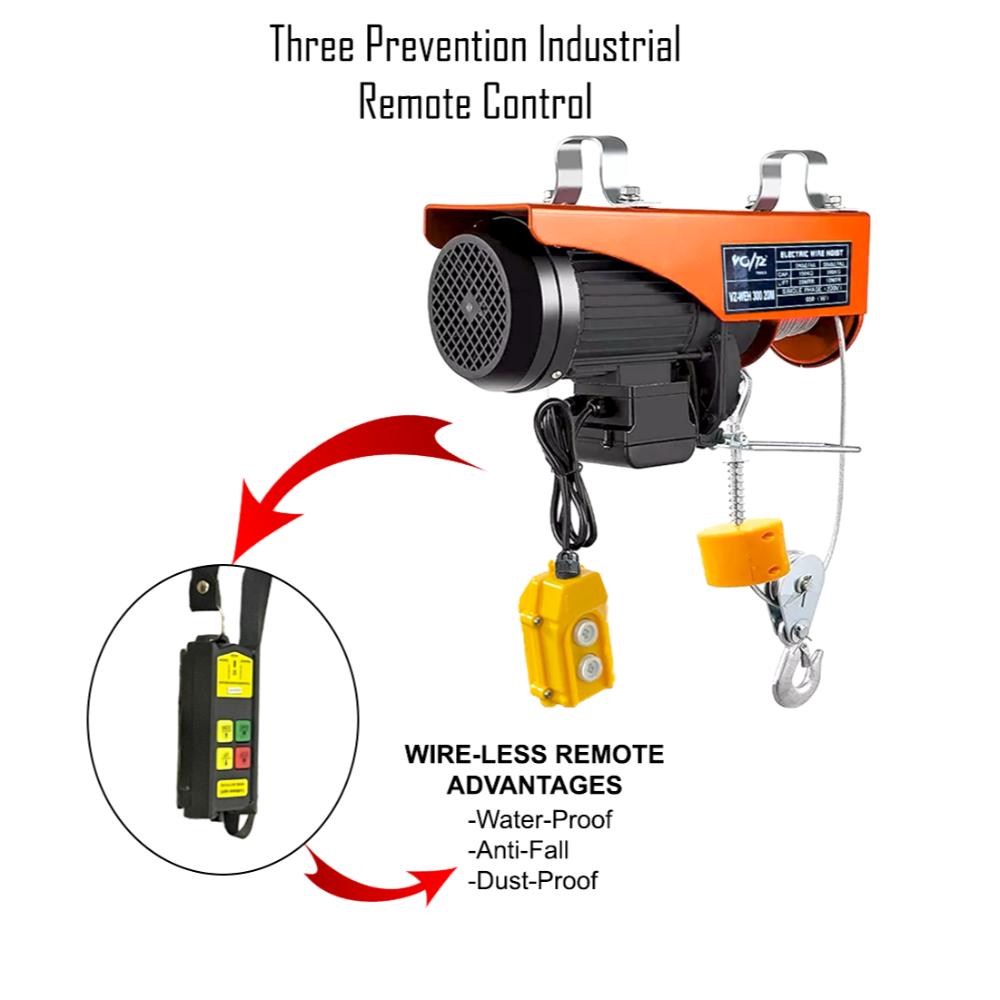

5. Wired Remote Control :- The wired remote control achieves through a handle switch. The pressing upside is going up, conversely going down. Around 1.45 m/4.8 ft length cable allows you to operate from a safe distance.

6. Wide Application :- The electric lift hoist is an ideal material handling tool for repair factories, mines, docks, warehouses, construction sites, etc., for the installation of machinery, lifting goods, equipment maintenance.

VOLTZ VZ-WEH 300kg Wireless Mini Electric Hoist Crane

Here is a listing about the electric cable hoist. It is designed for lifting and moving heavy-duty applications. Steel construction and full copper motor make it durable and high-efficient. The hoist can be used with a single line (150kg) or double lines with two hooks(300kg). It is an ideal material handling tool for factories, mines, docks, warehouses, goods lifting, construction sites, and other places.

PLEASE NOTE:- These are single phase mini electric hoist which are only meant for small jobs works and are not meant for heavy job works. These Mini hoist are strictly Not recomendable for lifting humans. The product is to be used at the sole discretion of the buyer.

Legal Disclaimer:

Light duty hoist . Strictly forbidden to carry people . Please Note : The product is to be used at the sole discretion of the buyer . Seller assumes no reponsibility or any liability arising out of using the product.
