VOLTZ VZ-RCH-60100 Hydra Hole Cylinder Jack with CP 700A Hydraulic Pump Single Actinulic Hollowg Ram 100mm Lifting Hydraulic Cylinder Jack Solid with Hand Pump 60 TON (4inch)

VOLTZ VZ-RCH-60100 Hydra Hole Cylinder Jack with CP 700A Hydraulic Pump Single Actinulic Hollowg Ram 100mm Lifting Hydraulic Cylinder Jack Solid with Hand Pump 60 TON (4inch)

We offer you a high-quality hydraulic cylinder jack. Made of solid metal construction, it is heavy-duty and durable. Max capacity up to 60 T, stroke up to 100mm. No stuck when lifting. Easy connecting head with dust cover, preventing the dust in. Portable handle on the body for easy moving and storage. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, bridges, machinery, and other industries.

Specifications:

1. Capacity: 60Ton

2. Ram stroke: 100mm/4in

3. Self Height:

4. Outside Diameter:

5. Inner Diameter:

6. Hole Diameter –

7. Item Weight:

8. Total height - 38kg

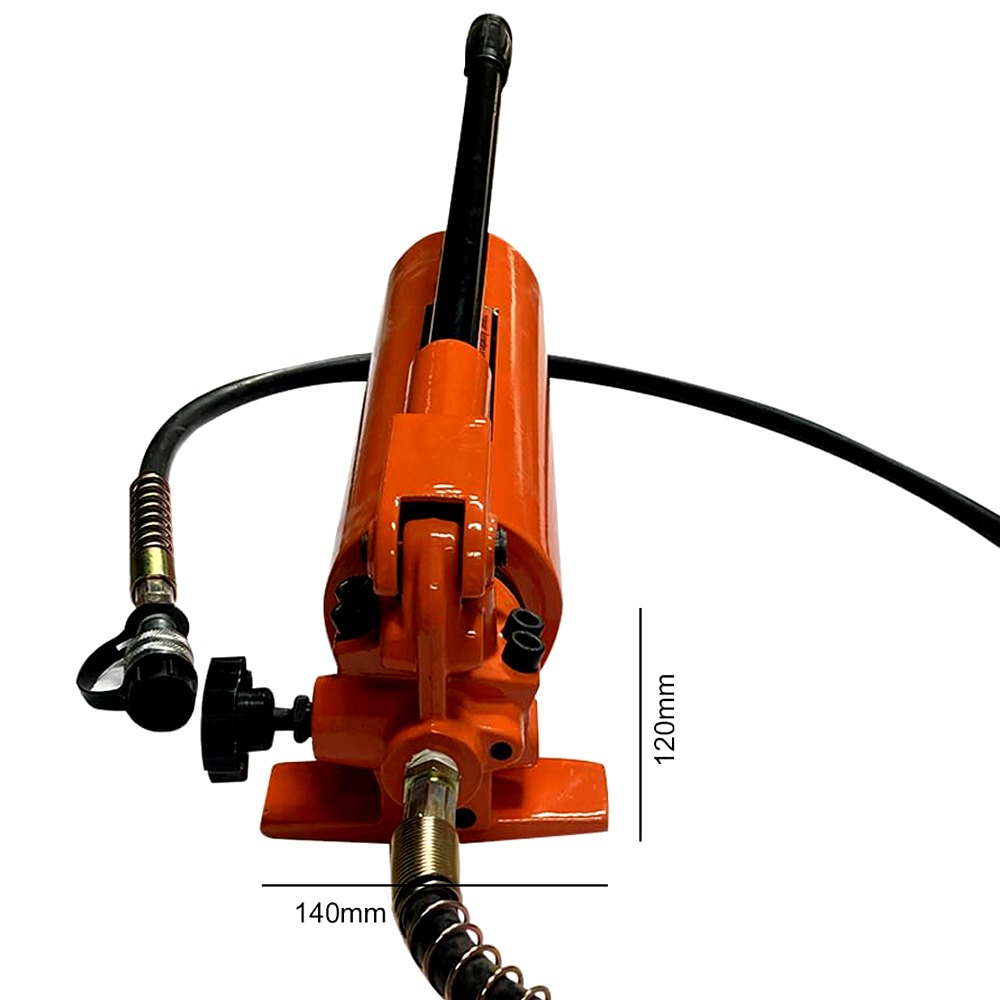

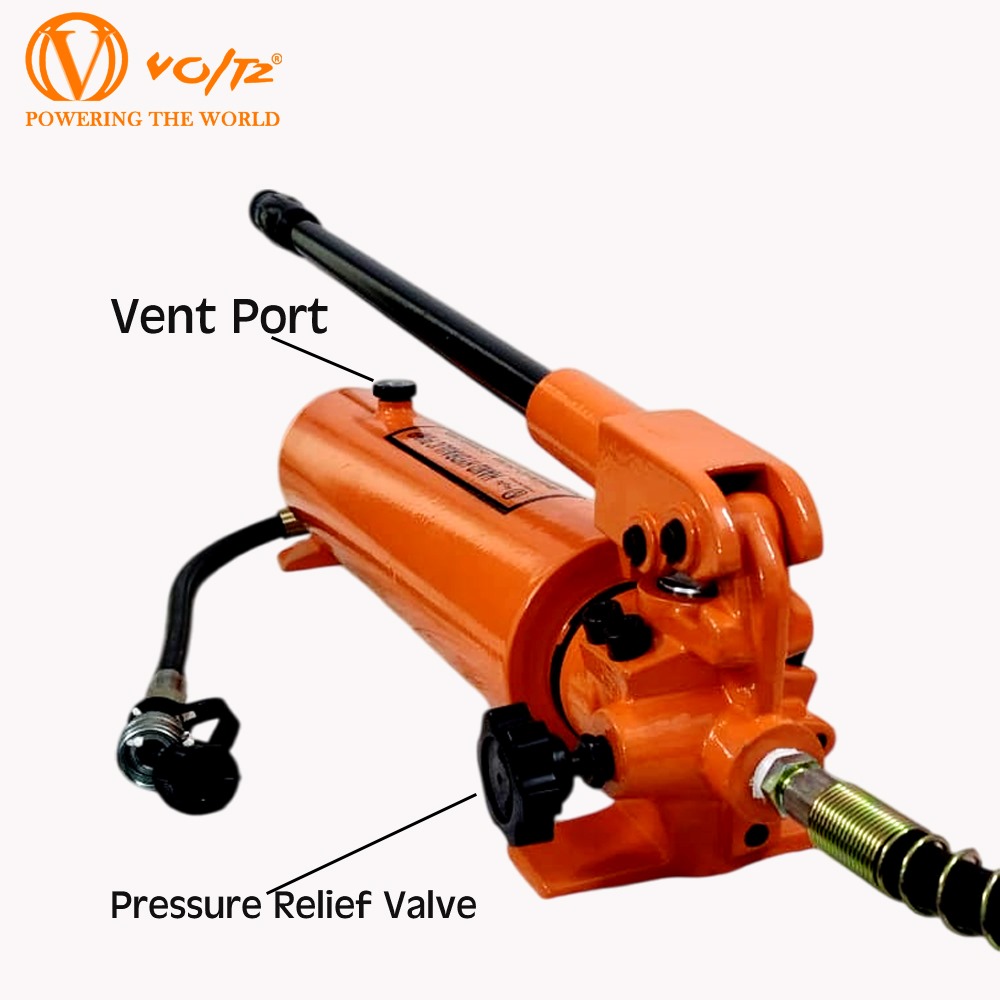

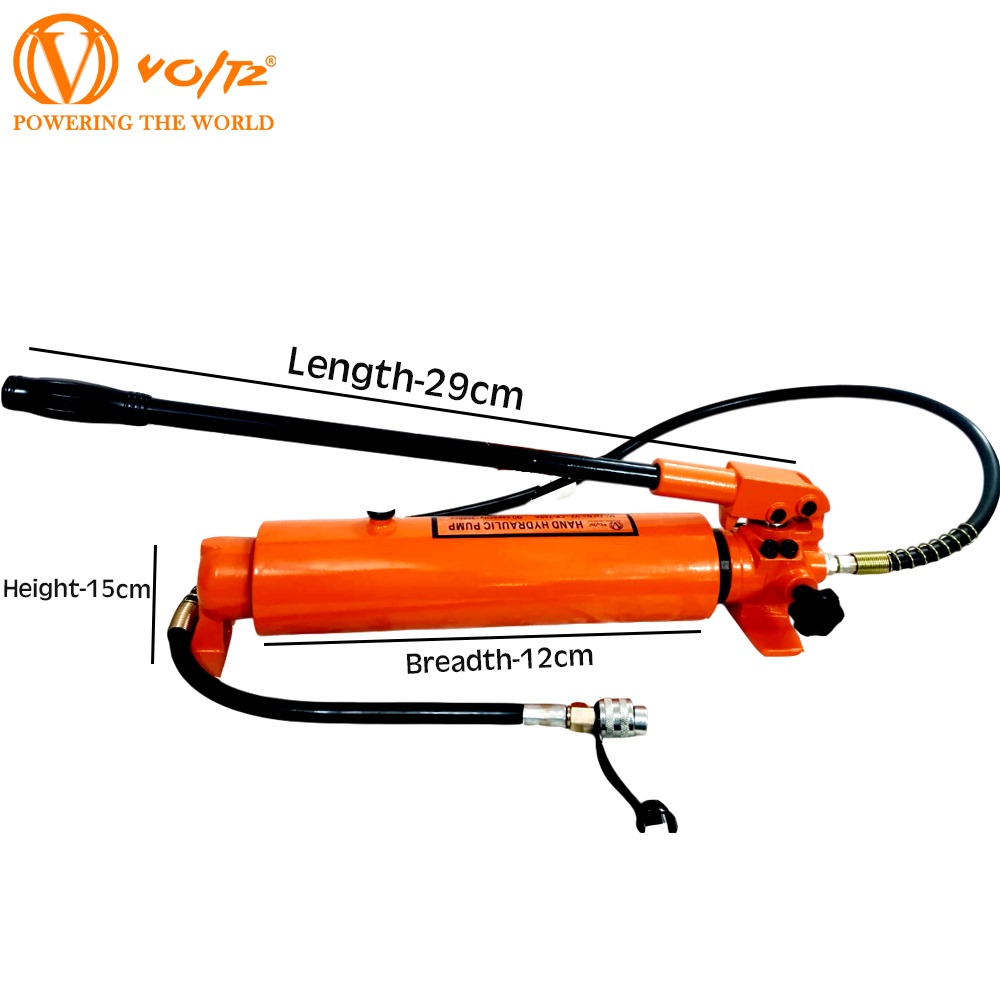

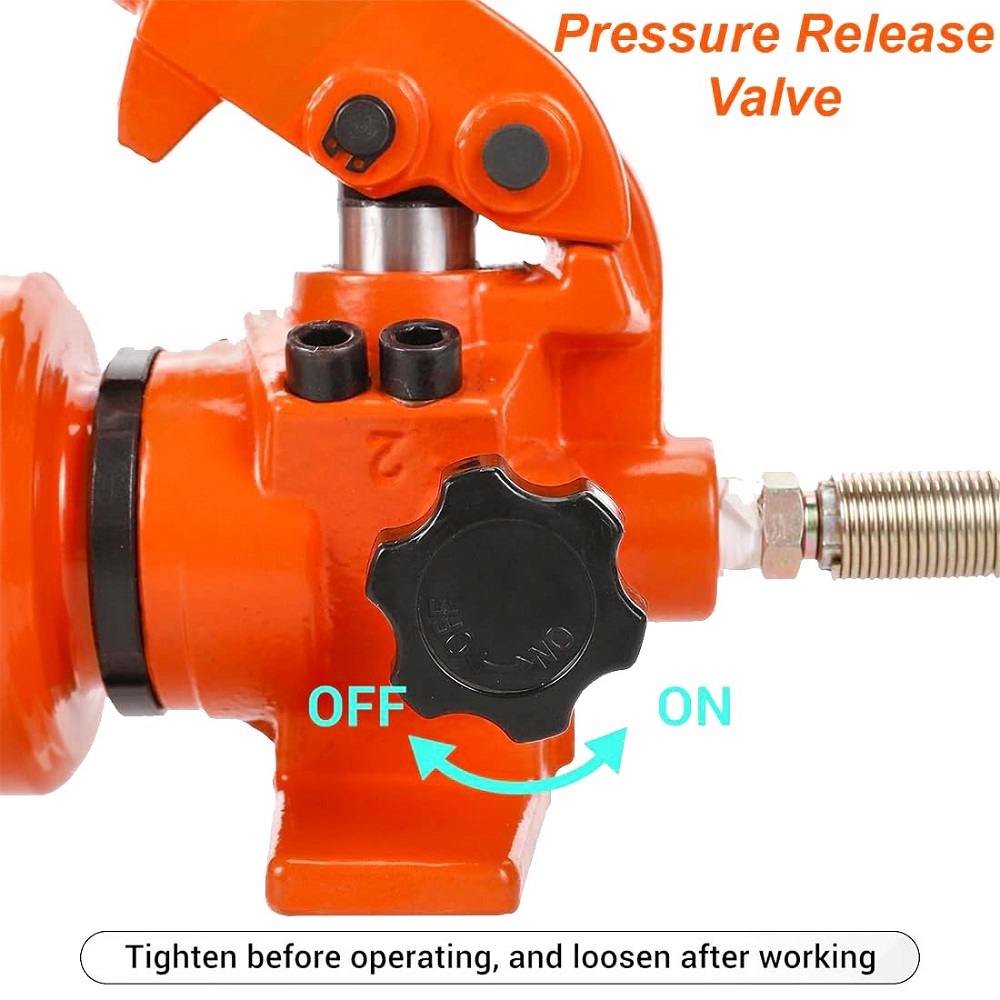

9. Matching pump: CP-700A,  Description of the Pump :- The CP-700A manual hydraulic pump is a hydraulic pump that converts manual mechanical energy into hydraulic pressure energy. The pedal and spring return mechanism can be added to the pump and becomes a foot operation. In the case of matching cylinders and special tools, several operations such as lifting, bending, straightening, shearing, riveting, assembling, disassembly and some constructions can be performed. The main characteristics of the pump are: manual, high pressure, ultra small, easy to transport, easy to operate and with a wide range of applications.

Pump Technical Data :- Model: CP-700A

1.High pressure pressure: 700kg /

2. Low pressure pressure: 20kg /

3. Oil storage capacity: 2700cc

4.High pressure flow: 2.3cc

5.Low pressure flow: 13cc

6.Net weight: 14.1Kg

Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 50ton Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment VOLTZ tools
