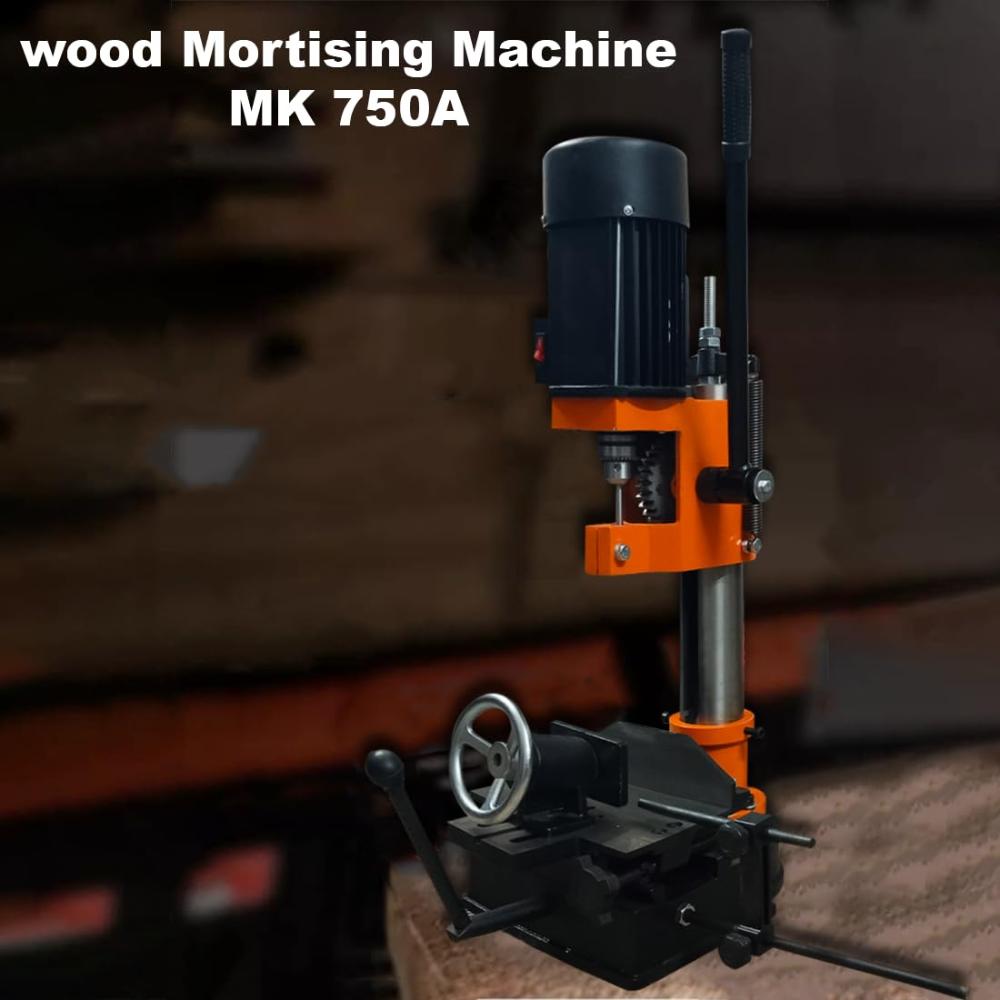

VOLTZ VZ-MK-750A Wood Bench Mortiser Woodworking Mortising Machine RPM-2840, Black/Orange (750W) Set

The Wood Mortising Machine MK-750A is a high-performance industrial-grade woodworking tool designed for precision and durability. Operating at 220V/50Hz , this powerful machine reaches speeds of up to 2840 RPM, making it capable of handling even the most demanding tasks. Engineered for heavy-duty industrial use, the MK-750A offers exceptional stability and accuracy, ensuring clean and precise mortises every time. Its robust construction and high-speed performance make it an indispensable tool for wood slotting.

SPECIFICATIONS :-

1. Model - VZ-MK-750A

2. Spindle speed - 2840 RPM

3. Chisel Capacity (mm) - 3/8mm-9.53mm

4. Drill Chuck Capacity (mm) - 1.5 - 13

5. Max. Clamping width (mm) - 100

6. Vertical Stroke (mm) - 60

7. Lateral Stroke (mm) - 140

8. Fence size - (mm) - 200 x 60

9. Table size (mm) - 200 x 160

10. Base size (mm) - 310 x 250

11. Column Diameter (mm) - OD 70

12. Overall Height (mm) - 730

13. Net weight/Gross weight(kg) - 48/51

14. Packing size  (mm) - 495x305x220 / 635x305x240

Remember when your holes were square? Strengthen your workpieces with the VOLTZ Benchtop Mortising Machine. Our powerful 5-amp motor provides you up to 2840 rotations per minute, making easy work out of even the toughest of woods. The spacious chuck accepts bits anywhere from 1.5 - 13mm , giving you the versatility needed to take on any project. With spindle travel of 140mm and a max stock thickness of 4 inches, you'll be able to create sturdy and reliable mortises up to 2 inches in depth. The pneumatic spring head returns easily and smoothly while the spring-loaded cast iron fence allows for both fine-tune and large-scale adjustments. The spacious table measures in at 12.2 by 6 inches with a work-piece hold down that accepts boards up to 3.2 inches thick. The adjustable feed handle rotates freely to prevent collision with your workpiece, springing back into place once you select your optimal start and stop points. The onboard depth stop prevents you from drilling past your intended distance.
