Brand
Category: CYLINDERS
ASIN: RCH-3050 With Hand Pump
Rs.25500Rs.42990
VZ-RCH-3050 Hollow Jack With VZ-CP-700 Hand Pump
Excluding GST

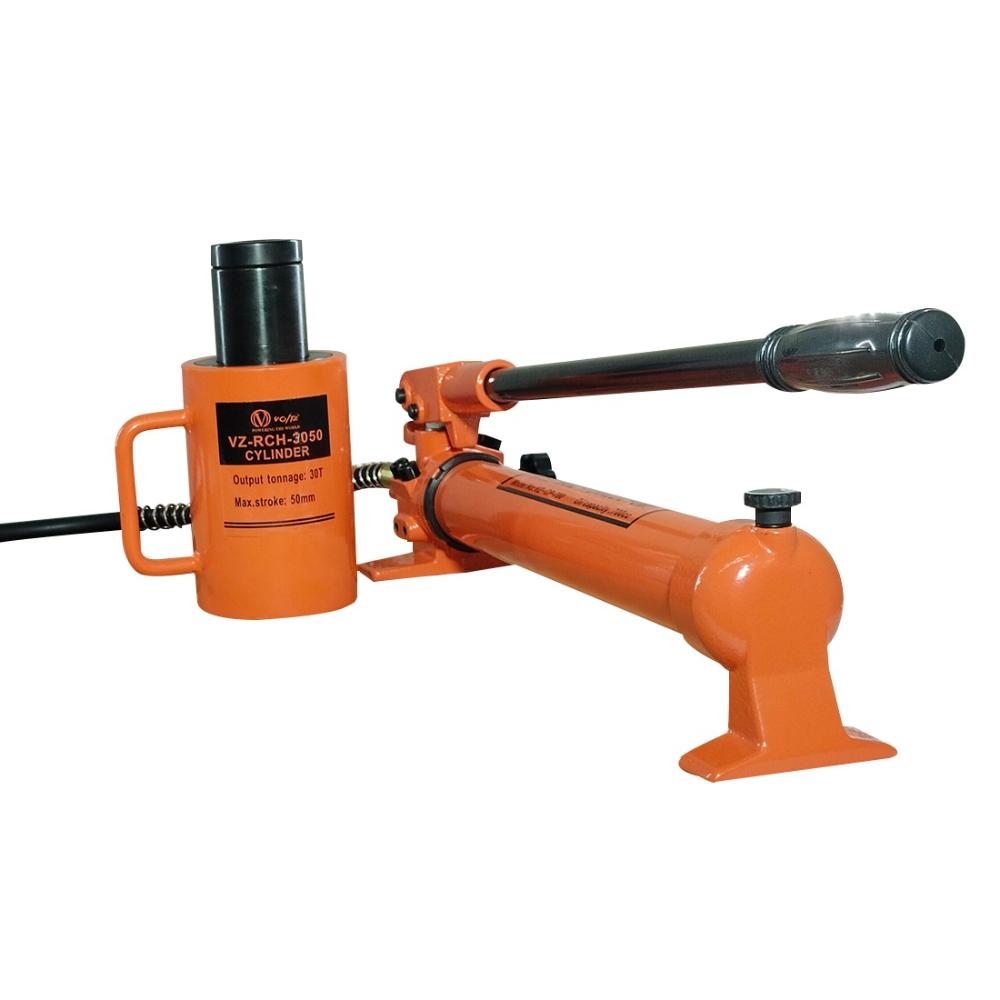

VOLTZ VZ-RCH-3050 Hydraulic Hollow Hole cylinder with VZ-CP-700 Hand pump

Description  : 30T 2" Stroke Solid Hydraulic Cylinder Jack Hydraulic Hollow Hole Cylinder Jack  Single Acting

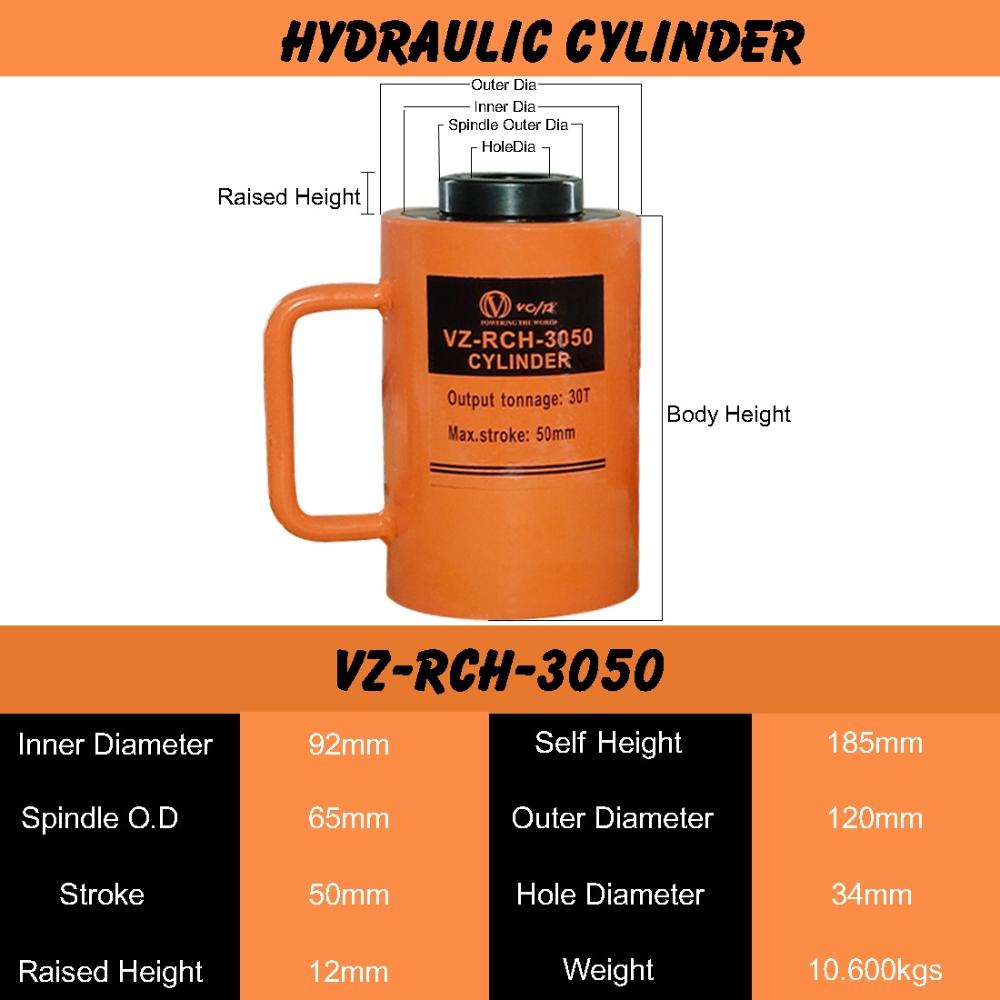

Specification:

1. Capacity: 30T/66000LBS

2. Ram stroke: 50mm/2in

3. Self Height: 172 mm/6.8in

4. Outside Diameter: 113 mm/4.6in

5. Cylinder Diameter: 90 mm/3.5 in

6. Hole Diameter - 34 mm

7. Item Weight: 10.6 kg

Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 30T/66000LBS Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment .

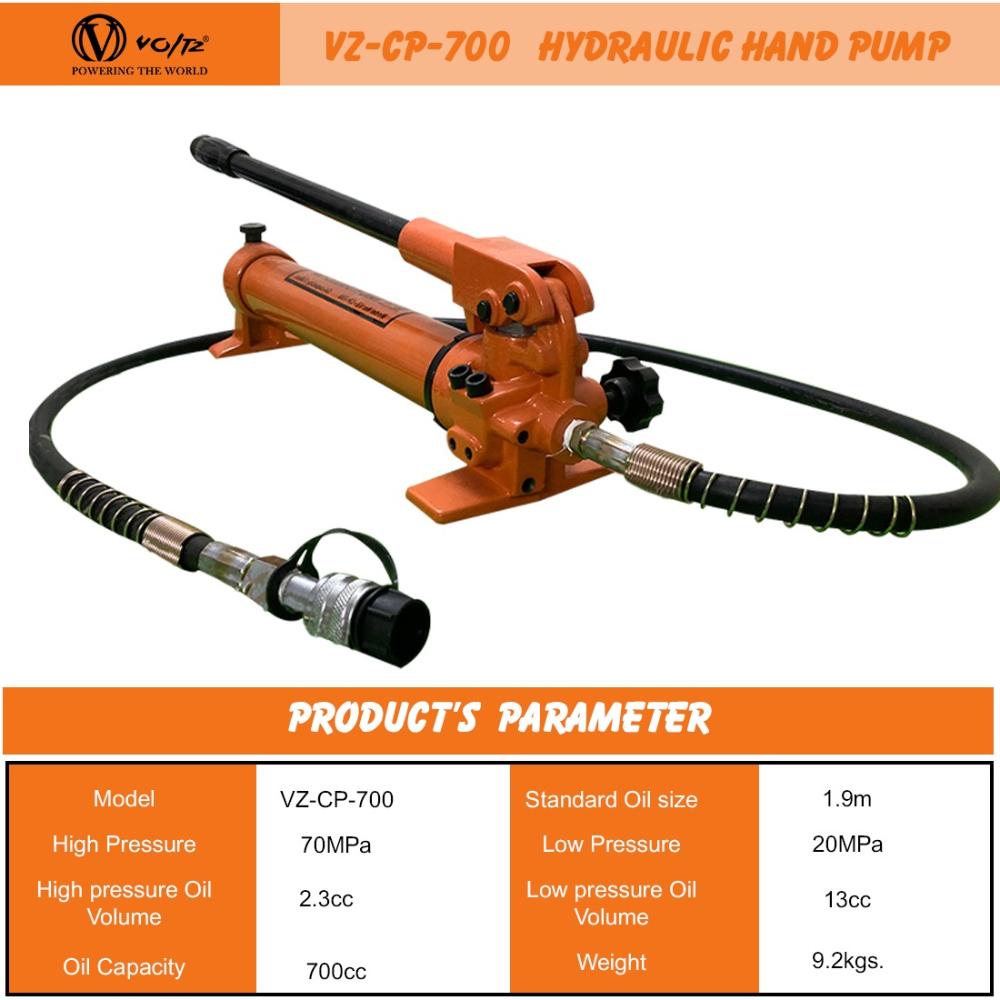

VOLTZ Hand Pump Technical Data :  CP-700 High pressure pressure: 700kg /

1. Low pressure pressure: 20kg /

3. Oil storage capacity: 900cc

3.High pressure flow: 2.3cc

4.Low pressure flow: 13cc

5.Net weight: 9.5Kg

SPECIFICATIONS :

  • MAX CAPACITY--30 Ton lifting capacity with a stroke of 2"
  • SIZE--Self Height: 172mm, Total Height with stroke :- 222mm /9.1" Outside Diameter: 4.6inch ,Hole Diameter : 34mm
  • HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
  • HAND PUMP - Model: CP-700 Oil storage capacity: 900cc High pressure: 700kg /
  • GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop

1.Free Shipping & Return

We offer free shipping for products.

2.Free and Easy Returns

We guarantee our products and you could get back all of your money anytime you want in 10 days.

  • Voltz

  • Hydraulic Cylinder with hand pump

  • VZ-RCH-3050 With VZ-CP-700 Hand Pump

  • 30 Ton

  • Hollow Type

  • 50mm

  • 172mm

  • 222mm

  • VZ-CP-700

  • 900cc

  • 20.1kg

  • Orange

  • Hydraulic cylinder with Hand Pump
