VOLTZ CH-80 Hydraulic Hole Punching Tool with VZ-DB075-D2 750w Electric Pump 50T Hole Digger Force Puncher Smooth Hole Puncher for Iron Plate Copper Bar Aluminum Stainless Steel

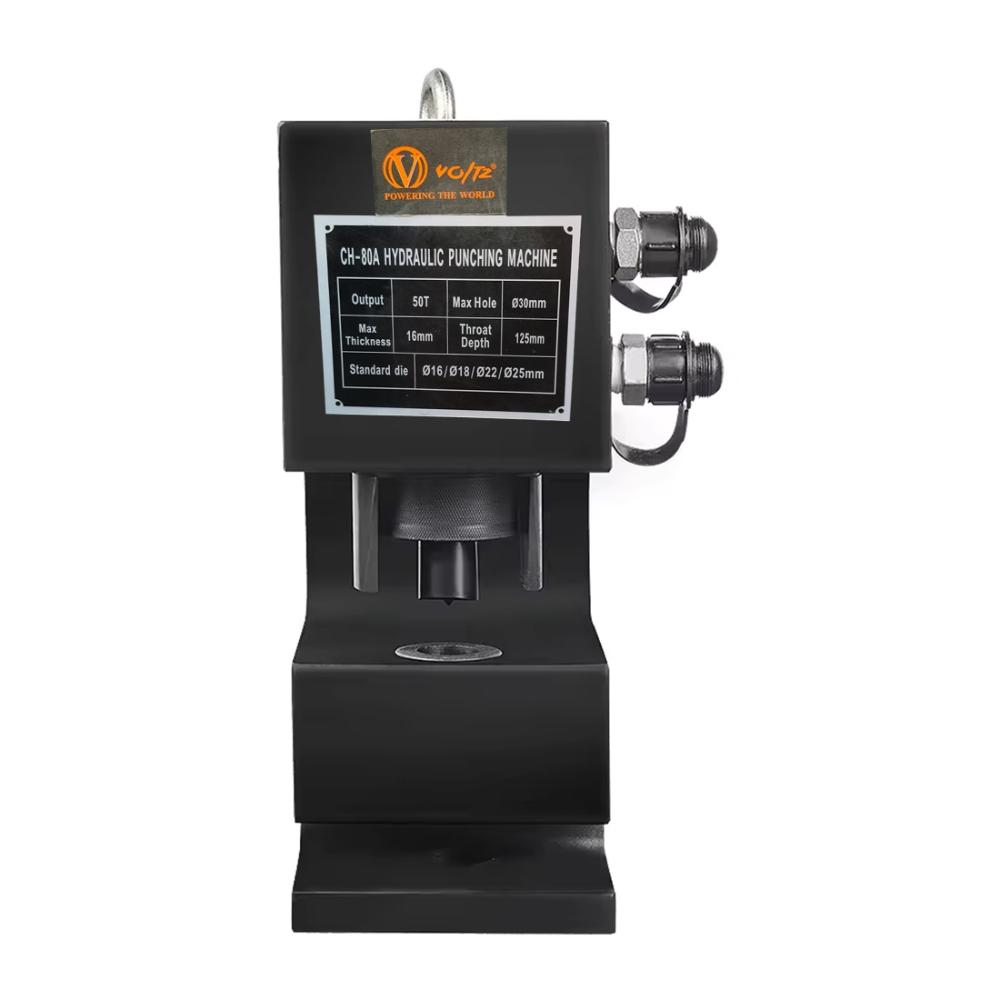

VOLTZ CH-80 Hydraulic Hole Puncher with VZ-DB075-D2 750w Electric Pump 50T

4 Pairs of Dies & 16mm Capacity & 5.2" Throat Depth

There is a superior CH-80 hydraulic hole puncher with VZ-CP-800S Hand Pump. It is used to punch metal plates, such as copper, aluminum, iron, and steel, perfect for L and H style flat copper, bus bar the in the electricity industry, construction, etc. A great punching force of 50T/500KN allows you to get easy work done. It is durable and solid with high hardness and strength.

• Excellent Punching
• 4 Pairs of Dies - 16/18/22/25mm
• Durable Steel Structure
• Compact Size & Portable

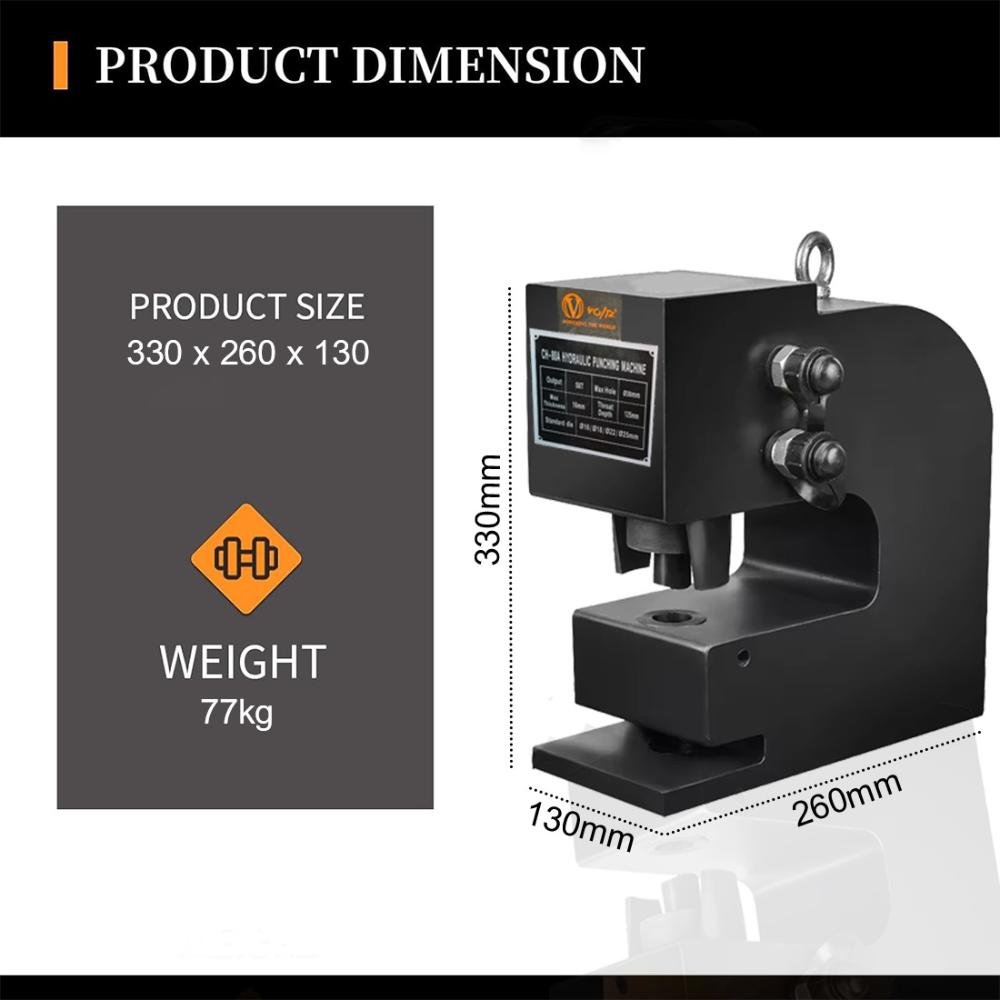

• Aprox weight - 77kg

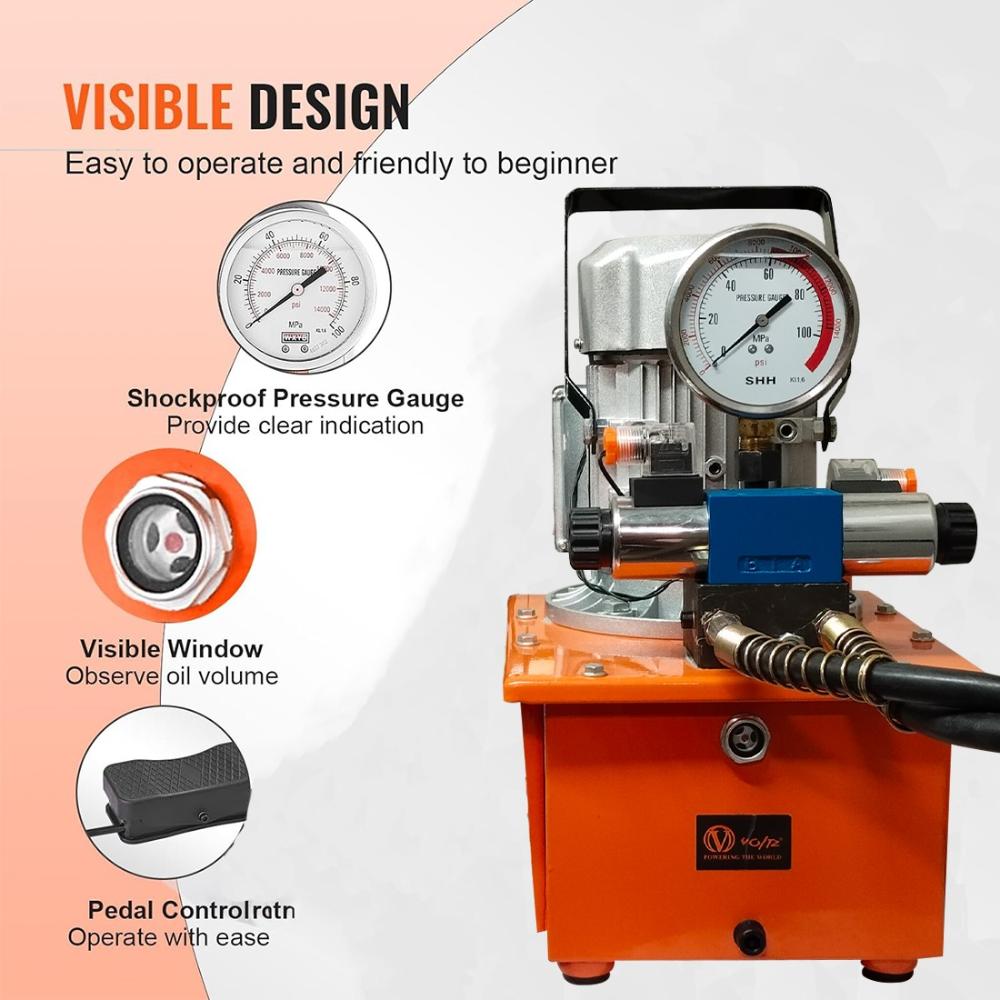

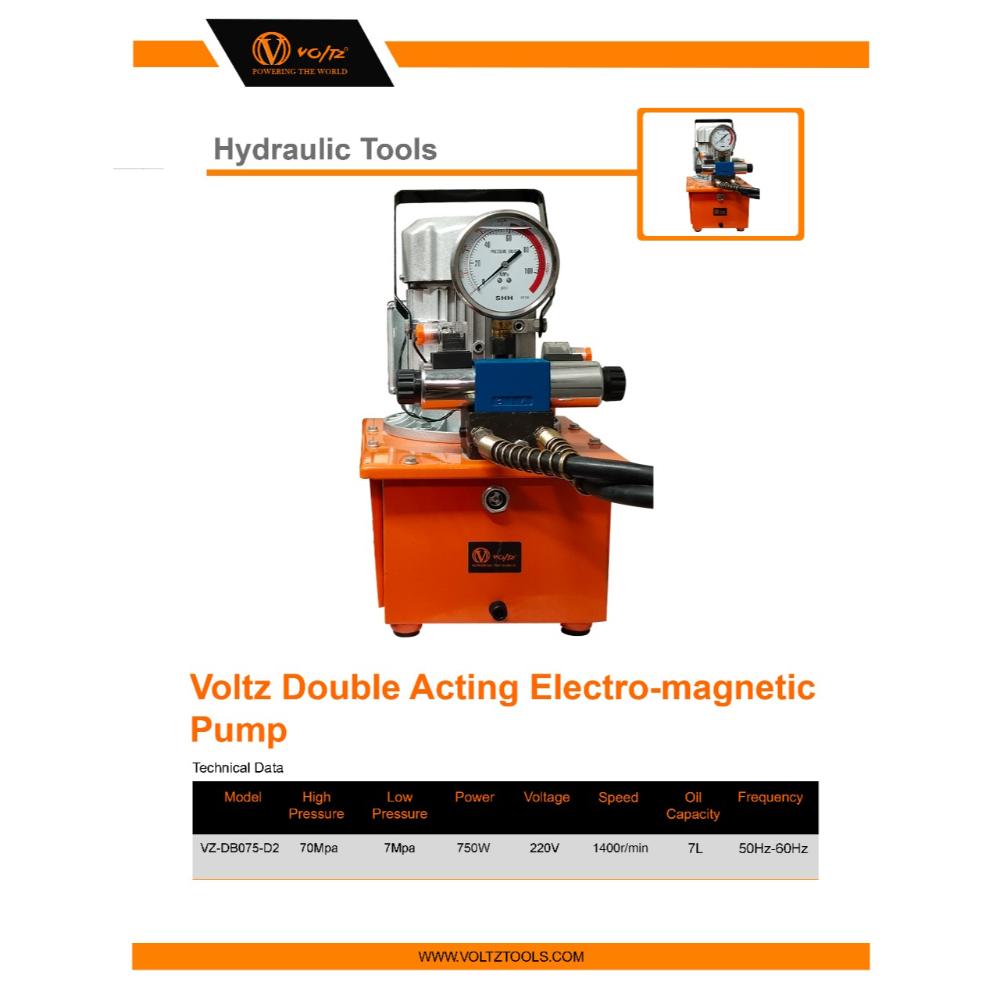

Product model: DB075-D2 solenoid valve double oil circuit with pressure maintaining valve 750W

1. Voltage: 220V/380V

2. Motor power: 0.75KW

3. Frequency: 50Hz

4. Speed: 1400r/min

5. High pressure: 70Mpa

6. High pressure flow: 0.9L/min

7. Low pressure: 7Mpa

8. Low pressure flow: 5L/min

9. Oil storage: 7L (can be customized)

10. Dimensions: length 360* width 300* height 460mm

11. Oil type: anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil (oil is not included in the shipping package, because oil cannot be transported through security inspection)

12. Weight: 30KG

KEY FEATURES :

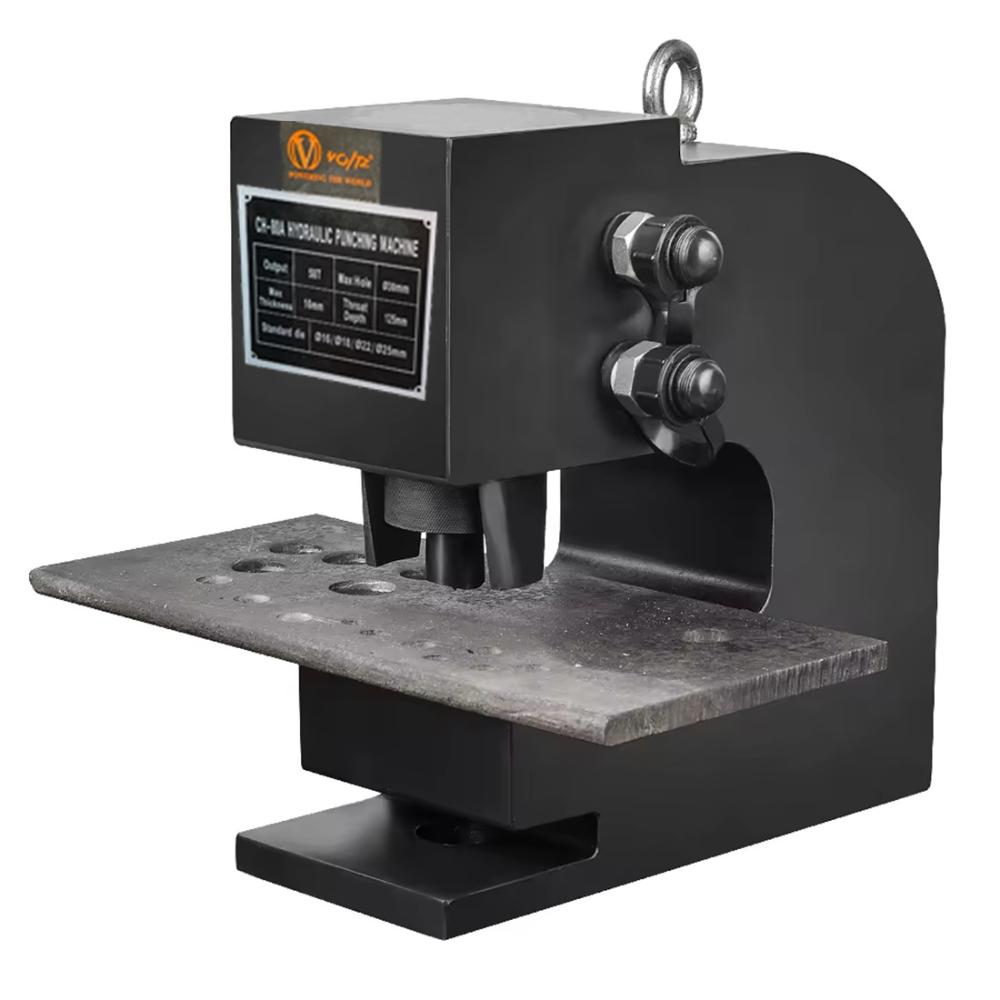

1. Max Punching Capacity :- This hydraulic punch is suitable for an iron plate with a thickness of <14mm, copper/aluminum plates with a thickness of <12mm, stainless steel with a thickness of 4-10mm , Channel stee :- 6-18mm , Angle iron :- 6-12mm &  Punching force: 50T/500KN.

2. 5.2" Depth of Throat :- This hydraulic punch-down installation tool features a deep throat for convenient operation and excellent punching. A throat depth of 5.2"/130 mm allows you to put a wide plate in.

3. Puncher Aperture :- Our hydraulic hole punching tool could punch a hole of 16 mm, 18mm , 22mm , 25mm. These punch dies are made of high carbon tungsten steel and are not easy to wear off.

4. Alloy Steel Material :- This knockout punch set is made of premium alloy steel with high strength and excellent toughness. It has a flat and sturdy base, ensuring not easy to fall. The male connector is designed to connect with your hydraulic pump (prepare by yourself).

5. Great Portability :- The thickened and insulated handle gives you a comfortable and secure user experience, suitable for long-lasting use. It makes the tool easy to carry.

6. For Various Scenarios :- This hole punching tool can be applied to L and H style flat copper, busbar, etc. It is commonly used in the electricity industry, construction, and bridge construction, indoor decoration.
