VOLTZ CH-80 50T Hydraulic Punch Tool with VZ-CP-800S Hand Pump

Effortlessly tackle metal plate punching with the VOLTZ CH-80 50T Hydraulic Punch Tool, paired with the VZ-CP-800S Hand Pump for precise and smooth operation. This powerful system is designed for various metal types, including copper, aluminum, iron, and stainless steel, making it perfect for L and H-style flat copper, busbars, and more. With a punching force of 50T/500KN, this tool ensures high efficiency and durability for industrial and construction applications.

Key Features:

Max Punching Capacity

Suitable for punching iron plates (<14mm thickness), copper/aluminum plates (<12mm), stainless steel (4-10mm), channel steel (6-18mm), and angle iron (6-12mm).

Punching force: 50T/500KN.

Deep Throat Design

Features a 5.2"/130mm throat depth for easy handling of wide plates, enhancing convenience and punching precision.

Versatile Puncher Aperture

Includes four die sizes: 16mm, 18mm, 22mm, and 25mm, crafted from high-carbon tungsten steel for long-lasting durability.

Premium Alloy Steel Construction

The tool’s high-strength, premium alloy steel body ensures excellent toughness and durability, with a sturdy, flat base for stability.

Compact and Portable

Designed for easy portability with a thick, insulated, anti-slip handle for user comfort during prolonged use.

Applications

Ideal for L and H-style flat copper, busbars, and components used in electricity, construction, bridge building, and indoor decoration.

How the Hand Pump Works

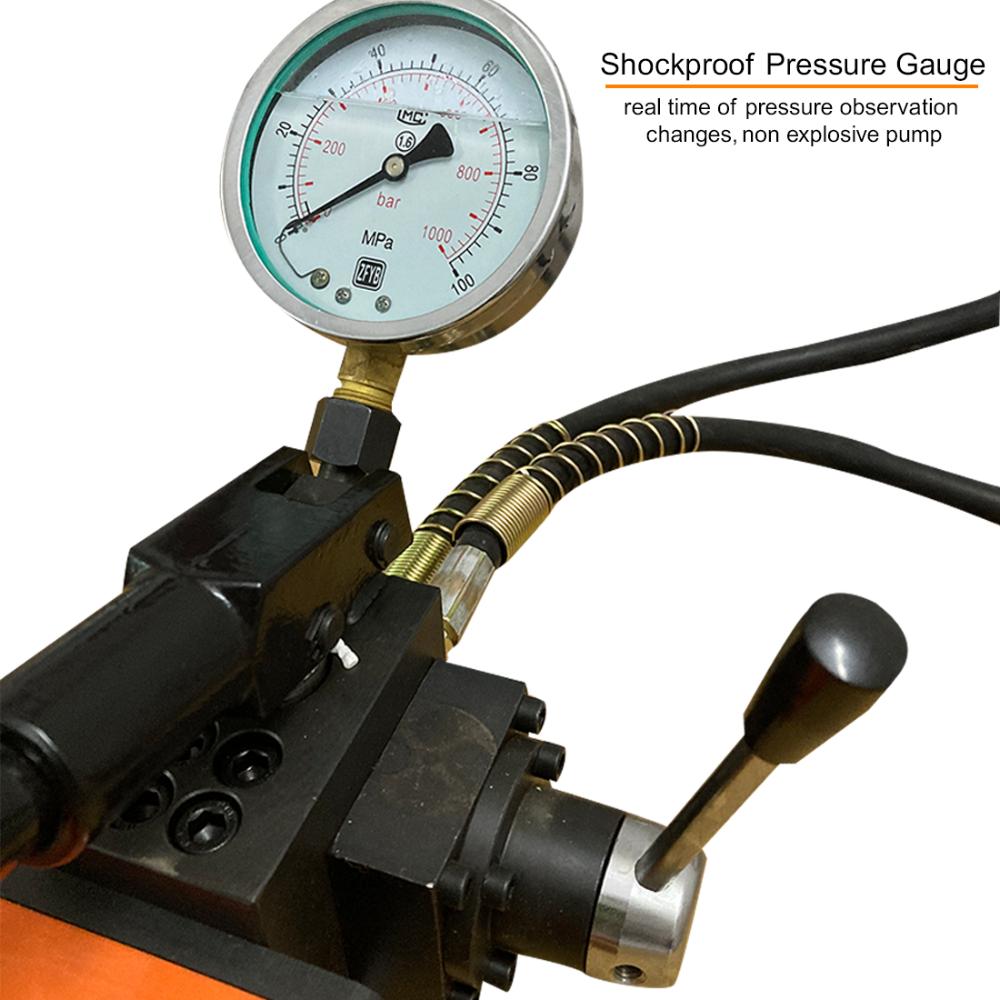

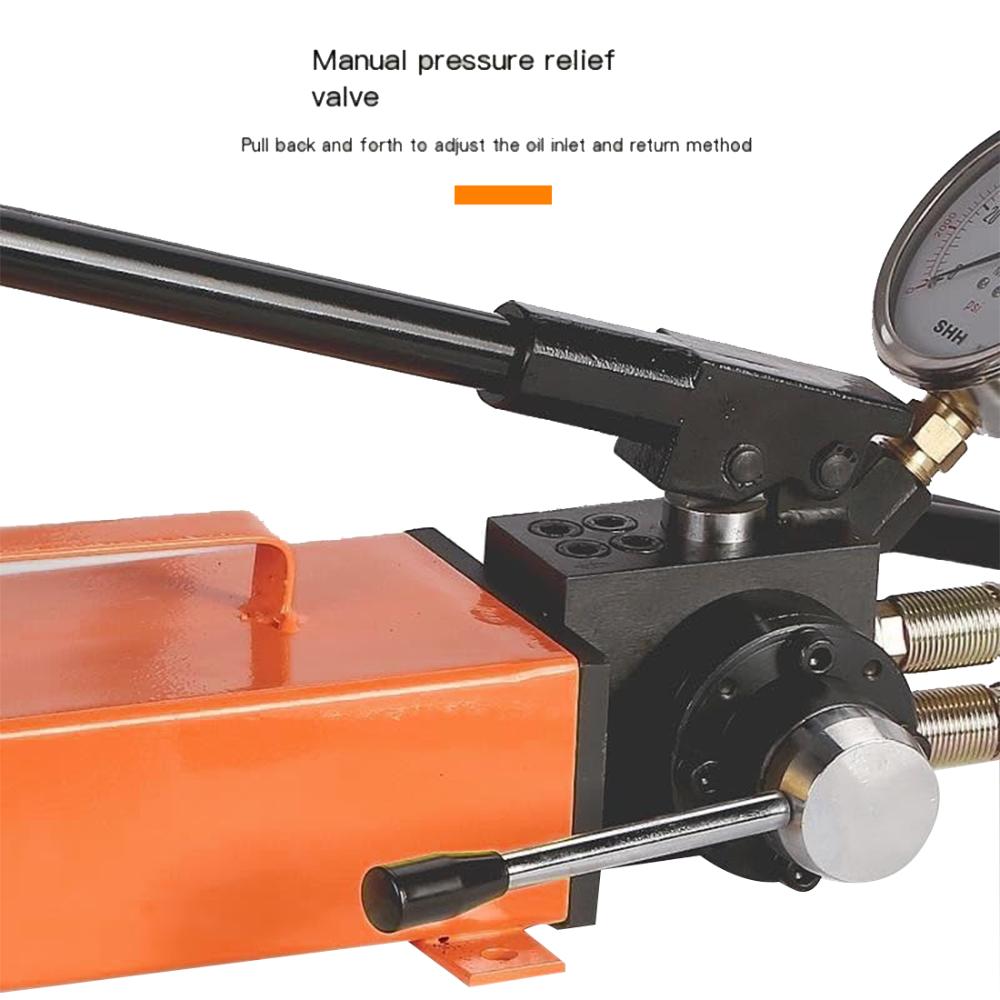

The included VZ-CP-800S hand pump features a robust pressure gauge, ensuring precise control over the punching force. Its plunger mechanism delivers high-pressure performance (70MPa) and low-pressure capabilities (20MPa), making it easy to operate. The standard oil pipe (1.9m) and 3000cc oil storage capacity provide optimal functionality, demonstrating how hand pumps work to generate the hydraulic force required for seamless punching.

Technical Specifications

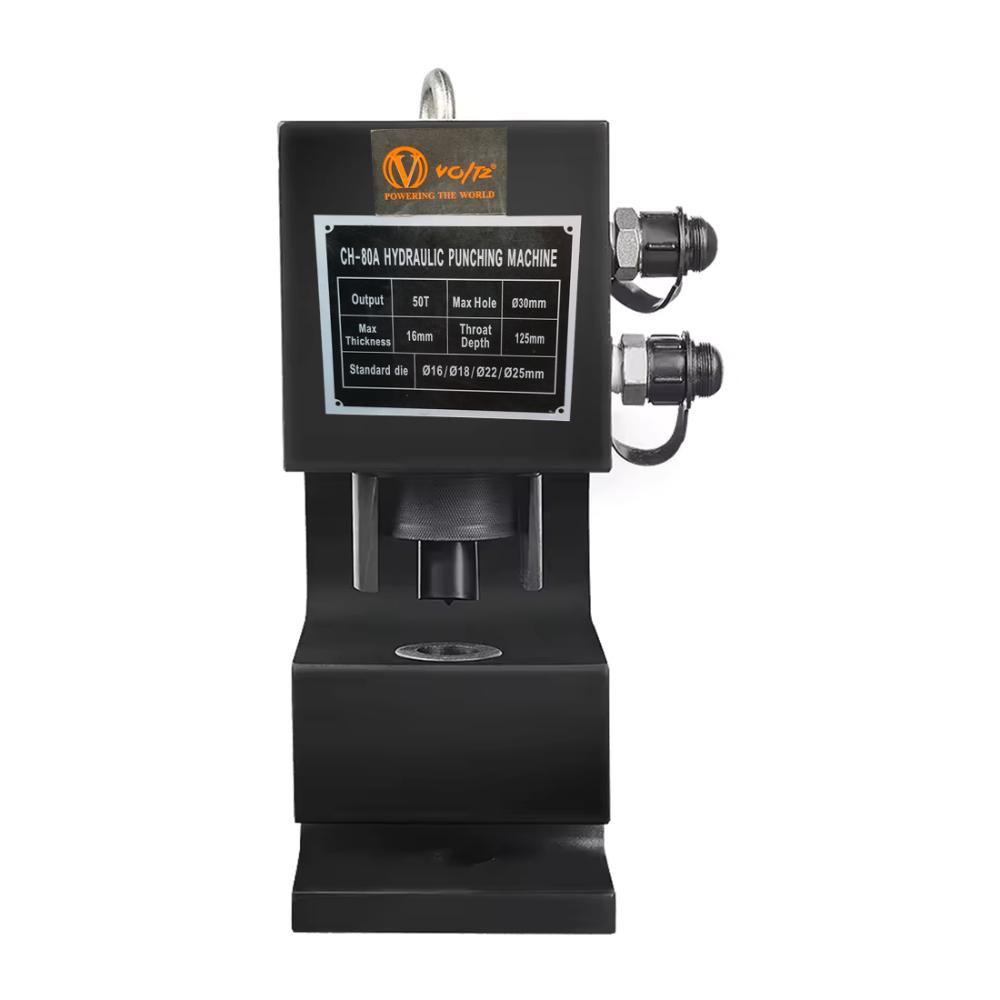

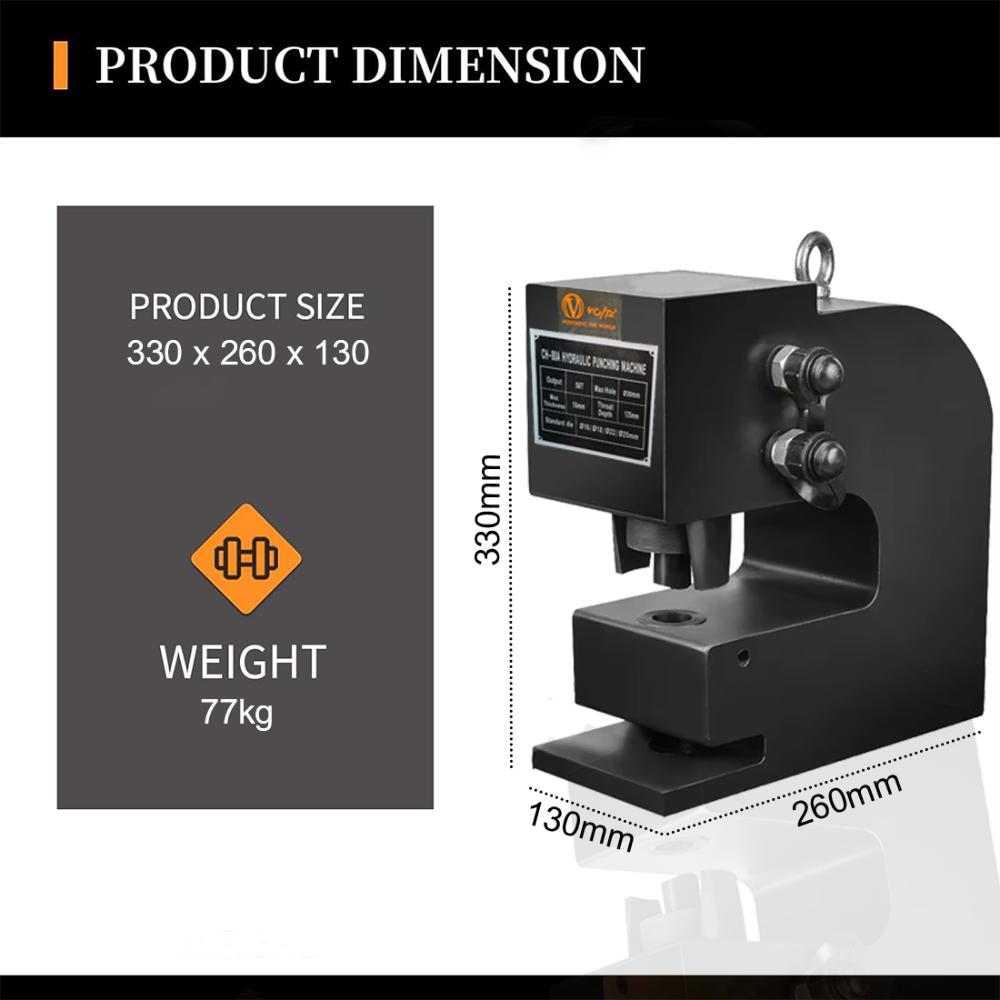

CH-80 Hydraulic Punching Tool:

1. Punching force: 50T/500KN
2. Throat depth: 5.2"/130mm
3. Max plate thickness: Iron (<14mm), copper/aluminum (<12mm), stainless steel (4-10mm), channel steel (6-18mm), angle iron (6-12mm)
4. Aperture sizes: 16mm, 18mm, 22mm, 25mm

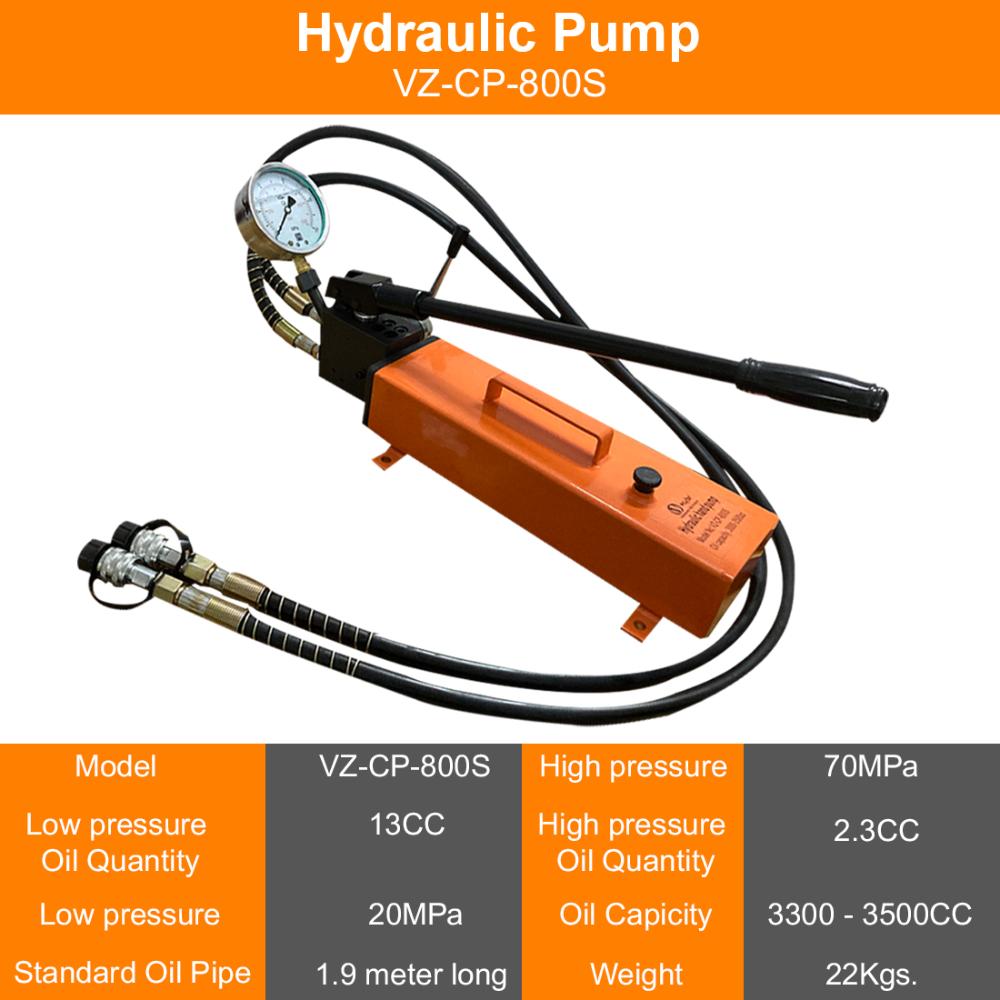

VZ-CP-800S Hand Pump:

1. Model: VZ-CP-800S (double-acting manual pump)
2. Pressure: High (70MPa), Low (20MPa)
3. Oil capacity: 3000cc
4. Standard oil pipe: 1.9m length
5. Weight: Net 21kg / Gross 22kg
6. Punch Tool Usage

The hand punch tool is designed for industrial and heavy-duty applications. With its versatile die sizes, it delivers precision in punching holes in metal plates, showcasing its effectiveness as a hand punch tool for metal. Whether for electrical installations, construction, or structural projects, the VOLTZ CH-80 ensures reliable performance.

Experience efficiency and precision with this hydraulic punching machine and hand punch tool—engineered for professionals demanding high-quality results.
