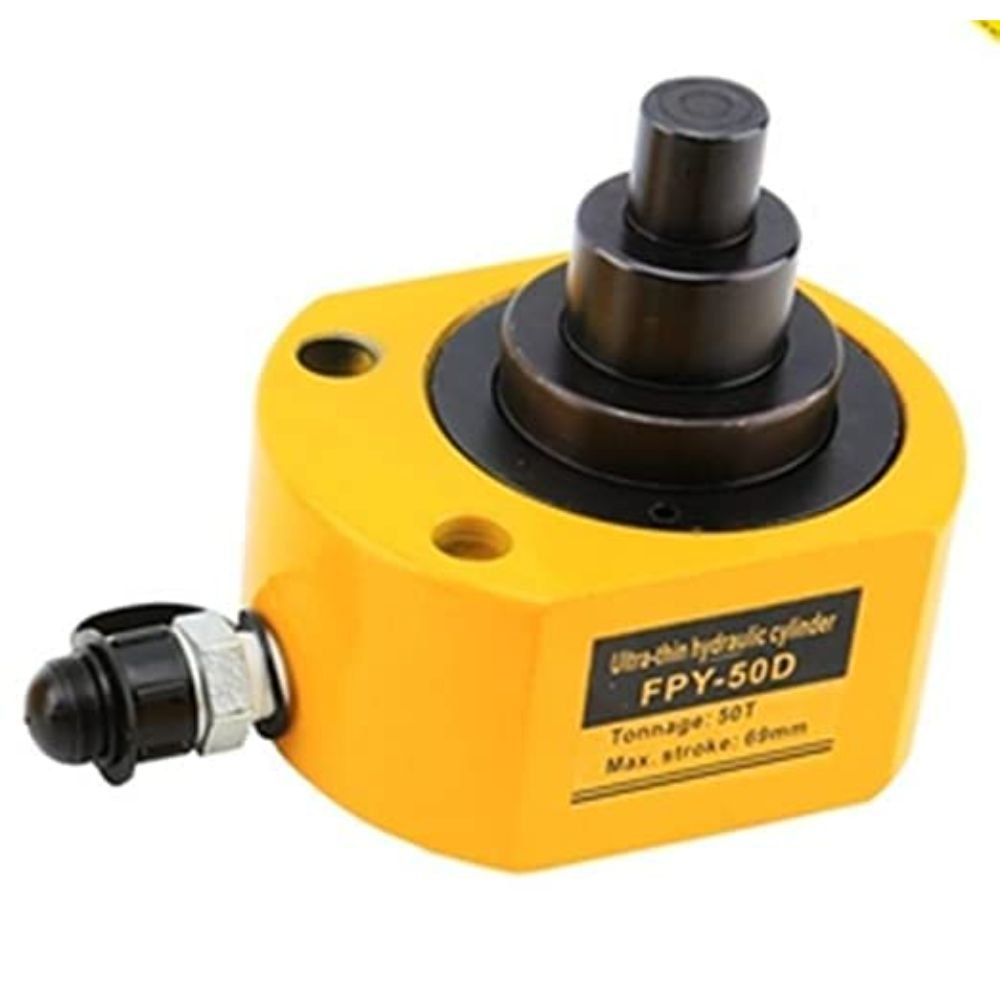

VOLTZ FPY-50D With CP-700 Hand Pump 50 ton Low Profile Hydraulic Ram Jack Multi-Section Stoke 65mm(2.56inch) Mini Protable Hydraulic Cylinder Industrial Super Thin Lifting Jack, not for Car (50T)

VOLTZ FPY-50D with CP-700 Hand Pump Triple Stage hydraulic cylinder is not for the CAR (1). when several hydraulic jacks work at the same time, they should be directed by someone to make the lifting or falling simultaneously. Two adjacent hydraulic jacks shall be supported with wooden blocks to ensure that the gap is secured against sliding. (2). when using hydraulic jack, always pay attention to the sealing part and pipe joint part, and must ensure its safety and reliability. (3). hydraulic jacks are not suitable for sites where acids, alkalis, or corrosive gases are applied. 50 ton Hydraulic Ram Jack Parameters: Up and down without obstacles: Special treatment of piston to prolong service life Fast Connector + Plastic Dust-proof Cover: The joint adopts threaded ZG3/8 fast joint, thread locking and compact structure.

SPECIFICATIONS

1. Model: FPY-50 D

2. Tonnage: 50 T

3. Stroke 1: 20 MM; Stroke 2: 23 MM; Stroke : Stroke 3 : 22 mm , 3: / ;Total stroke: 65 MM (3 STAGE)

4. Oil storage capacity: 113 CC

5. Self height: 71 MM

6. Weight: 9 kg

7. Pump Technical Data  Model: CP-700

8. High pressure pressure: 700 kg / ?²

9. Low pressure pressure: 20 kg / ?²

10. Oil storage capacity: 900 cc

11. High pressure flow: 2.3 cc

12. Low pressure flow: 13 cc

14. Aprox weight - 17 kg

FEATURES :-

• [Lightweight and Compact]- Small and easy to carry, capable of working in a narrow space.
• [Painted Surface]- The surface of the cylinder is made of baking varnish, high corrosion resistance.
• [Dust Ring]- Reduces pollution and extends the life of the hydraulic cylinder.
• [Multiple Direction Placing]- The cylinder has two holes for fixed use. Besides, it can be used in both vertical and horizontal directions. But please note that it must be placed on or leaned against a flat surface.)
• [Must Use with Hydraulic Pump]- This hydraulic cylinder must be used with a hydraulic pump, otherwise the oil pressure is not sufficient to withstand normal use.
