VOLTZ YP-24 Hydraulic Nut Splitter Cutting Tools Nut Separator M8-14/ M16-M24

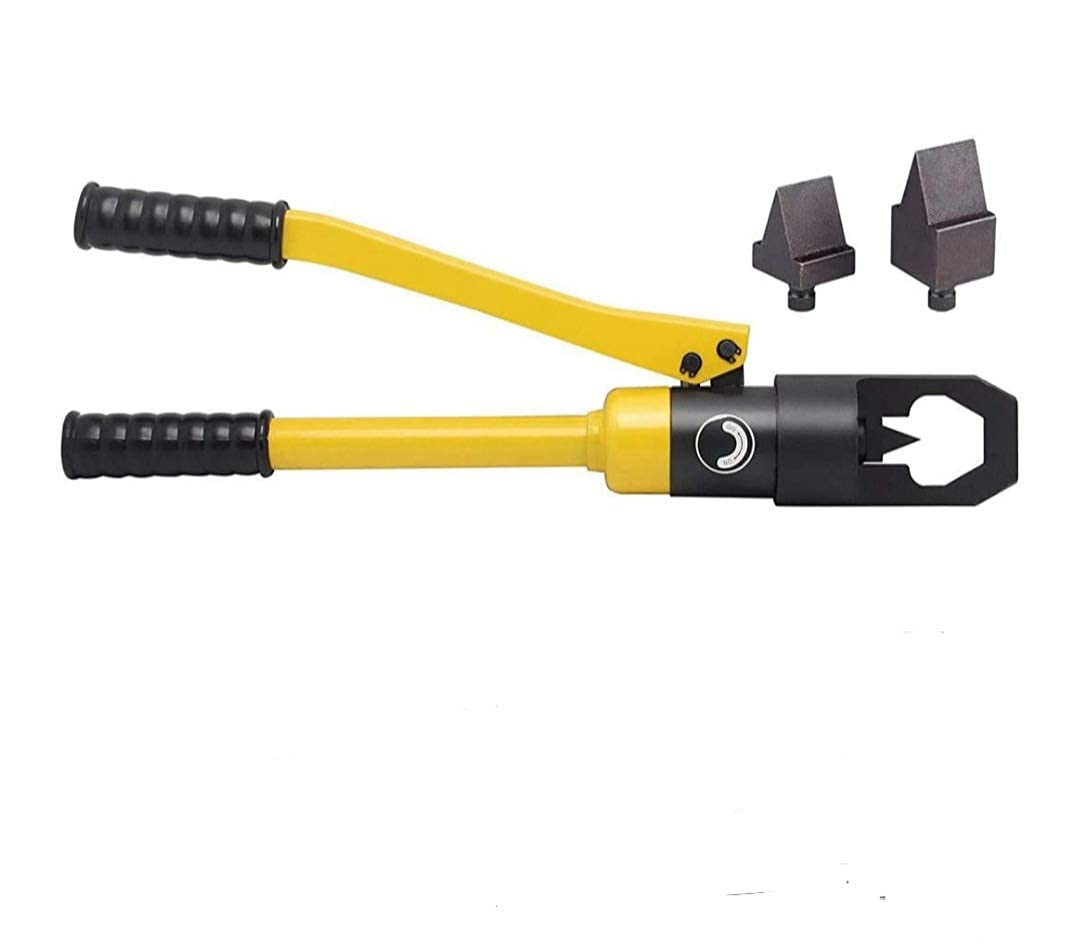

VOLTZ YP-24 Hydraulic Nut Splitter – Heavy-Duty Nut Cutter Tool

Effortlessly remove stubborn nuts with the VOLTZ YP-24 hydraulic nut splitter. This hydraulic nut cutter tool is designed for M8-M14 & M16-M24 nut sizes, offering durability, efficiency, and precision. Whether you need a hydraulic nut splitter for sale or a reliable nut splitter tool for industrial applications, this is your perfect solution.

SPECIFICATIONS:

1. Output: 10T
2. Itinerary: 20mm
3. Weight: 4kg

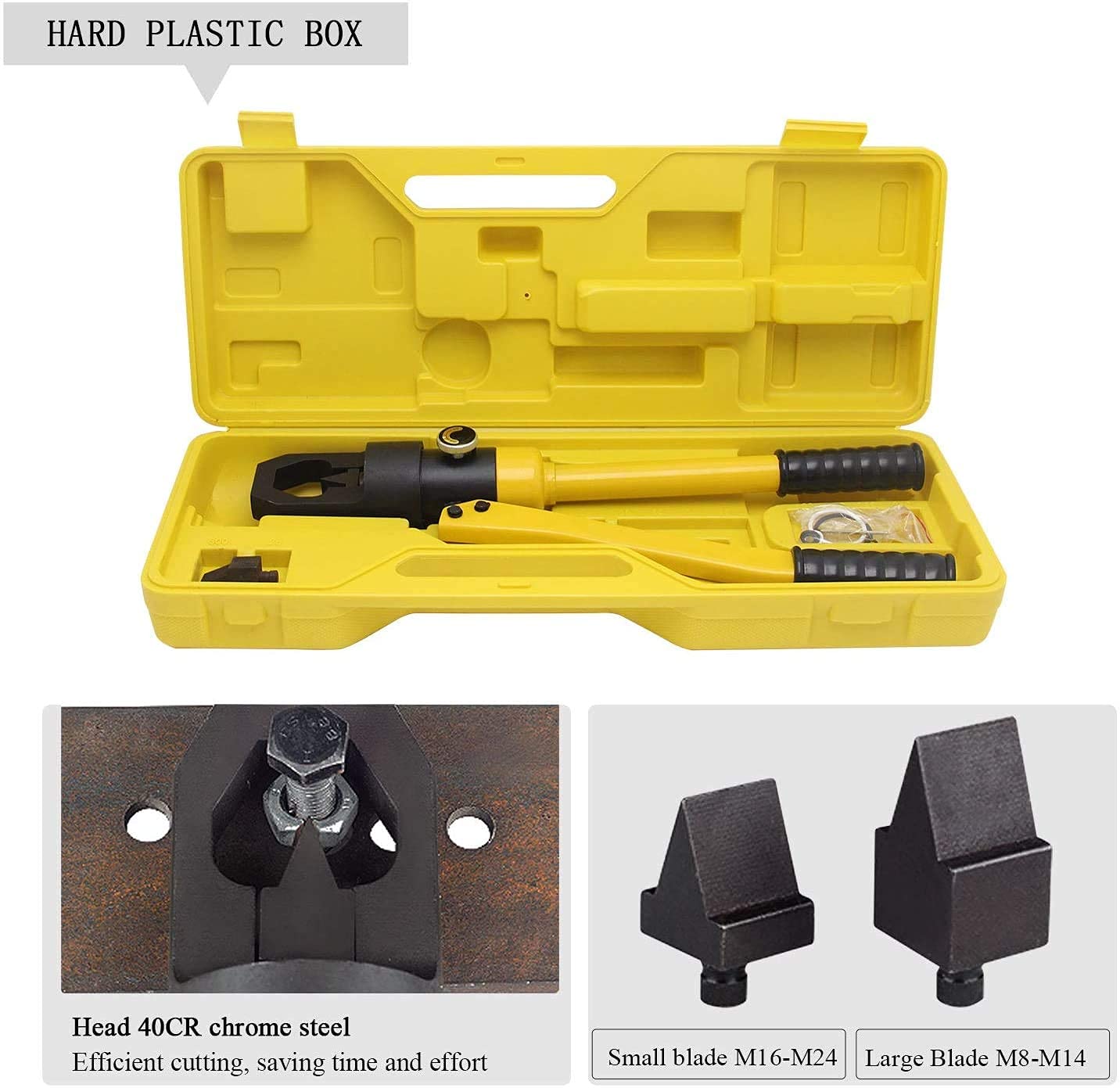

4. Packing: Plastic box (random color)
5. Cutting Range:
6. Large blade – M8-M14
7. Small blade – M16-M24

HOW TO USE:

When a nut is rusted and difficult to remove, using this nut cutter tool is a time-saving and efficient solution. Unlike electric tools, it operates manually without needing power.

Compact, lightweight, and portable, eliminating the need for high-pressure tubing and pumping.

Select the appropriate blade and turn the pressure relief valve ON.

Pump the active handle up and down to activate the hydraulic nut splitter, applying thrust to cut the nut.

Turn the oil switch OFF to reset the piston, allowing for a second cut.

ADDING HYDRAULIC OIL:

1. Over time, refueling may be required.
2. Remove the fixed handle and oil plug.
3. Add No. 20 mechanical oil through a 200-mesh leaking net until full.
4. Tighten the oil plug and press the active handle to remove air from the oil bag.

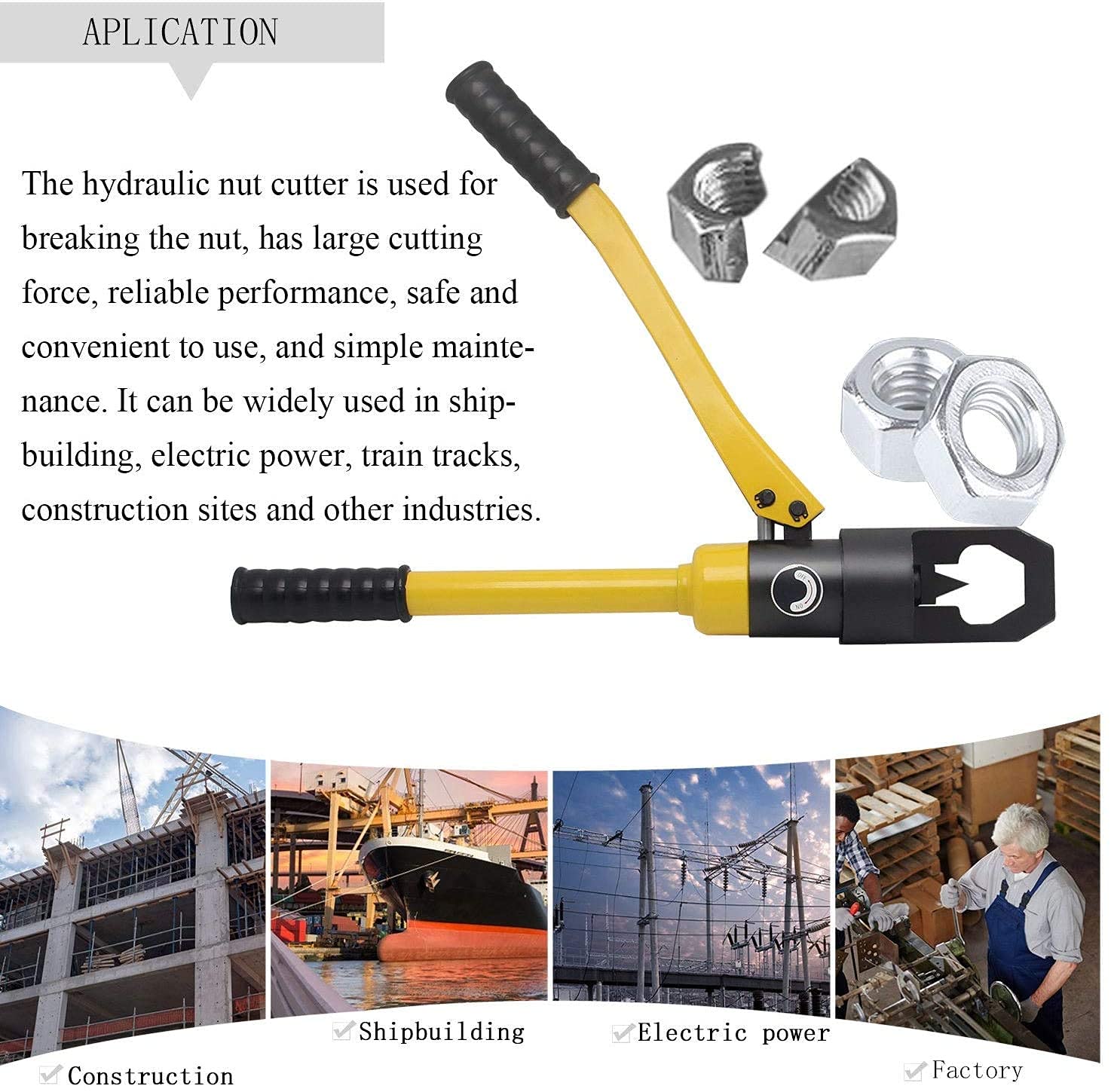

APPLICATIONS:

Ideal for industries such as: Electric power, electrical maintenance, power transmission, petrochemical, mining, and ship repairs.

The most time-saving, safe, and efficient way to remove corroded or stuck nuts.

Perfect for working at high altitudes without high-pressure tubing or pumps.

MAINTENANCE & PRECAUTIONS:

Do not cut high-strength heat-treated nuts.

Store properly to avoid damage; do not dismantle the unit.

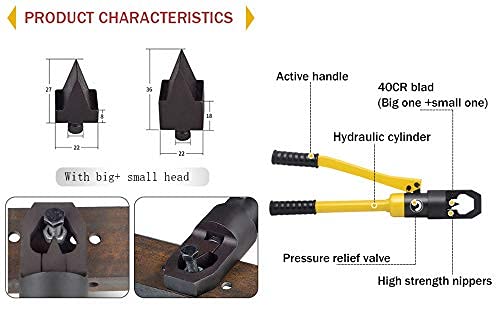

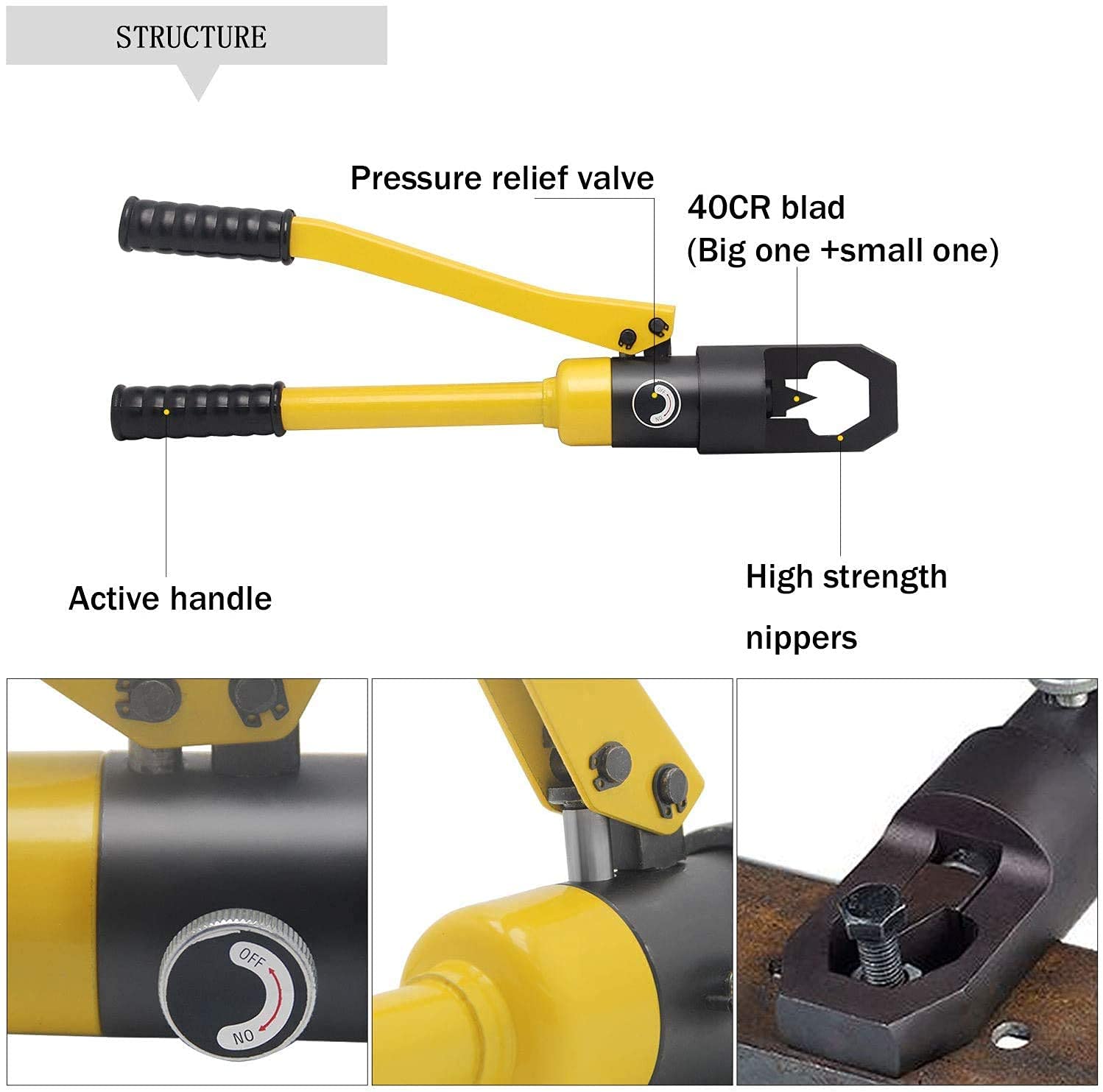

FEATURES:

1. Wide Cutting Range: M8-14 / M16-M24, Max Output Force: 10T, Stroke: 20mm.
2. Durable Alloy Steel Head: Made of 40CR chrome steel for long-lasting use. Easily removes standard nuts, saving time and effort.
3. Pressure Relief Valve: Allows controlled pressurization and smooth release for precise nut splitting.
4. Double Oil Pump Core: Enhances pressurization speed and work efficiency. Equipped with a double sealing ring to prevent oil leakage and extend lifespan.
5. Versatile Use: This portable hydraulic nut splitter is perfect for cutting rusted or seized nuts and serves as an emergency nut cutter tool alternative to a wrench.

Looking for a hydraulic nut splitter rental or the best hydraulic nut splitter for sale? The VOLTZ YP-24 is the ultimate nut splitter tool for fast, safe, and reliable performance
