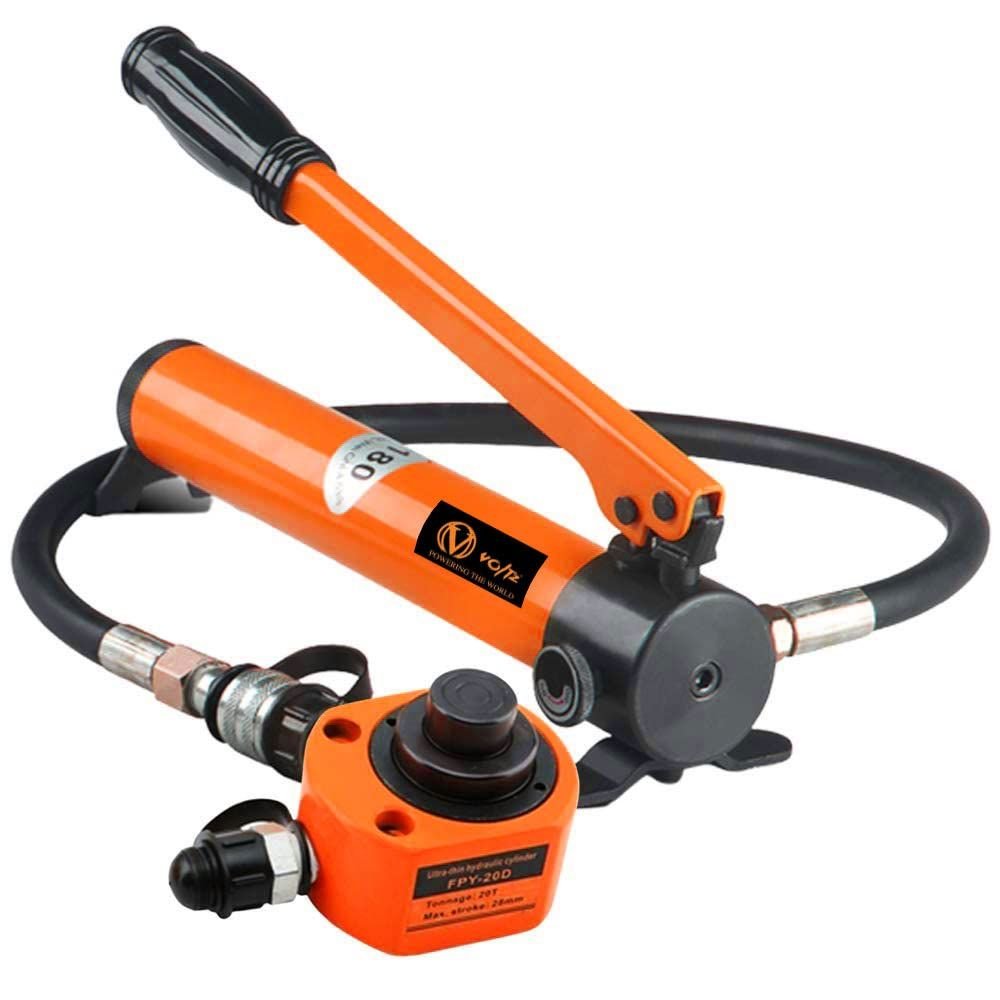

VOLTZ FPY 20D  2 stage Hydraulic cylinder with CP-180 Hand Pump . These hydraulic cylinder are strictly not recomended for the CAR

(1). when several hydraulic jacks work at the same time, they should be directed by someone to make the lifting or falling simultaneously. Two adjacent hydraulic jacks shall be supported with wooden blocks to ensure that the gap is secured against sliding.

(2). when using hydraulic jack, always pay attention to the sealing part and pipe joint part, and must ensure its safety and reliability.

(3). hydraulic jacks are not suitable for sites where acids, alkalis, or corrosive gases are applied. 20 ton Hydraulic Ram Jack Parameters: Up and down without obstacles: Special treatment of piston to prolong service life Fast Connector + Plastic Dust-proof Cover: The joint adopts threaded ZG3/8 fast joint, thread locking and compact structure.

SPECIFICATIONS :-  Model: FPY-20D; Tonnage: 20T ; Stroke 1: 16MM; Stroke 2: 14MM; Stroke 3: / ;Total stroke: 30MM Oil storage capacity: 41CC; Self height: 57MM; Weight: 2.8kg; Compression area: 19.6mm² Inner diameter

1: 30mm; Inner diameter

2: 50mm; Inner diameter

3: / ; External diameter: 79x99mm CP-180 Hydraulic Hand Pump Parameters: Hydraulic pump body: Smooth surface, good sealing, no oil leakage. Relief Valve: When working, tighten the return valve clockwise; When releasing pressure, loosen the return valve counterclockwise. Oil Tube and Joint: Comes with 0.8m oil tube. Model: CP-180 High pressure: 853PSI(60kg/cm²) High pressure oil quantity: 20cc Oil storage capacity: 400cc Weight: 3.8kg

About this item

• 1.This hydraulic jack is often used in power, chemical, steel, bridges, machinery and other industries! Home car type is not recommended
• 2.The utility model has the advantages of smaller size and greater working capacity, especially in the narrow space position, and has the functions of portability, flexibility, big jacking force, etc
• 3.when the hydraulic jack is used, the bottom should be flat and tough. Oil free wood panels to expand the pressure surface, to ensure safety. Iron can not be used instead of planks to prevent sliding.
• 4.when lifting requires a smooth, heavy load slightly to check whether there is any abnormal situation, if there is no abnormal circumstances to continue jacking. Do not arbitrarily lengthen handle or excessive operation.
• 5.Without overloading or exceeding height. When the sleeve appears red line, indicating that has reached the rated height, should stop lifting.

FEATURES :

1.  SMOOTH LACQUER SURFACE

• The surface of hydraulic ram cylinder is painted with lacquer, which is not easy to rust.
• Made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use.

2. ANTI-DUST COVER & ZG3/8 CONNECTOR

• Anti-dust cover can reduce pollution, thereby prolonging the service life of hydraulic cylinder.
• The joint adopts threaded ZG3/8" joint and has a compact structure.

3.Multi Section Design Multi Section Design
