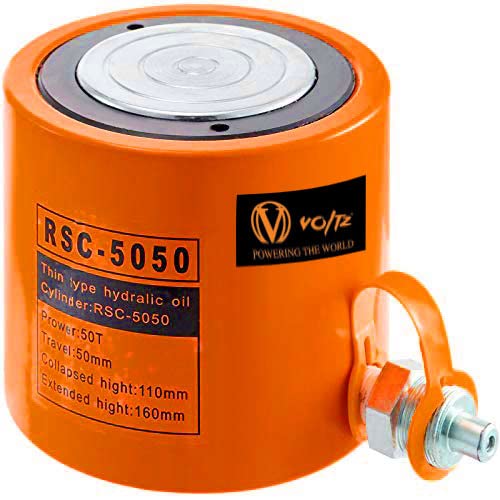

VOLTZ RSC 5050700 Hydraulic cylinders 50T 2Inch Stroke Hydraulic Cylinder Jack Solid With Hand pump Single Acting Hydraulic Ram Cylinder 50mm Hydraulic Lifting Cylinders (50T 2Inch)

The VOLTZ RSC 5050700 Hydraulic Cylinder Jack – 50 Ton, 2-Inch Stroke, Single Acting with Hand Pump is a powerful and reliable solution for heavy-duty lifting and pressing tasks. Designed for professional use, this hydraulic cylinder combines solid construction with exceptional functionality, making it ideal for industrial and automotive applications.

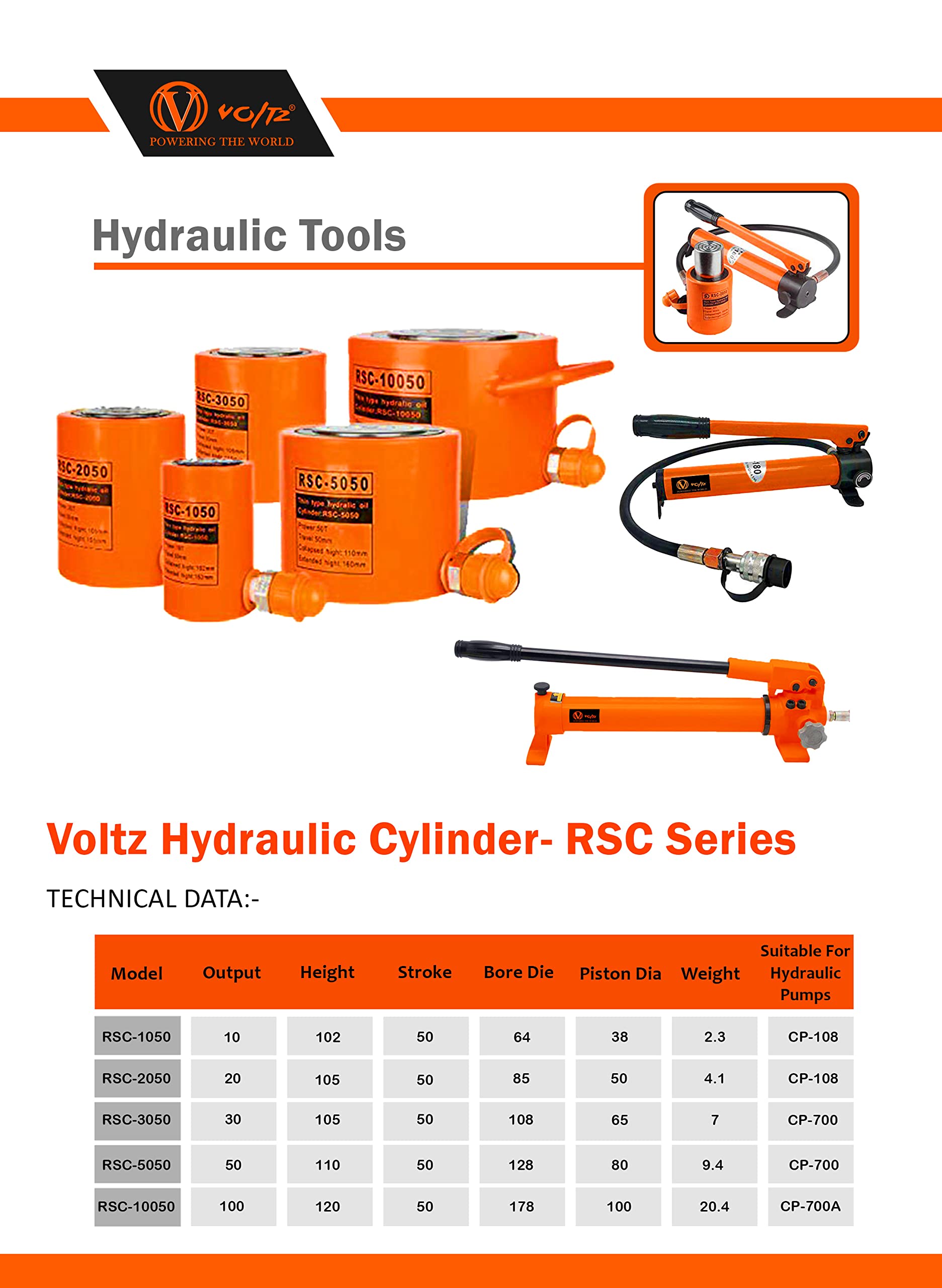

Specifications:

1. Capacity: 50 Tons (50,000 kg)
2. Ram Stroke: 50mm (2 inches)
3. Total Height: 112mm
4. Outside Diameter: 128mm
5. Inner Diameter: 80mm
6. Weight: 10kg

Features:

Superb Lifting Force: This hydraulic cylinder's 50-ton capacity allows it to perform well while lifting huge items in a range of settings.

Quality Stroke: For key tasks like lifting, bending, and styling, the 2-inch stroke offers correct control.

Strong Building: Made with premium materials, it guarantees security and lifetime in demanding situations.

Flexible Pump It: Provides freedom for a range of operating settings by performing smoothly with electric, foot, or manual pumps.

Single-Acting Design: Ideal for tasks requiring force in one direction, such as lifting or pressing operations.

Applications:

The VOLTZ RSC 5050700 Hydraulic Cylinder is a versatile tool for riggers, welders, and fabricators. It's well-suited for applications like heavy equipment repair, industrial machinery maintenance, and automotive body and frame work. It performs exceptionally well in environments requiring high-force hydraulic operations.

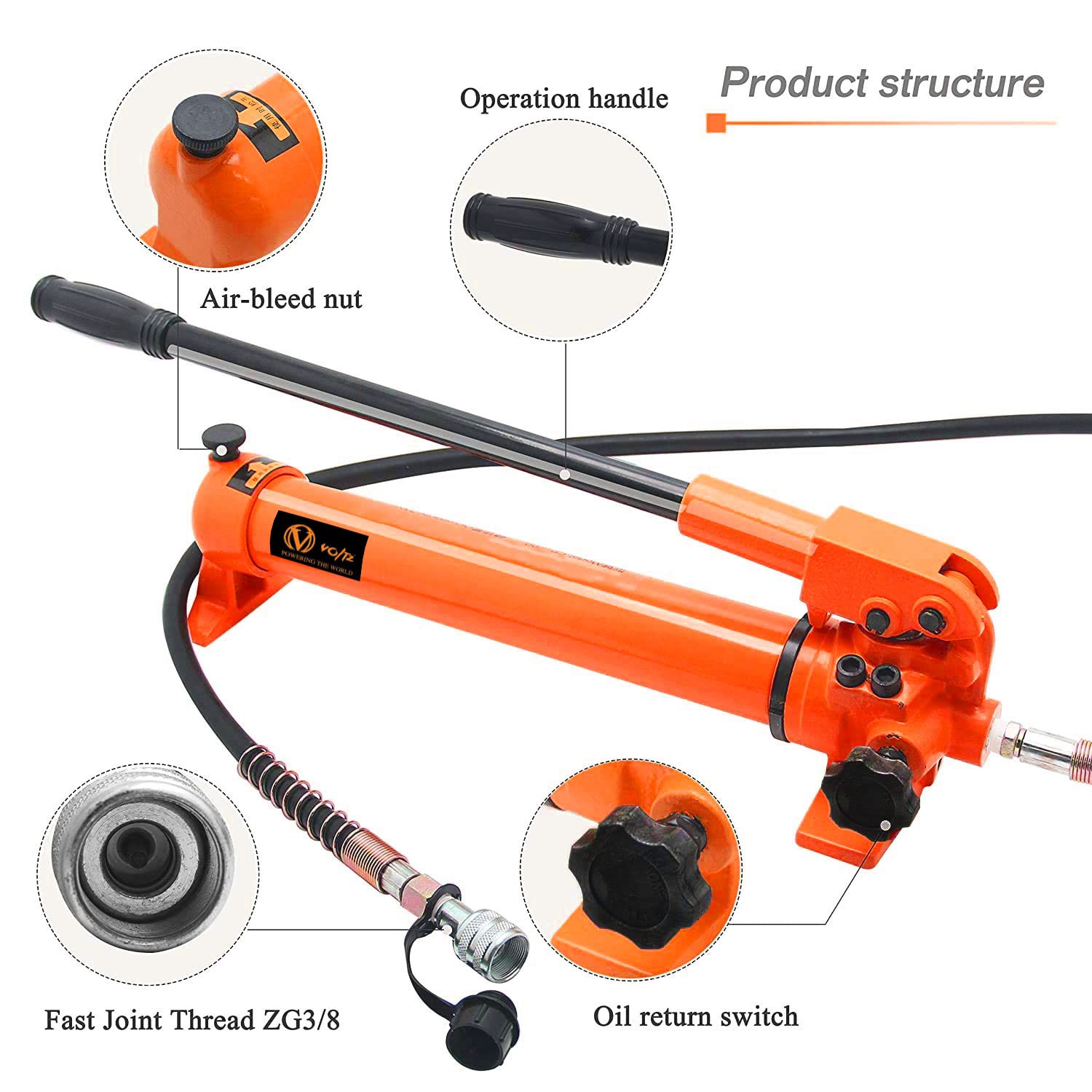

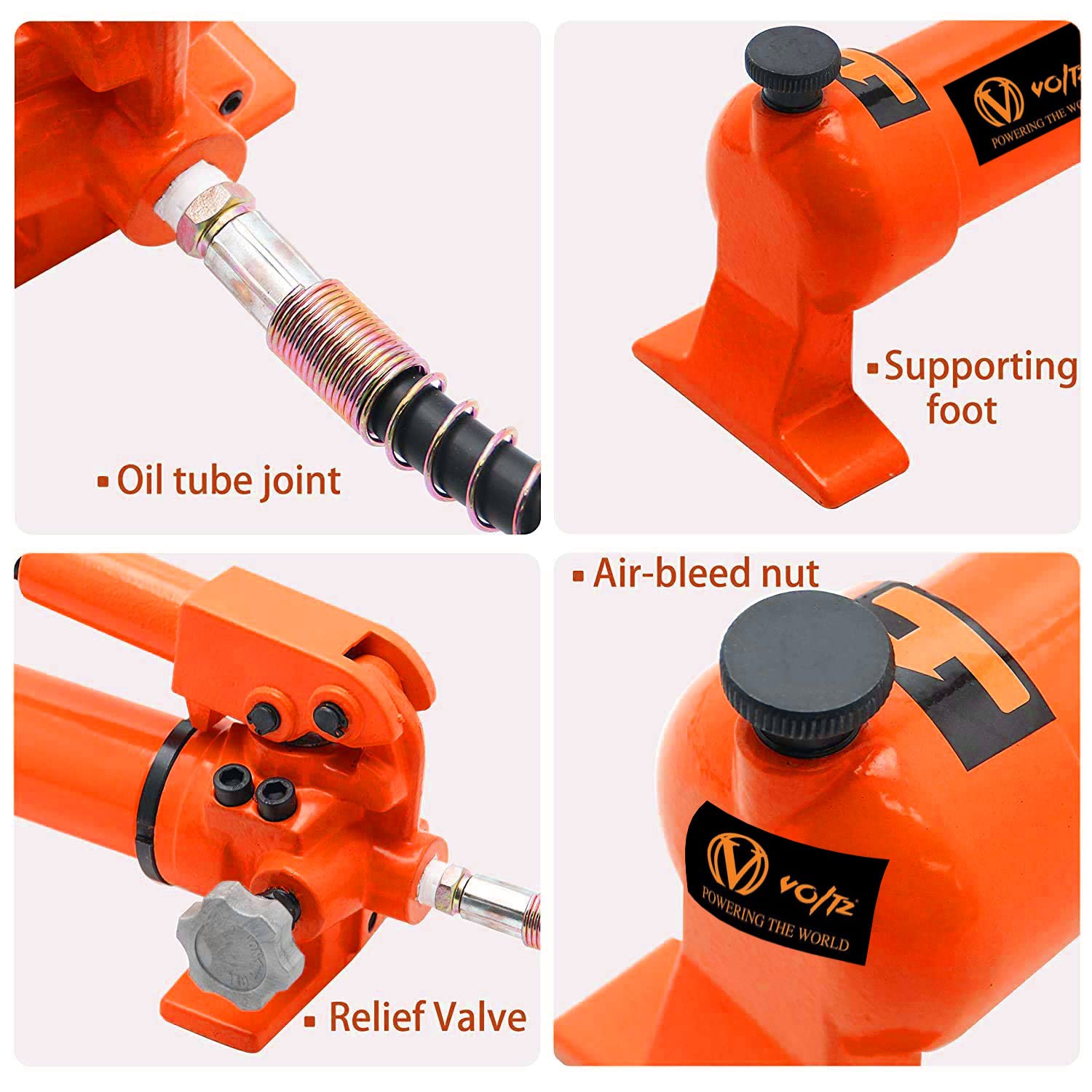

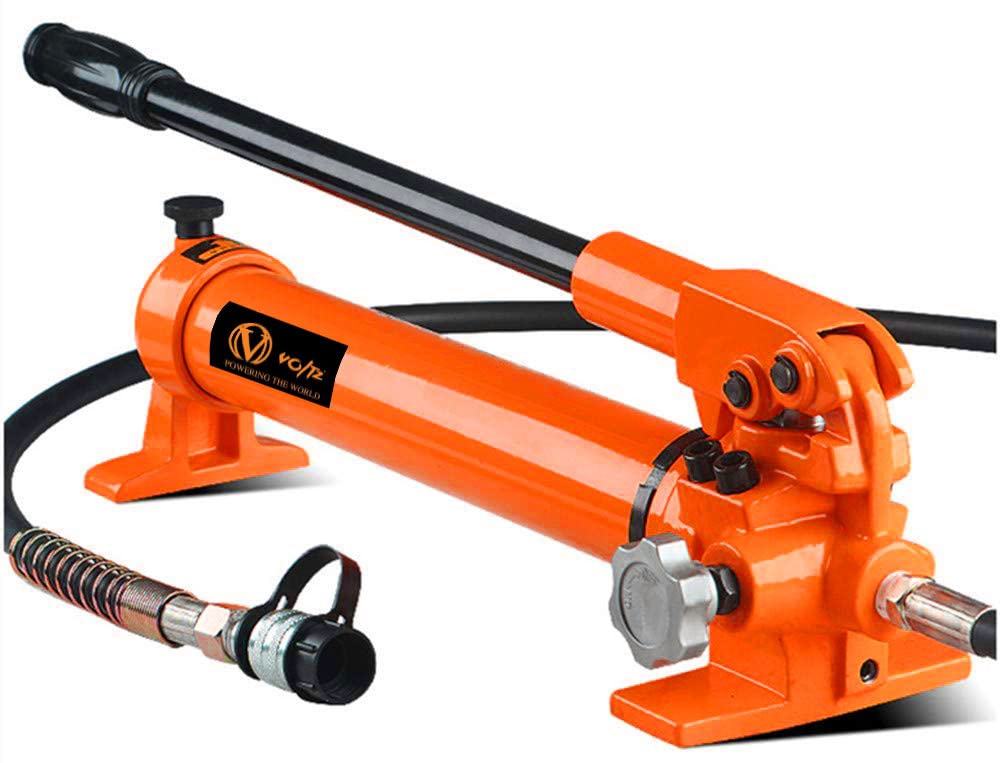

Hydraulic Pump (CP-700) Specifications:

1. High Pressure: 700kg
2. Low Pressure: 20kg
3. Oil Storage Capacity: 900cc
4. High-Pressure Flow: 2.3cc
5. Low-Pressure Flow: 13cc
6. Weight: 9.5kg

Why Choose VOLTZ?

With dependable performance across every one of sectors, this hydraulic cylinder is the the height of hydraulic cylinder types. It is a reliable tool for professionals and guarantees consistent results thanks to its strong hydraulic cylinder cylinder and strong structure.

For those comparing hydraulic cylinder prices, the VOLTZ RSC 5050700 offers exceptional value for its specifications and durability. While not a double-acting hydraulic cylinder, its single-acting design is perfectly suited for many heavy-duty lifting and pressing tasks.

Trust VOLTZ, a leading name among hydraulic cylinder manufacturers, to deliver premium quality and performance for your industrial needs.
