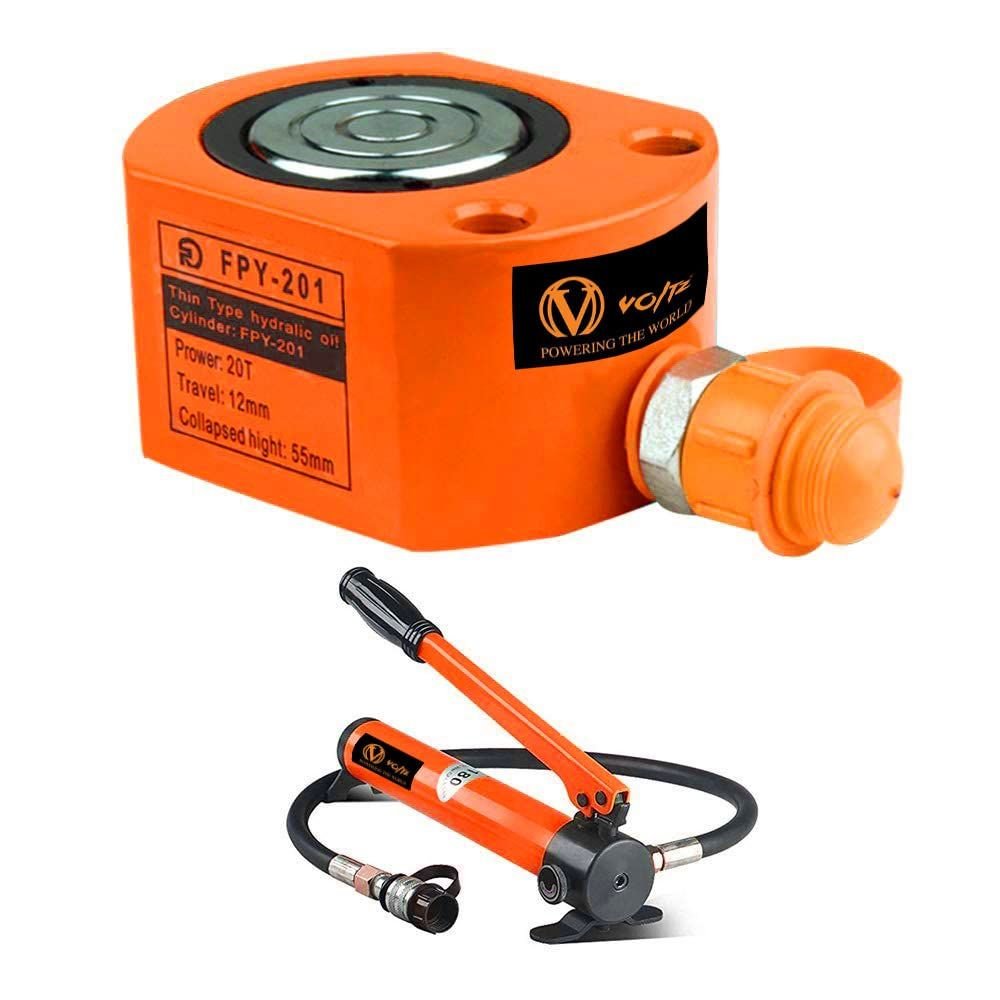

VOLTZ Tools FPY-20180 Hydraulic Cylinder Jack 20T Ultra-Thin Hydraulic Lifting Cylinder Ram Stroke 12mm for Bridges/Building/Machinery Industries with Hand Pump

VOLTZ FPY 20180 Hydraulic cylinder with pump .

Technical Data of the Hydraulic Jack  Model: FPY-20 Tonnage: 20T Stroke: 12mm Effective Area: 33.16c , Inner diameter: 65mm Outside Diameter: 102 * 80mm Body Height: 62mm Weight: 2.9kg Matching pump: CP-180  Description of the Pump -  The CP-180 manual hydraulic pump is a small hydraulic pump that converts manual mechanical energy into hydraulic pressure energy. The pedal and spring return mechanism can be added to the pump and becomes a foot operation. In the case of matching cylinders and special tools, several operations such as lifting, bending, straightening, shearing, riveting, assembling, disassembly and some constructions can be performed. The main characteristics of the pump are: manual, high pressure, ultra small, easy to transport, easy to operate and with a wide range of applications.   Pump Technical Data -  Model: CP-180 Oil storage capacity: 400cc High pressure: 60kg / c? High pressure flow: 20cc Net weight / gross weight: 3.5Kg / 4Kg This hydraulic cylinder is often used in power, chemical, steel, bridge, machinery and other industries, not for the CAR. (1). The utility model has the advantages of smaller size and greater working capacity, especially in the narrow space position, and has the functions of portability, flexibility, big jacking force, etc. (2). When the hydraulic jack is used, the bottom should be flat and tough. Oil free wood panels to expand the pressure surface, to ensure safety. Iron can not be used instead of planks to prevent sliding. (3). When lifting requires a smooth, heavy load slightly to check whether there is any abnormal situation, if there is no abnormal circumstances to continue jacking. Do not arbitrarily lengthen handle or excessive operation. (4). Without overloading or exceeding height. When the sleeve appears red line, indicating that has reached the rated height, should stop lifting.

Features :-

• [Lightweight and Compact]- Small and easy to carry, capable of working in a narrow space.
• [Painted Surface]- The surface is made of baking paint, high corrosion resistance.
• [Dust Ring]- Reduces pollution and extends the life of the hydraulic cylinder.
• [Multiple Direction Placing]- The cylinder has two holes for fixed use, and can also be used upside down or sideways.
• [Equipped Hydraulic Pump]- This hydraulic jack must be used with a hydraulic pump, otherwise the oil pressure is not sufficient to withstand normal use. The 10T/20T must be used with CP-180 hydraulic pump
