Brand
Category: CYLINDERS
ASIN: VOLTZ RSC-20100 Lifting Jack with CP 700B
Rs.17000Rs.26999
VOLTZ RSC-20100 Lifting Jack with CP 700B
Excluding GST

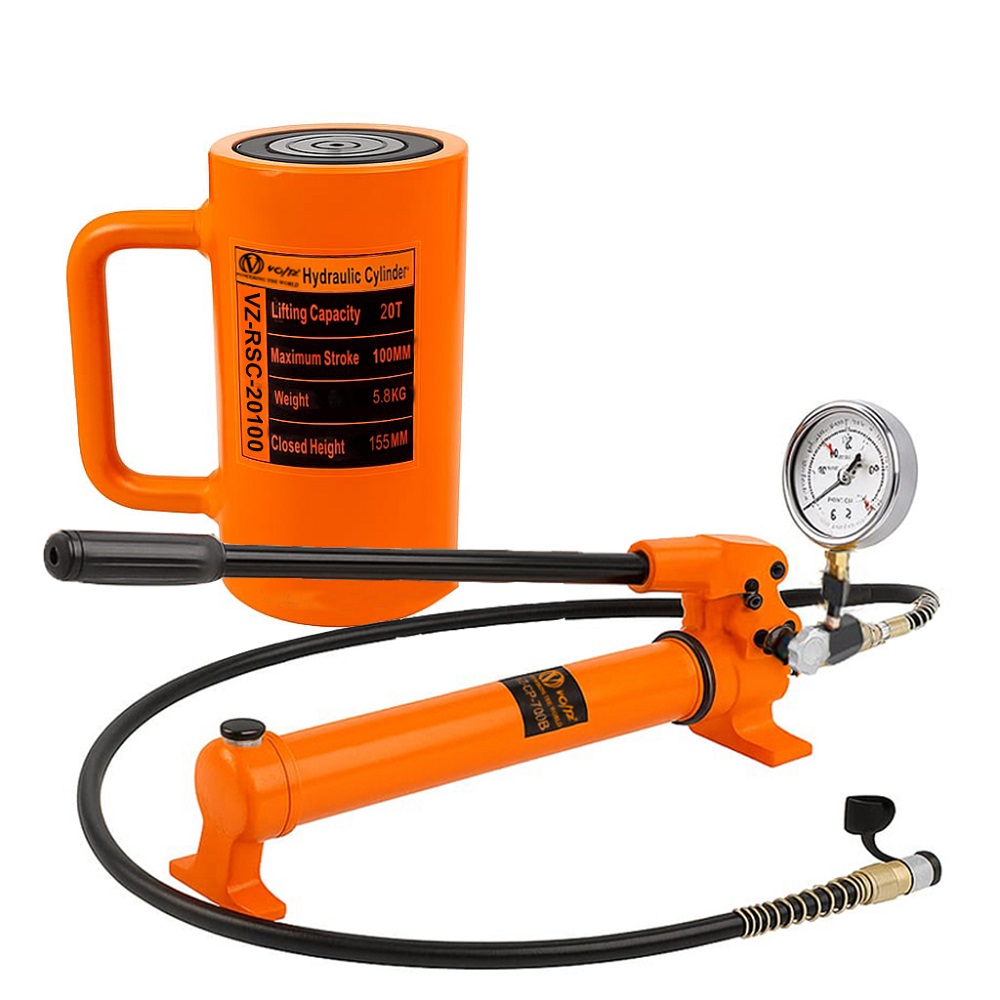

VOLTZ VZ-RSC-20100 Hydraulic Lifting Jack with CP 700B Pressure Gauge Hydraulic Pump Single Acting Ram 100mm Lifting Hydraulic Cylinder Jack Solid with Hand Pump 20 TON

Specifications:

1. Capacity: 20Ton

2. Ram stroke: 100mm/4in

3. Self Height: 155mm/6.1in

4. Outside Diameter: 84mm/3.3in

5. Inner Diameter: 50mm/2in

6. Item Weight: 6kg

7. Total height - 255mm

8. Matching pump: CP-700,

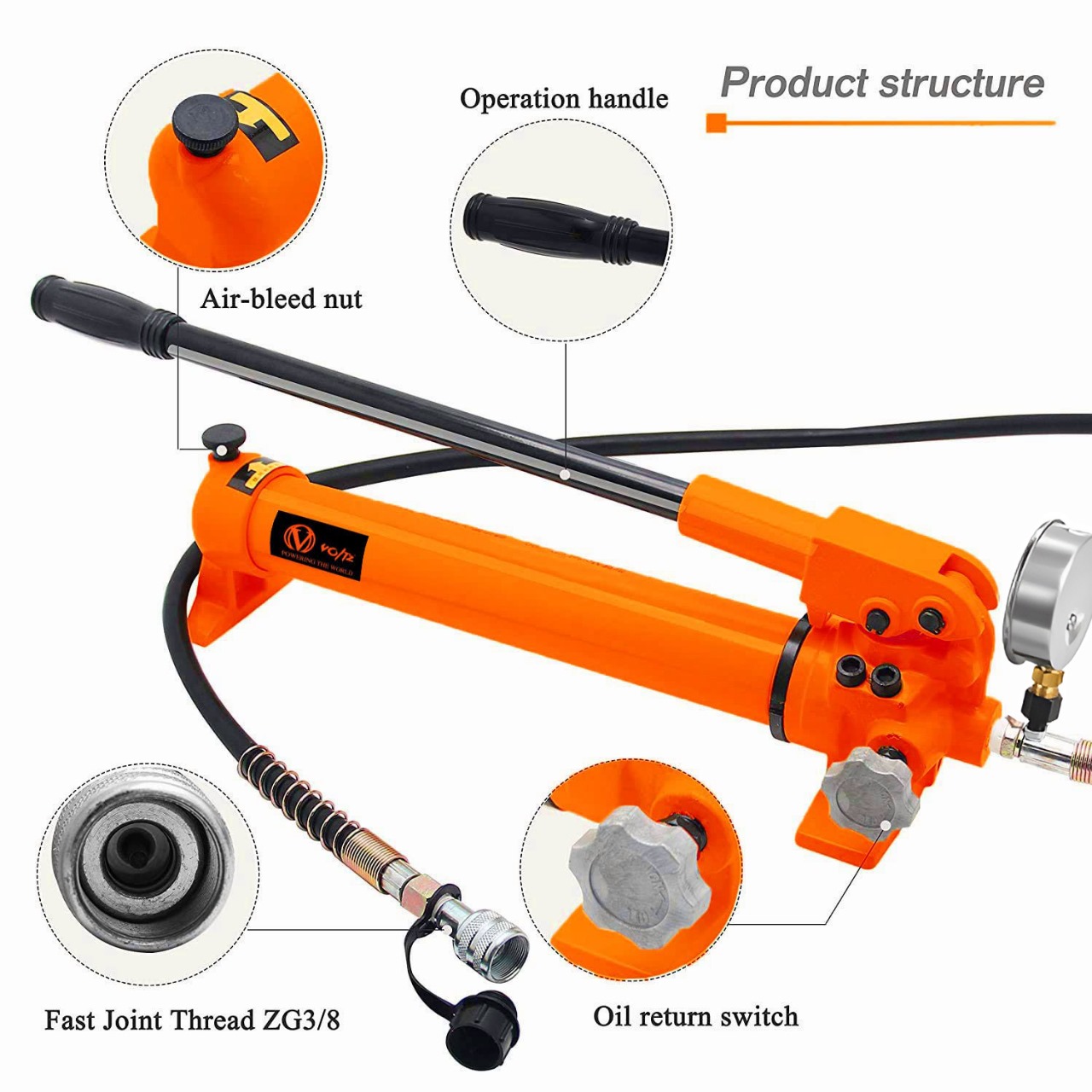

Description of the Pump :- Its compact yet robust design makes it ideal for professionals needing a hydraulic pump bed setup or those comparing the difference between hydraulic pump and hydraulic motor for their applications. Featuring a high-pressure mechanism, the CP-700B ensures efficiency, whether you're working with jacks or cylinders. Looking for hydraulic pump price details? The VOLTZ CP-700B offers premium performance at competitive rates. Recognized for its reliability, it stands as a key tool for industrial operations where precision, power, and portability matter.

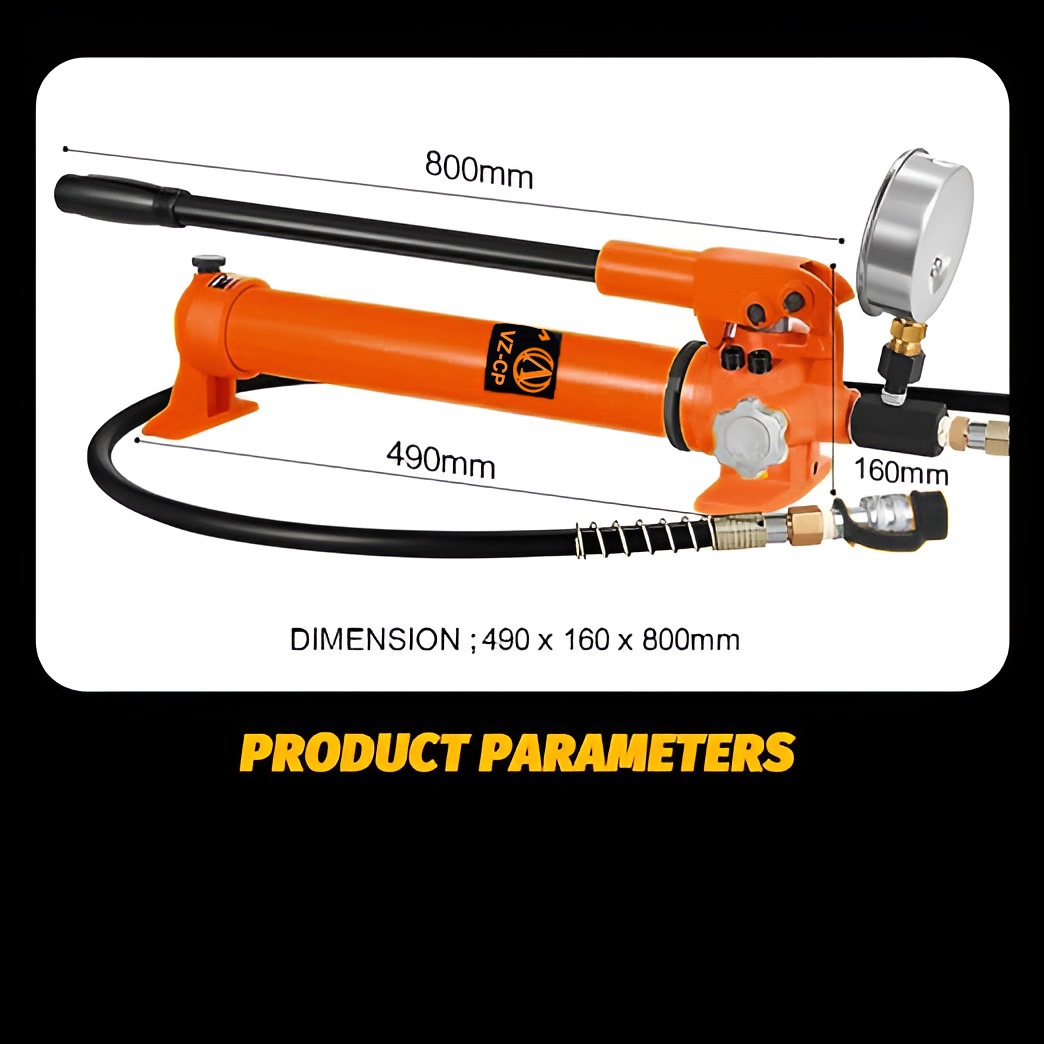

Pump Technical Data :-

1.Model: CP-700B High pressure pressure: 70MPA

2.Low pressure pressure: 20MPA

3.Oil storage capacity: 700cc

4.High pressure flow: 2.3cc

5.Low pressure flow: 13cc

6.Net weight: 9.2Kg

Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 20ton Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment VOLTZ tools

About This Item :-

  • MAX CAPACITY--20 Ton lifting capacity with a stroke of 4"
  • SIZE--Self Height: 155mm, Outside Diameter: 84mm ,Inner Diameter: 50mm
  • HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
  • HAND PUMP - Model: CP-700B Oil storage capacity: 700cc High pressure: 70MPa
  • GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop

1.Free Shipping & Return

We offer free shipping for products.

2.Free and Easy Returns

We guarantee our products and you could get back all of your money anytime you want in 10 days.

  • VOLTZ

  • Hydraulic Cylinder with hand pump

  • RSC-20100

  • CP-700B

  • 100mm/4inch

  • 155mm/6.2inch

  • 255mm/10.2inch

  • 84mm

  • 50mm

  • 65 x 20 x 20cm

  • 16kg
