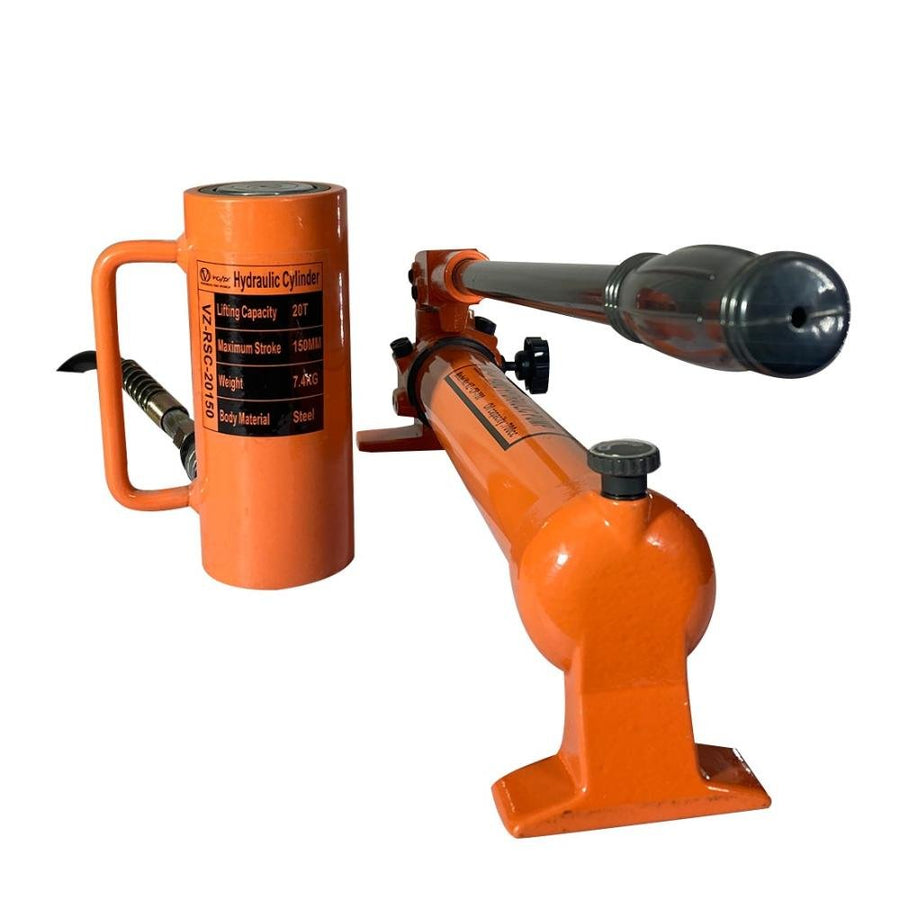

VOLTZ VZ-RSC-20150 Hydraulic Lifting Jack with CP 700 Hydraulic Pump Single Acting Ram 150mm Lifting Hydraulic Cylinder Jack Solid with Hand Pump 20 TON (6inch)

Description  : 20T 6" Stroke Solid Hydraulic Cylinder Jack Single Acting Specification: Capacity: 20T/44000LBS Ram stroke: 150mm/6in Self Height: 205mm/8.1in Outside Diameter: 84mm/3.6in Cylinder Diameter: 60mm/2.5in , Inner Diameter - 50mm, Item Weight: 7.4kg

Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 20T/44000LBS Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment .

VOLTZ Hand Pump Technical Data :  CP-700 High pressure pressure: 700kg /

1. Low pressure pressure: 20kg /

2. Oil storage capacity: 900cc

3.High pressure flow: 2.3cc

4.Low pressure flow: 13cc

5.Net weight: 9.5Kg

SPECIFICATIONS :

• MAX CAPACITY--20 Ton lifting capacity with a stroke of 6"
• SIZE--Self Height: 205mm, Total Height with stroke :- 355mm /14.2" Outside Diameter: 3.6 inch ,Inner Diameter: 2 inch
• HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
• HAND PUMP - Model: CP-700 Oil storage capacity: 900cc High pressure: 700kg /
• GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop
