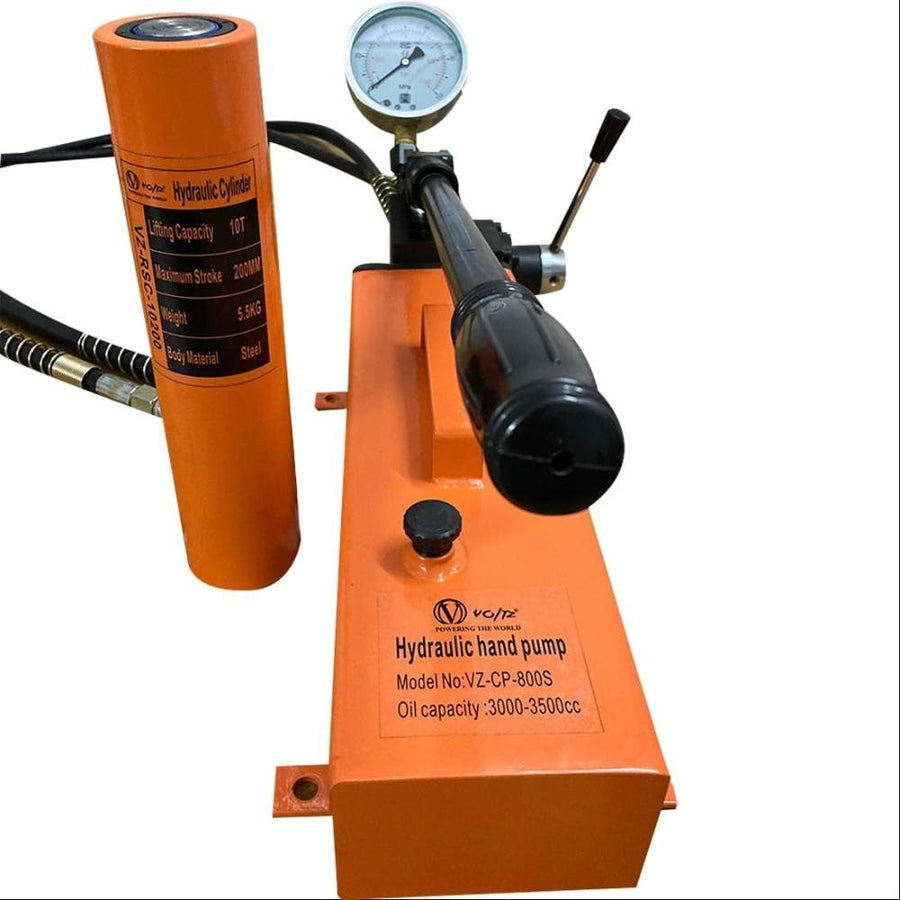

VOLTZ RSC-10200 with VZ-CP-800S Hand Pump 10T 8" Stroke Solid Hydraulic Cylinder Jack Double Acting Specification: Capacity: 10Ton Ram stroke: 200mm/8in , Self Height - 290mm/11.5" ,Total Height with stroke : 490mm/19.5in Outside Diameter: 65mm/2.7in Inner Diameter: 32mm/1.25in Item Weight: 5.5kg Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 10ton Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment VOLTZ tools

1.Technical Data : Model: VZ-CP-800 with pressure Gauge (Double acting Manual Pump)

2.Oil storage capacity: 3000cc

3.High pressure: 70kg mpa ,

4.Low pressure : 20 Mpa ,

5.Standard oil pipe: 1.9mtr

6.long Net weight / gross weight: 21Kg / 22Kg

About this item

• MAX CAPACITY--10 Ton lifting capacity with a stroke of 8" (200mm)
• SIZE--Total Height with stroke : 490mm, Outside Diameter: 65mm ,Inner Diameter: 32mm
• HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
• Hand Pump Model: VZ-CP-800 (Hand Pump) Oil storage capacity: 3000cc High pressure: 70kg mpa , Low pressue : 20 Mpa
• GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop
