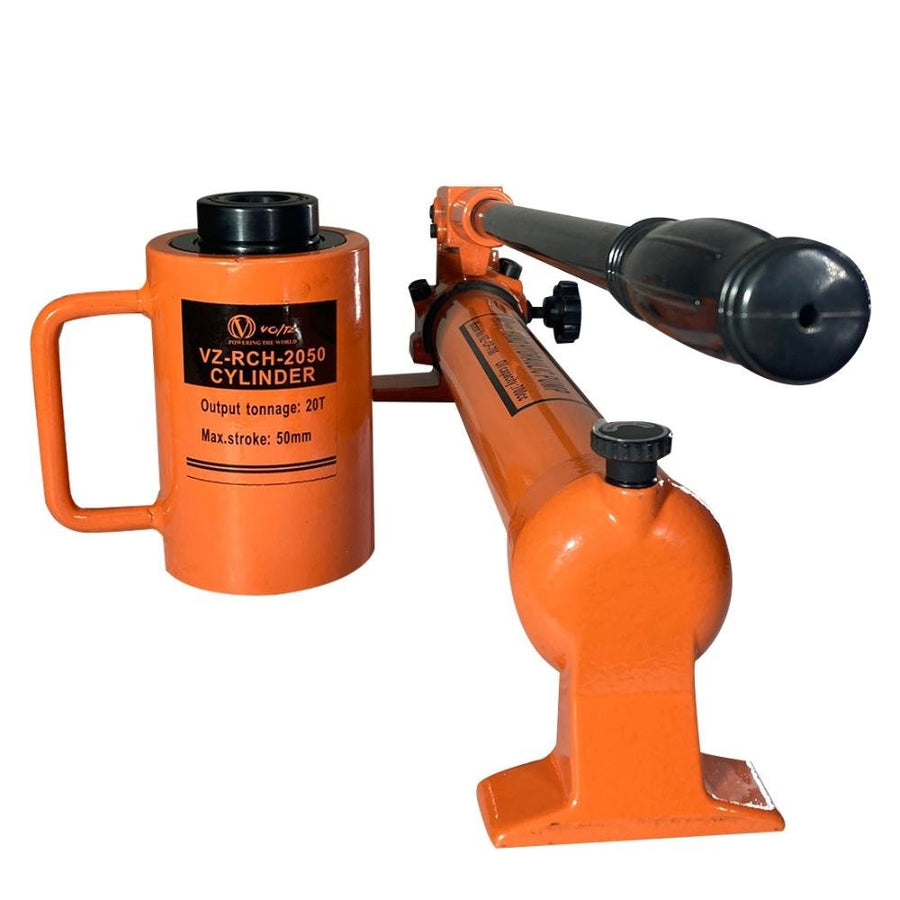

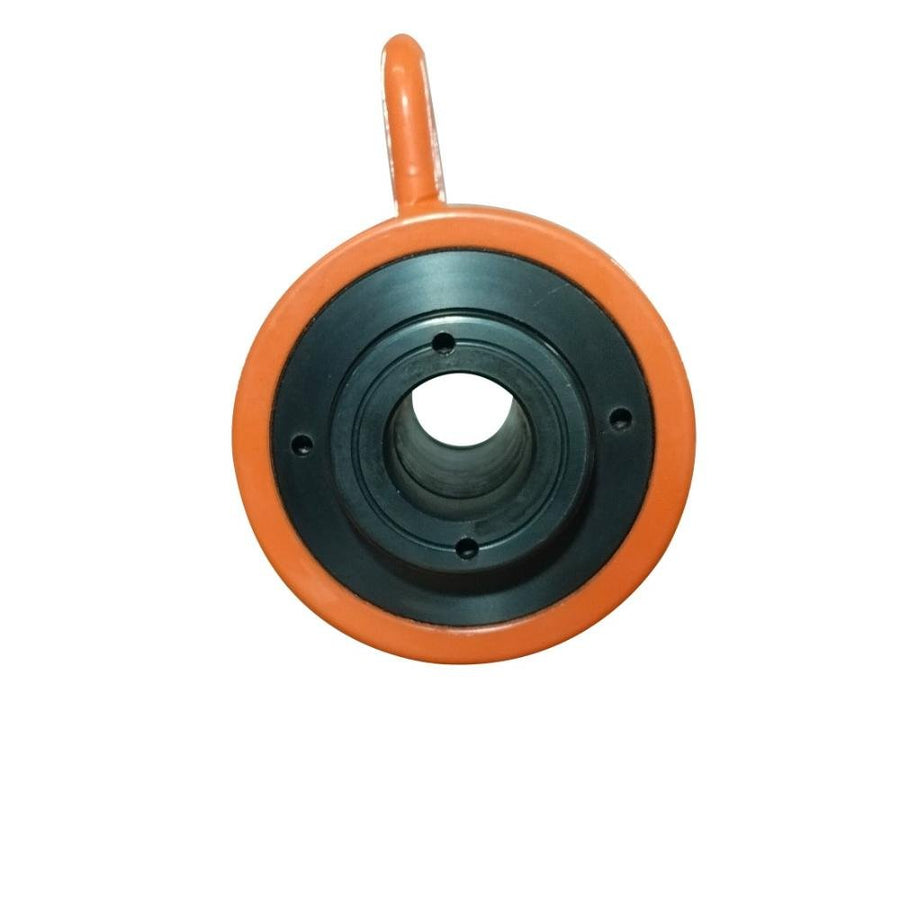

VOLTZ VZ-RCH-2050 Hydraulic Hollow Hole cylinder with VZ-CP-700 Hand pump

Description  : 20T 2" Stroke Solid Hydraulic Cylinder Jack Hydraulic Hollow Hole Cylinder Jack  Single Acting

Specification:

1. Capacity: 20T/44000LBS

2. Ram stroke: 50mm/2in

3. Self Height: 152 mm/6.1in

4. Outside Diameter: 98 mm/3.9in

5. Cylinder Diameter: 75 mm/3 in

6. Hole Diameter - 28 mm

7. Item Weight: 6.7 kg

Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 20T/44000LBS Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment .

VOLTZ Hand Pump

1.Technical Data :  CP-700

2.High pressure pressure: 700kg /

3. Low pressure pressure: 20kg /

4.Oil storage capacity: 900cc

5.High pressure flow: 2.3cc

6.Low pressure flow: 13cc

7.Net weight: 9.5Kg

SPECIFICATIONS :

• MAX CAPACITY--20 Ton lifting capacity with a stroke of 2"
• SIZE--Self Height: 152mm, Total Height with stroke :- 202mm /8.1" Outside Diameter: 3.9inch ,Hole Diameter : 28mm
• HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
• HAND PUMP - Model: CP-700 Oil storage capacity: 900cc High pressure: 700kg /
• GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop
