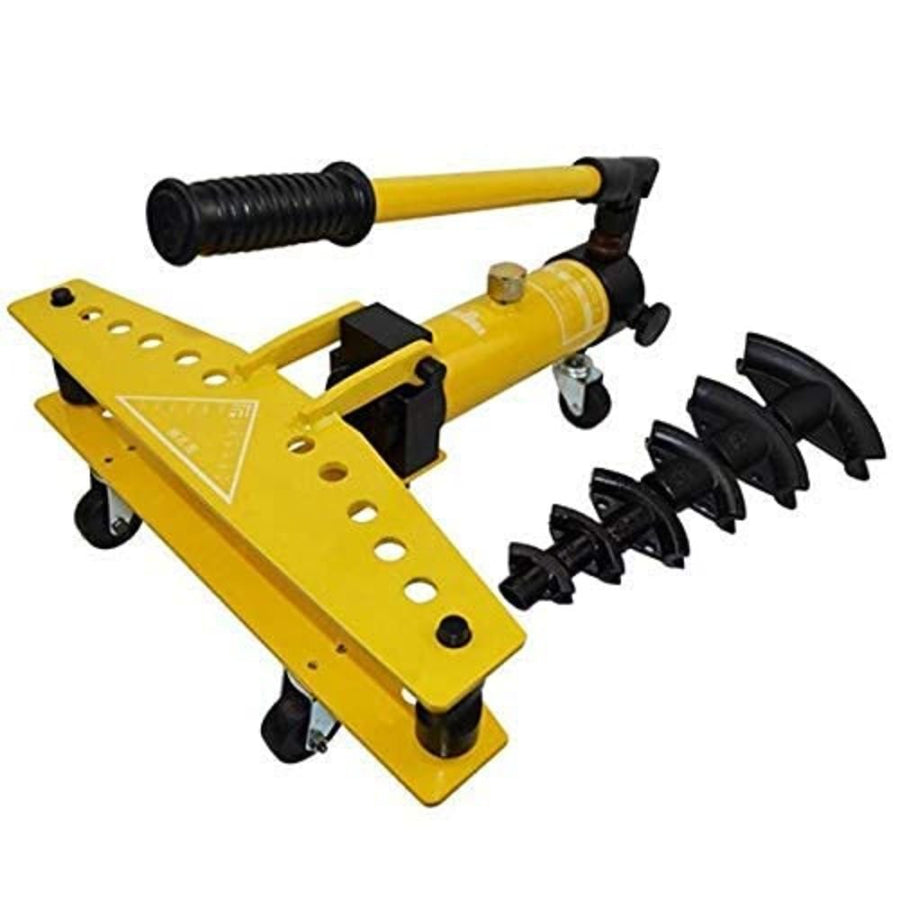

VOLTZ VZ-HPB 2 Pipe Benders 16 ton Manual Hydraulic Pipe Bender upto 60mm Manual Pipe Bending Machine Mechanical Pipe Bender Tube Bender Tube Bending Machine (External diameter- 22 to 60mm)
VOLTZ VZ-HPB-2 Hydraulic Pipe bender Specifications: Product model: 2 inch Output: 16T Working schedule (MM): 230 Pipe wall thickness (MM): 2.75-4.5 Working range (MM): 22-60 Gross weight (KG):50 ?Mold configuration: [6 DIES]: 22mm/28mm/34mm/42mm/48mm/60mm ?Mold selection method: 1 According to the diameter of the pipe that you need to bend, select the size of the pipe bender corresponding to the standard mold; 2 If there is no corresponding mold, you can choose a mold with a larger size (such as 20M optional 22MM mold) 3 Check whether the wall thickness is suitable according to the corresponding mold size (can float 0.5) ?Application: Suitable for galvanized pipe, seamless steel pipe, water pipe, iron pipe, wire-seeking pipe, gas pipe, steel pipe, aluminum pipe Not suitable for bending thin-walled tubes, steel tubes that do not meet the curved outer diameter, and non-ferrous metal tubes
- Flexible maximum angle up to 90°, OUTPUT:16t
- Ductile iron mold: high strength, high hardness, not easy to damage
- Adjustable column: Adjustable column for bending tubes of different thicknesses
- High and low pressure plunger: low speed stroke speed, high speed stroke speed
- Mold configuration: [DIES]-- 22-60mm
Manual Pipe Tube Bender
6 dies 22 - 60 mm (external diameter) & pipe thickness: 2.75-4.5 mm
VOLTZ manual pipe bender, a helpful tool that meets your pipe-bending demands. This equipment, made of solid metal with advanced coating, can assure a longer lifespan. Much less labor is needed because of longer handle is deployed. With 6 dies, you can expect more usages as they can cope with more tubes of different sizes.
