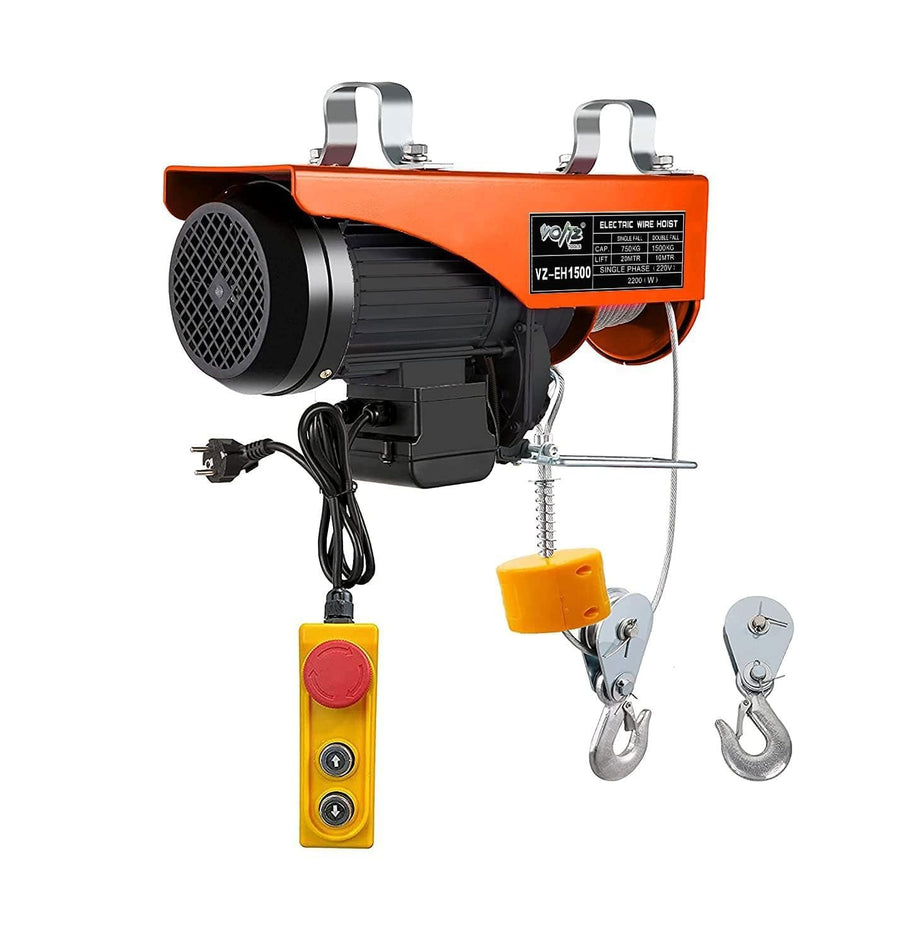

VOLTZ VZ-EH 1500 X 20mtr Mini Electric Hoist for Small Job Works and Domestic Use Single Phase, 1500 kg (Multicolour, PA 1500)
VOLTZ VZ-EH-1500 Mini Electric Hoist (20 Meter Wire Rope) – Compact Power for Domestic and Light Industrial Use
The VOLTZ VZ-EH-1500 Mini Electric Hoist is a compact, high-performance lifting solution designed specifically for small job works, workshops, garages, and domestic applications. Engineered for light-duty lifting and handling tasks, this mini hoist offers impressive lifting capacity, advanced safety features, and easy operation, all within a durable and efficient design.Built to the high-quality standards synonymous with VOLTZ Tools, this hoist provides smooth lifting performance, reliable operation, and enhanced durability — making it the perfect choice for individuals and small businesses seeking professional results at an affordable price.
Key Specifications
| Specification | Details |
|---|---|
| Product Type | Mini Wire Rope Hoist |
| Model No. | VZ-EH-1500 |
| Capacity | 750 kg (Single Line) / 1500 kg (Double Line) |
| Lifting Speed | 10 m/min (Single Line) / 5 m/min (Double Line) |
| Lifting Height (Max) | 20 m (Single Line) / 10 m (Double Line) |
| Rope Diameter | 8 mm |
| Voltage | 220/230V, 50Hz |
| Power | 2200W |
| Motor Winding | 100% Copper |
| Color | Orange and Black |
| Accessories Included | Nut Bolts, Clamps, Mounting Hardware |
| Usage | Small job works and domestic applications only |
| Restriction | Strictly not for carrying people |
Product Overview
The VOLTZ VZ-EH-1500 Mini Electric Hoist delivers exceptional lifting performance in a compact and durable form factor. Designed for light-duty applications, this electric hoist is ideal for small workshops, garages, and household projects where reliable lifting support is required.
This model combines high efficiency, safety, and ease of use, allowing users to lift and move objects quickly and securely without the need for manual effort. Its powerful motor and strong wire rope ensure smooth, consistent lifting performance across a range of tasks.

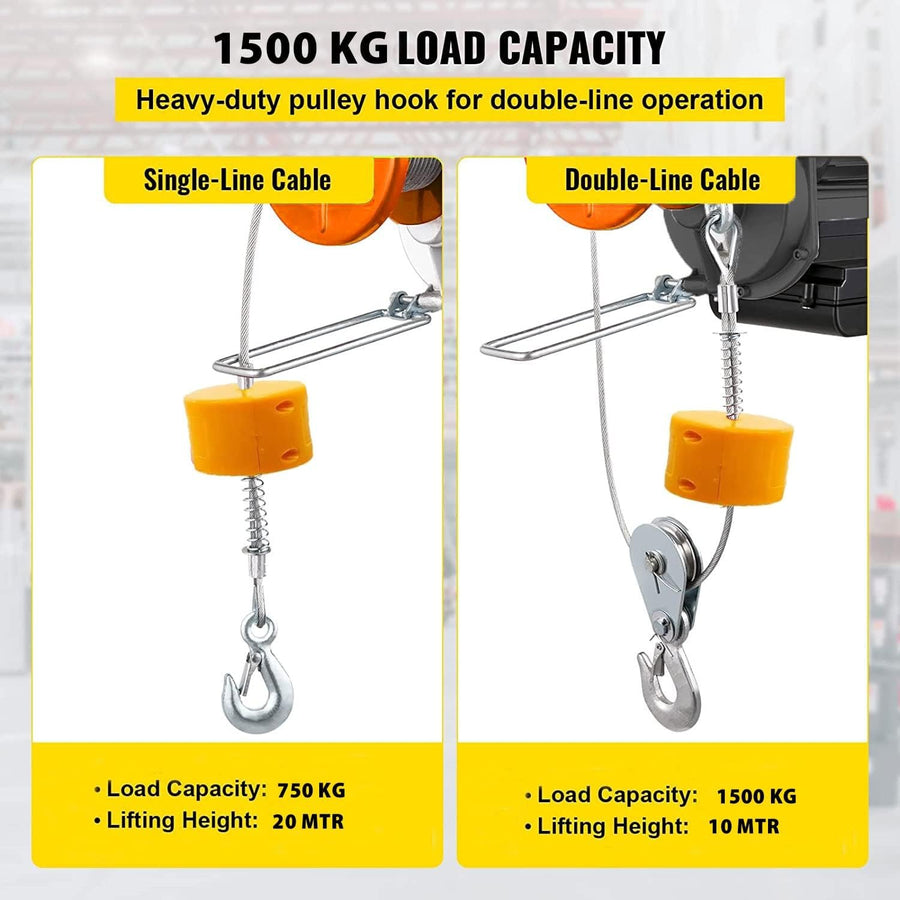

High Load Capacity and Efficiency
Despite its compact size, the VZ-EH-1500 packs impressive lifting power.
-
In single-line configuration, it can lift up to 750 kg at a speed of 10 meters per minute, reaching a maximum height of 20 meters.
-
In double-line configuration, it doubles the load capacity to 1,500 kg, with a lifting speed of 5 meters per minute and a maximum height of 10 meters.

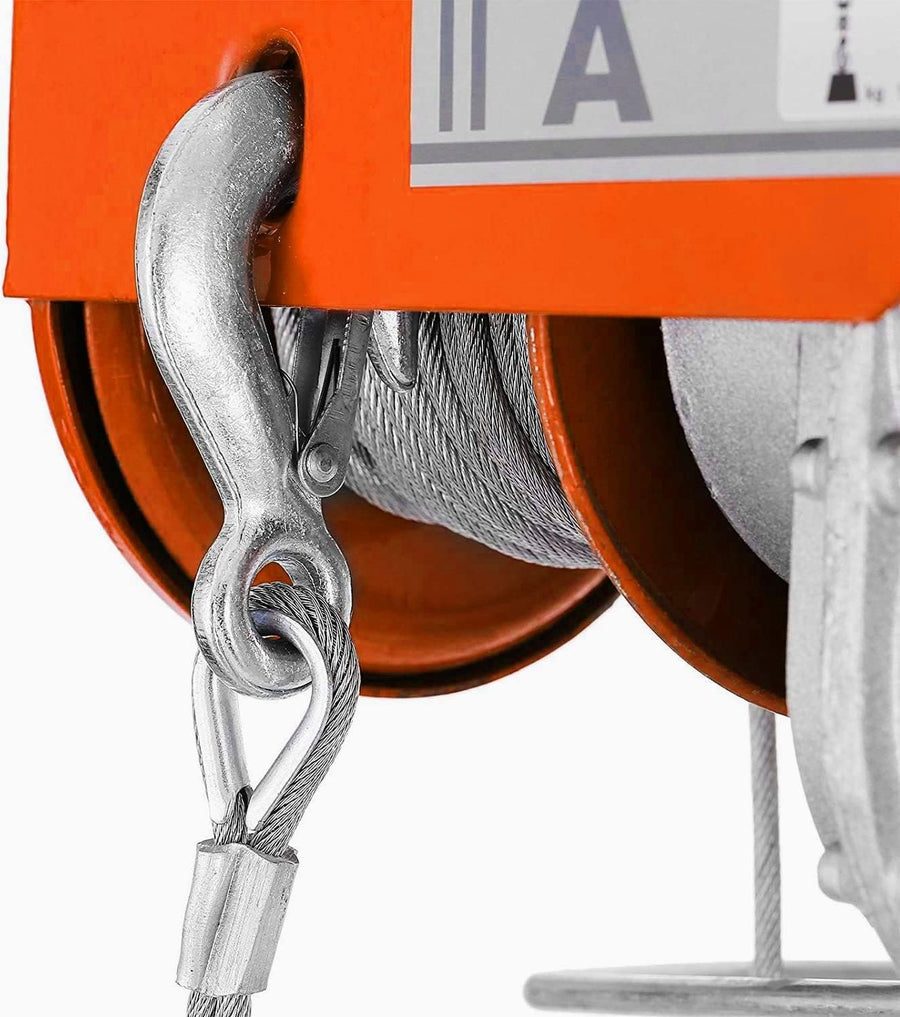

The galvanized steel hook and pulley system provide high load-bearing strength, ensuring stability and safety during lifting operations. This makes it ideal for small workshops, domestic work areas, and repair setups.

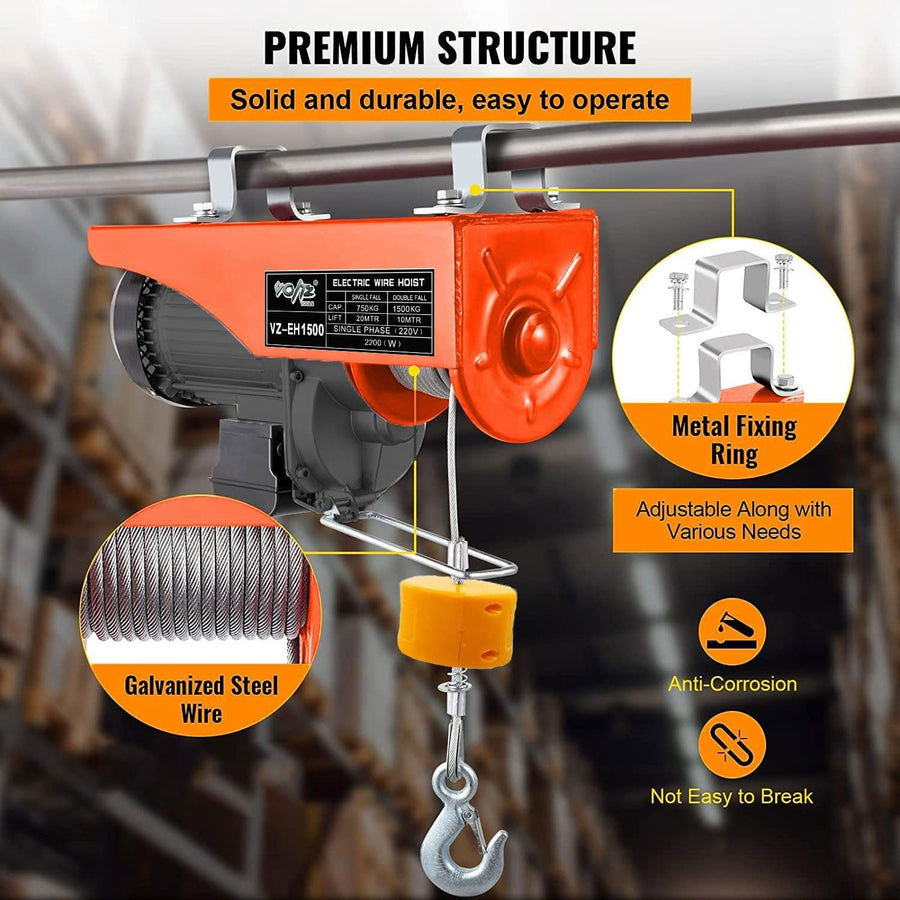

Durable Construction and Design
Crafted with a rugged steel outer shell, the VOLTZ Mini Hoist is built to withstand light industrial use and ensure long service life. The included mounting hanging clamp brackets and reliable hardware make installation secure and easy, allowing the hoist to be fixed to beams or frames with confidence.Its compact and lightweight design makes it easy to install, relocate, and operate in tight spaces, making it a convenient solution for domestic users and small-scale job sites.

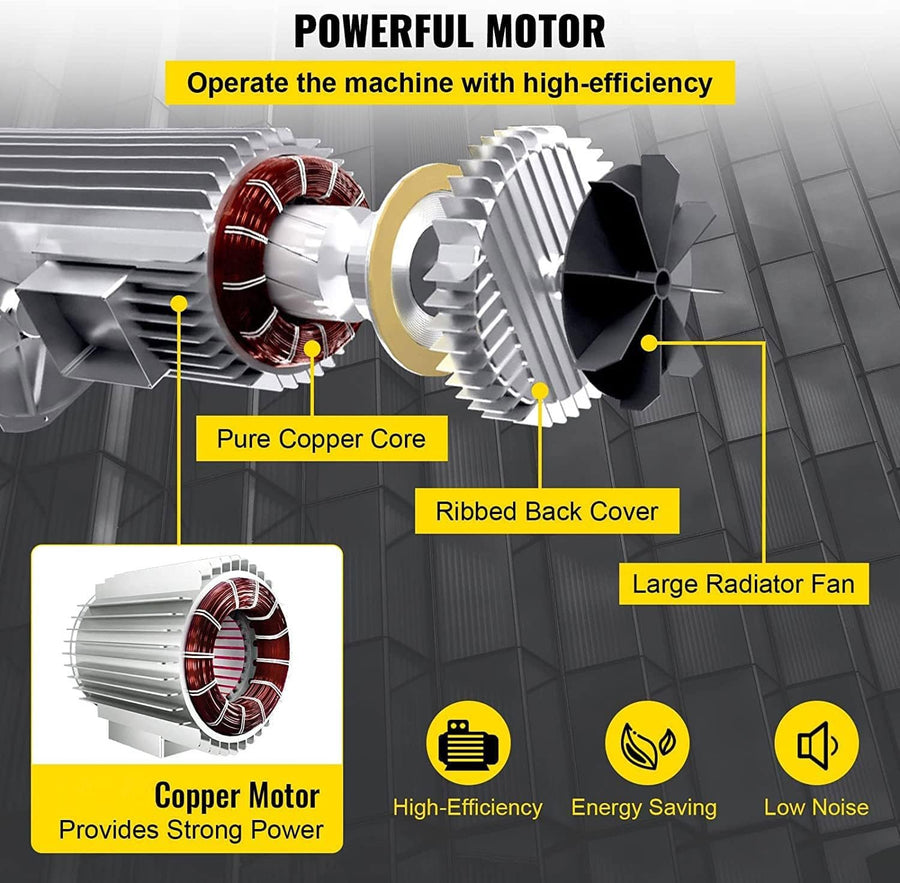

High-Performance Copper Motor
The VZ-EH-1500 features a powerful 2200W copper-core motor engineered for optimal performance and heat management. The copper winding ensures:
-
High electrical and thermal conductivity
-
Low energy loss and minimal heat buildup
-
Superior torque and stable lifting performance
The built-in cooling fan improves airflow and extends the life of the motor, even under frequent or prolonged use.

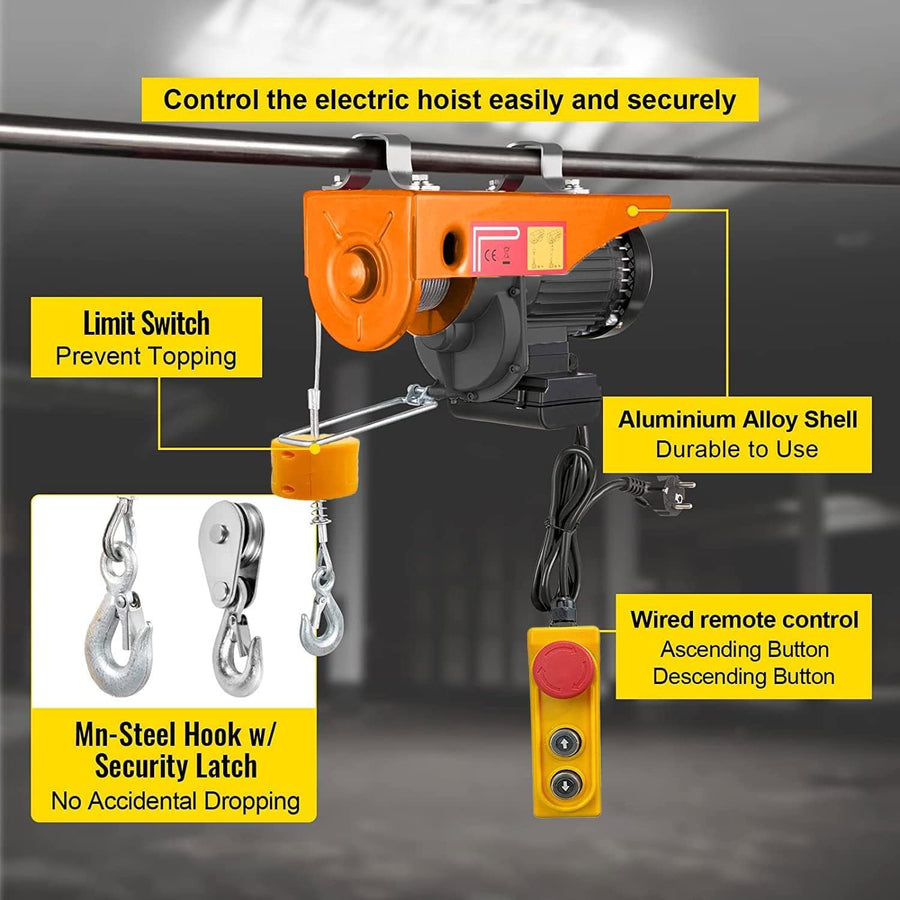

Safety and Reliability
Safety is at the core of every VOLTZ product, and the VZ-EH-1500 is no exception.
This hoist includes a built-in safety brake mechanism designed to secure the load instantly in case of power failure, ensuring the lifted object stays in place.A stopper device prevents over-lifting or topping, protecting both the operator and the hoist. The durable hooks and mounting brackets ensure secure attachment and balanced load control at all times.
Applications
The VZ-EH-1500 is ideal for:
-
Small workshops and garages
-
Domestic or light repair tasks
-
Material handling for small fabrication setups
-
Loading and unloading light equipment
-
Hoisting objects in storage or warehouse areas
Note: This product is designed strictly for light-duty use only and is not suitable for carrying or lifting people
Why Choose VOLTZ VZ-EH-1500?
-
Compact, durable, and efficient design
-
Easy installation and low maintenance
-
High-performance copper motor for reliable power
-
Built-in safety features for secure operation
-
Perfect for home, workshop, and light-duty lifting needs
The VOLTZ VZ-EH-1500 Mini Electric Hoist offers the perfect balance of performance, safety, and convenience — making it one of the most dependable choices for small-scale lifting applications.
