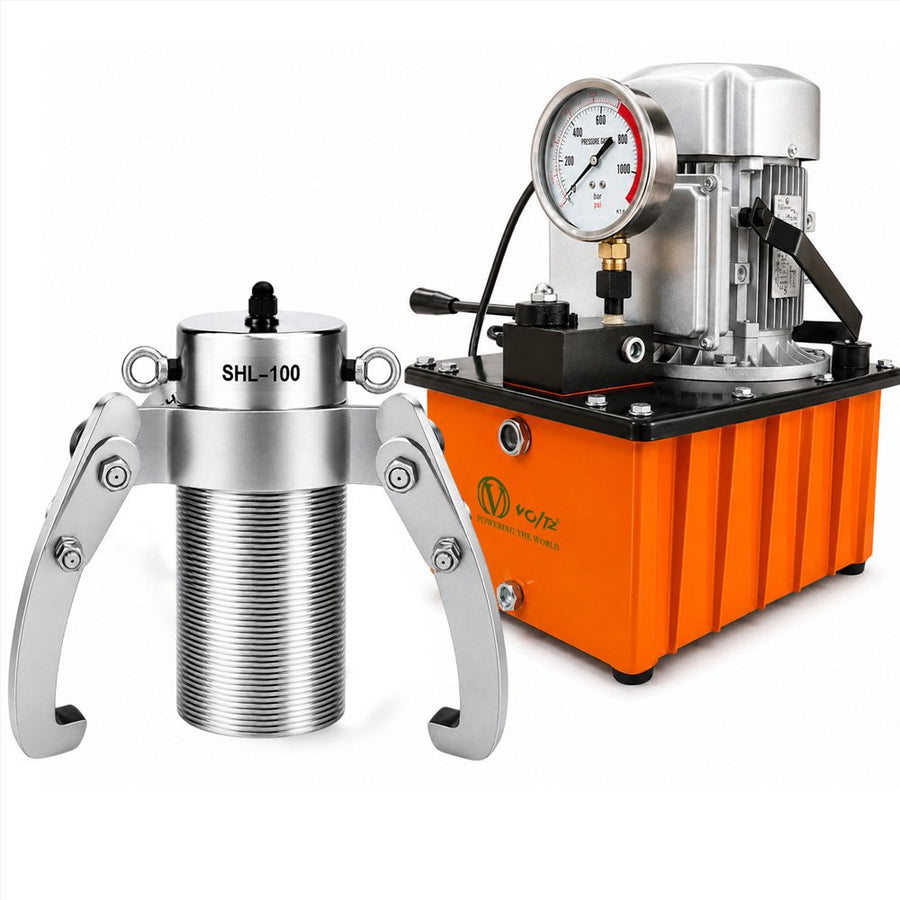

The VOLTZ VZ-SHL-100T Hydraulic Hollow Puller Kit, paired with the VZ-HB-75 Electric Hydraulic Hand Pump, is a heavy-duty industrial hydraulic solution designed for safe, precise, and efficient removal of bearings, gears, pulleys, couplings, bushes, and other press-fitted components. With a massive 100 Ton (220,462 lbs Approx.) pulling capacity, this system delivers exceptional power for demanding industrial maintenance and machinery servicing applications. The complete hydraulic puller kit has a net weight of 110 kg.

The VZ-SHL-100T Hydraulic Hollow Cylinder is manufactured from high-strength alloy steel, ensuring maximum durability, stability, and long operational life. It features a maximum stroke of 80 mm, a working spread range of 280–650 mm, and operates at a maximum working pressure of 70 MPa, making it suitable for a wide range of heavy-duty industrial tasks. The compact cylinder size of approximately 230 × 140 mm allows easy positioning even in tight working spaces.

The system is powered by the VZ-HB-75 Electric Hydraulic Hand Pump, which operates on a 220V / 50Hz power supply. It delivers stable hydraulic pressure for smooth, controlled, and efficient operation, significantly reducing manual effort and improving productivity. The complete hydraulic puller kit has a net weight of 110 kg. The pump comes in a robust housing with dimensions of approximately 40 × 25 × 40 cm, ensuring durability, stability, and reliable performance in continuous industrial use.

Together, this hydraulic puller kit offers powerful performance, precision control, and industrial-grade reliability, making it ideal for use in manufacturing plants, heavy engineering workshops, mining operations, railways, power plants, steel industries, and industrial maintenance facilities.

? Key Features

• Massive 100 Ton Pulling Capacity: Delivers up to 100 Ton (220,462 lbs Approx.) force for safe and efficient removal of bearings, gears, pulleys, couplings, and other press-fitted components.
• Heavy-Duty Hydraulic Hollow Puller (VZ-SHL-100T): Built from high-strength alloy steel for extreme durability, stability, and long service life in industrial environments.
• Powerful Electric Hydraulic Pump (VZ-HB-75): Operates on 220V / 50Hz supply, providing consistent hydraulic pressure for smooth and controlled operation.
• 80 mm Maximum Stroke: Ensures effective pushing and pulling range for a wide variety of heavy industrial applications.
• Adjustable Working Spread (280–650 mm): Flexible jaw range allows compatibility with different machinery sizes and components.
• High Working Pressure (70 MPa): Designed for high-pressure industrial applications, ensuring maximum performance and reliability.
• Net Weight: 110 kg: Heavy-duty construction provides enhanced stability and durability for demanding industrial applications.
• Industrial Grade Application Range: Ideal for use in manufacturing plants, heavy engineering, mining, railways, power plants, steel industries, workshops, and maintenance operations.
