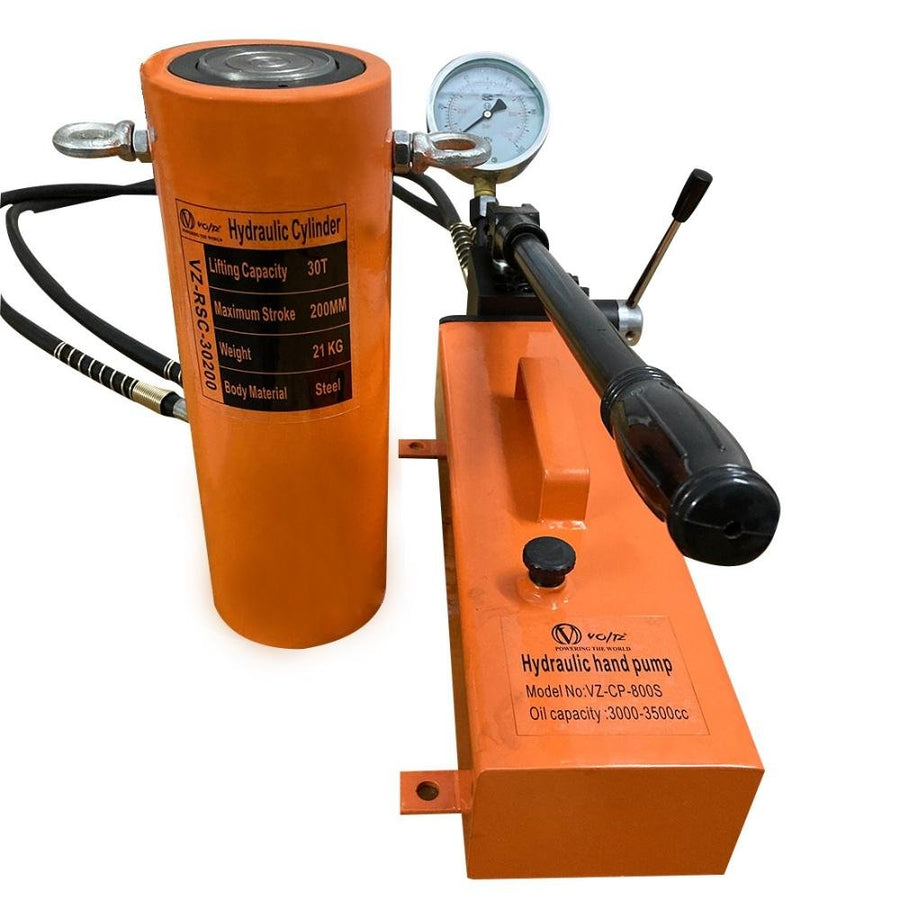

VOLTZ RSC-30200 with VZ-CP-800S Hand Pump 30T 8" Stroke Solid Hydraulic Cylinder Jack Double Acting Specification: Capacity: 30Ton Ram stroke: 200mm/8in , Self Height - 305mm/12.2" ,Total Height with stroke : 505mm/20.1in Outside Diameter: 110mm/4.5in , Cylinder diameter :- 70mm , Inner Diameter: 60mm/2.5in Item Weight: 21 kg Feature Made of solid metal construction, designed for long-lasting use Max capacity up to 30ton Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment VOLTZ Hand Pump

1.Technical Data : Model: VZ-CP-800 with pressure gauge (Double acting Manual Pump)

2.Oil storage capacity: 3000cc

3.High pressure: 70kg mpa ,

4.Low pressure : 20 Mpa ,

5.Standard oil pipe : 1.9mtr long

6.Net weight / gross weight: 21Kg / 22Kg

About this item

• MAX CAPACITY--30 Ton lifting capacity with a stroke of 8" (200mm)
• SIZE--Total Height with stroke : 505mm, Outside Diameter: 110mm ,Inner Diameter: 60mm
• HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
• Hand Pump Model: VZ-CP-800 (Hand Pump) Oil storage capacity: 3000cc High pressure: 70kg mpa , Low pressue : 20 Mpa
• GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop
