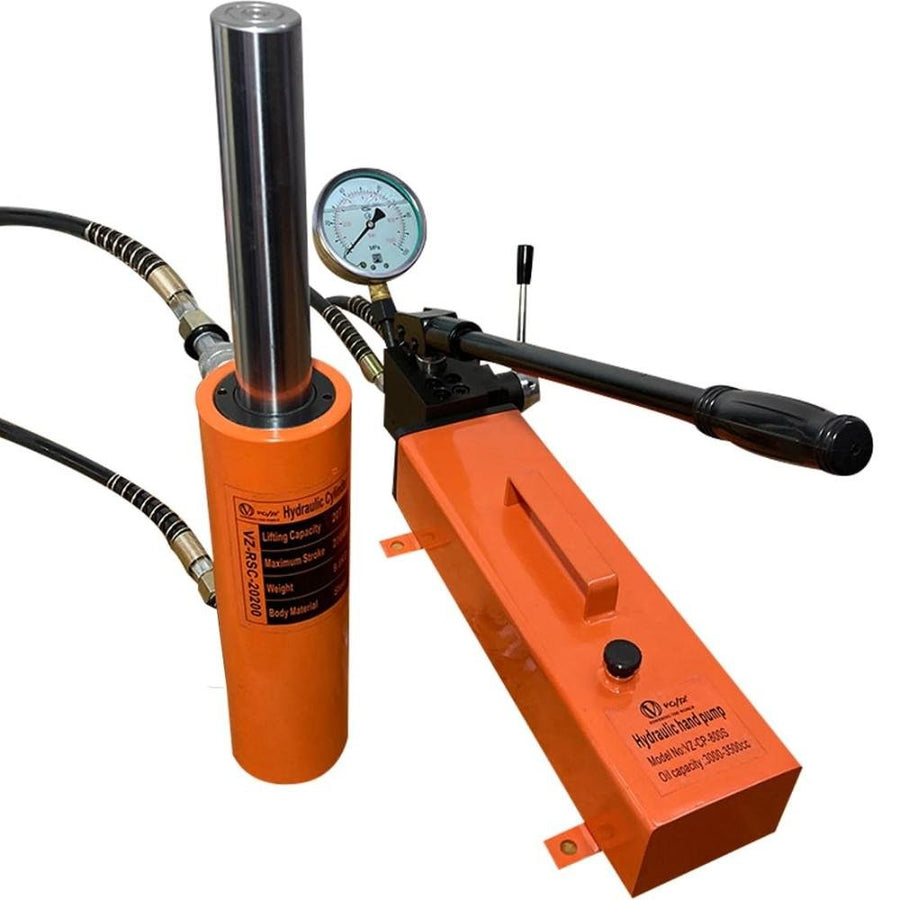

VOLTZ RSC-20200 with VZ-CP-800S Hand Pump 20T 8" Stroke Solid Hydraulic Cylinder Jack Double Acting

Specification:

1. Capacity: 20Ton

2. Ram stroke: 200mm/8in

3. Self Height - 300mm/12"

4. Total Height with stroke : 500mm/20in

5. Outside Diameter: 80mm/3.2in

6. Inner Diameter: 50mm/2in

7. Item Weight: 9.9kg

FEATURES :-  Made of solid metal construction, designed for long-lasting use Max capacity up to 20ton Can be operated with kinds of pumps: manual pump, foot pump or electric pump A great helper for riggers, fabricators, welders, and automotive body and frame shop Ideal for bending, straightening and pulling on trucks, tractors and heavy equipment

VOLTZ Manual Pump Technical Data :

1. Model: VZ-CP-800 with prssure guage (Double acting Manual Pump)

2. Oil storage capacity: 3000 - 3500 cc

3. High pressure: 70kg mpa

4. Low pressue : 20 Mpa

5. Standard oil pipe : 1.9mtr long

6. Net weight / gross weight: 21Kg / 22Kg

About this item

• MAX CAPACITY--20 Ton lifting capacity with a stroke of 8" (200mm)
• SIZE--Total Heightwith stroke : 500mm, Outside Diameter: 80mm ,Inner Diameter: 50mm
• HEAVY DUTY--Made of solid metal construction, designed for long-lasting use
• Hand Pump Model: VZ-CP-800 (Hand Pump) Oil storage capacity: 3000cc High pressure: 70kg mpa , Low pressue : 20 Mpa
• GREAT HELPER-- A great helper for riggers, fabricators, welders, and automotive body and frame shop
