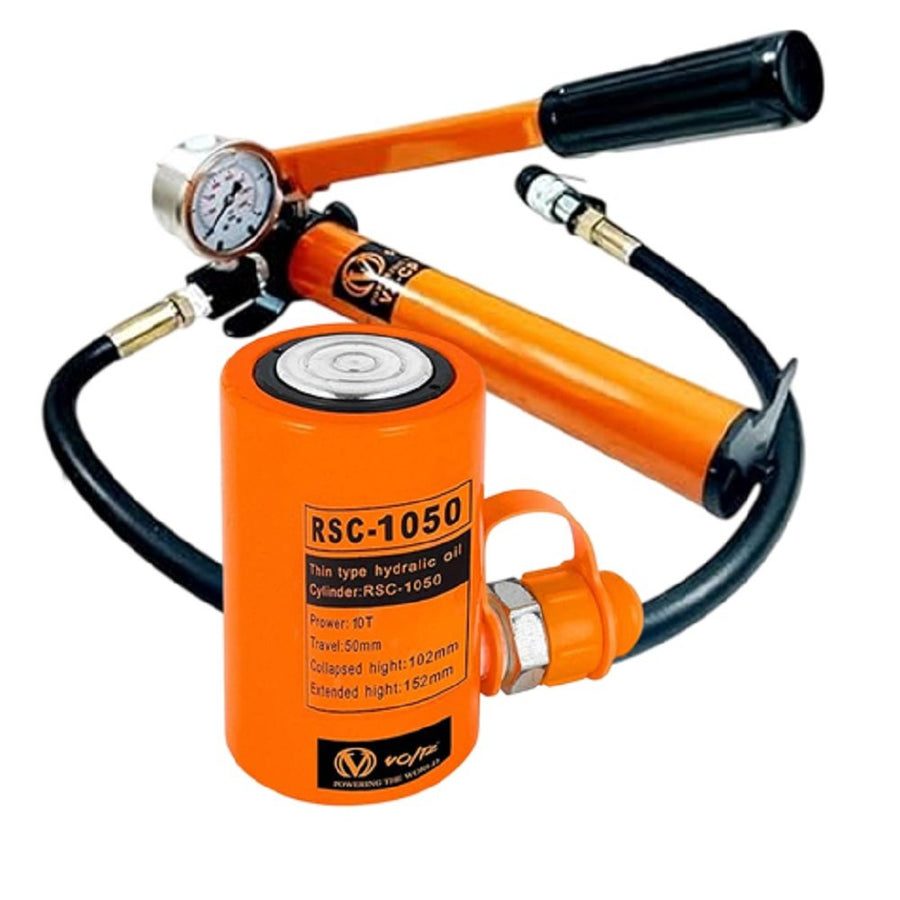

VOLTZ RSC-1050180B Hydraulic cylinders 10T 2Inch Stroke Hydraulic Cylinder Jack Solid with Hand pump Single Acting Hydraulic Ram Cylinder 50mm Hydraulic Lifting Cylinders (10T 2Inch)

The VOLTZ RSC-1050180B 10-Ton Hydraulic Cylinder Jack with Hand Pump | 2-Inch Stroke is a durable and reliable lifting solution designed for a wide range of industrial and professional applications. This single-acting hydraulic cylinder combines robust construction with precision engineering, making it an essential tool for heavy-duty tasks.

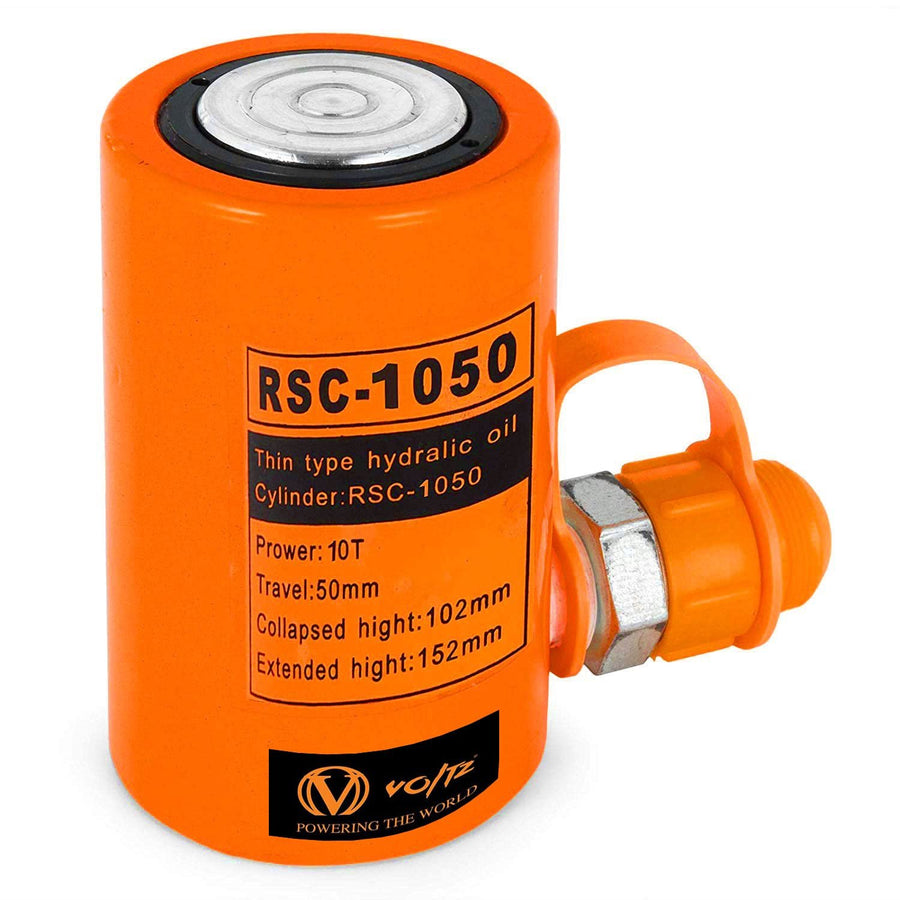

Specifications:

1. Model: VOLTZ RSC-1050180B
2. 10 tons (22,000 pounds) of capacity
3. Length of Stroke: it 2 inches (50 mm)
4. Height in total: 4 inches (100 mm)
5. Width outside: 2.3 inches (60 mm)
6. 1.8 inches (45 mm) is the inner size.
7. 15.89 cm² (2.5 square inches) is the active area.
8. 2.5 kg (5.5 lbs) in weight

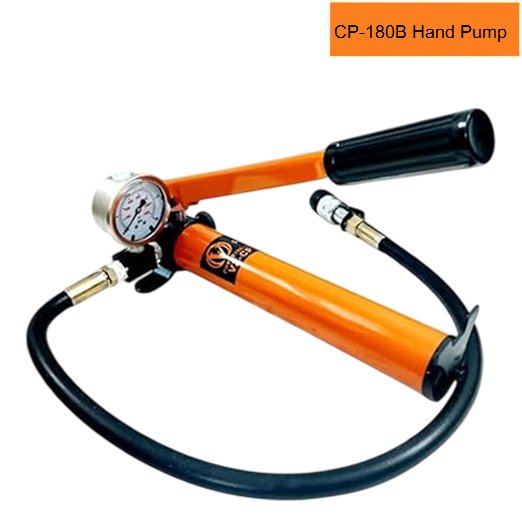

Hand Pump Pressure Gauge Technical Data (CP-180B):

1. Oil Storage Capacity: 400cc
2. High Pressure: 60kg/cm²
3. High-Pressure Flow: 20cc
4. Weight (Net/Gross):  4.5k



Features:-

Tough Construction: This hydraulic cylinder has a maximum capacity of 10 tons and is made of solid metal for long-lasting performance.

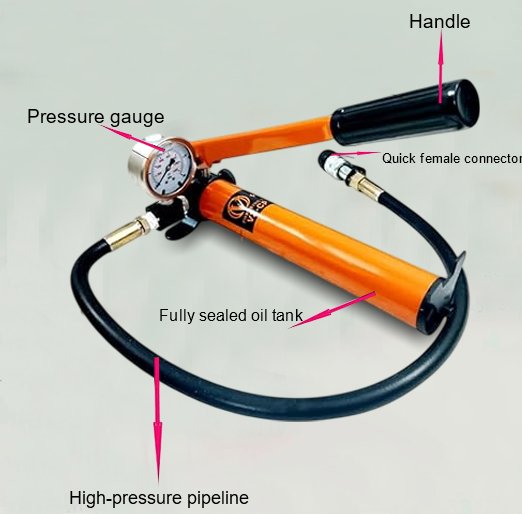

Manual hydraulic pump consists of ZG3/8 connector, hydraulic pump body, anti-slip handle, oil return switch and oil hose. Optional a pressure oil gauge, real-time observation of pressure changes, not easy to explode the pump. The non-slip grip allows for optimal comfort during use and ensures a firm grip at all times. You can operate it smoothly and efficiently, enhancing safety and ease of use.

An great selection of hydraulic cylinder types For a wide range of business needs, this single-acting hydraulic cylinder is an adjustable instrument.

Whether you're in need of a compact lifting tool or a powerful solution for demanding tasks, the VOLTZ RSC-1050180B Hydraulic Cylinder Jack with Hand Pump delivers reliable results every time. For more extensive projects, consider our range of double-acting hydraulic cylinders and accessories.
